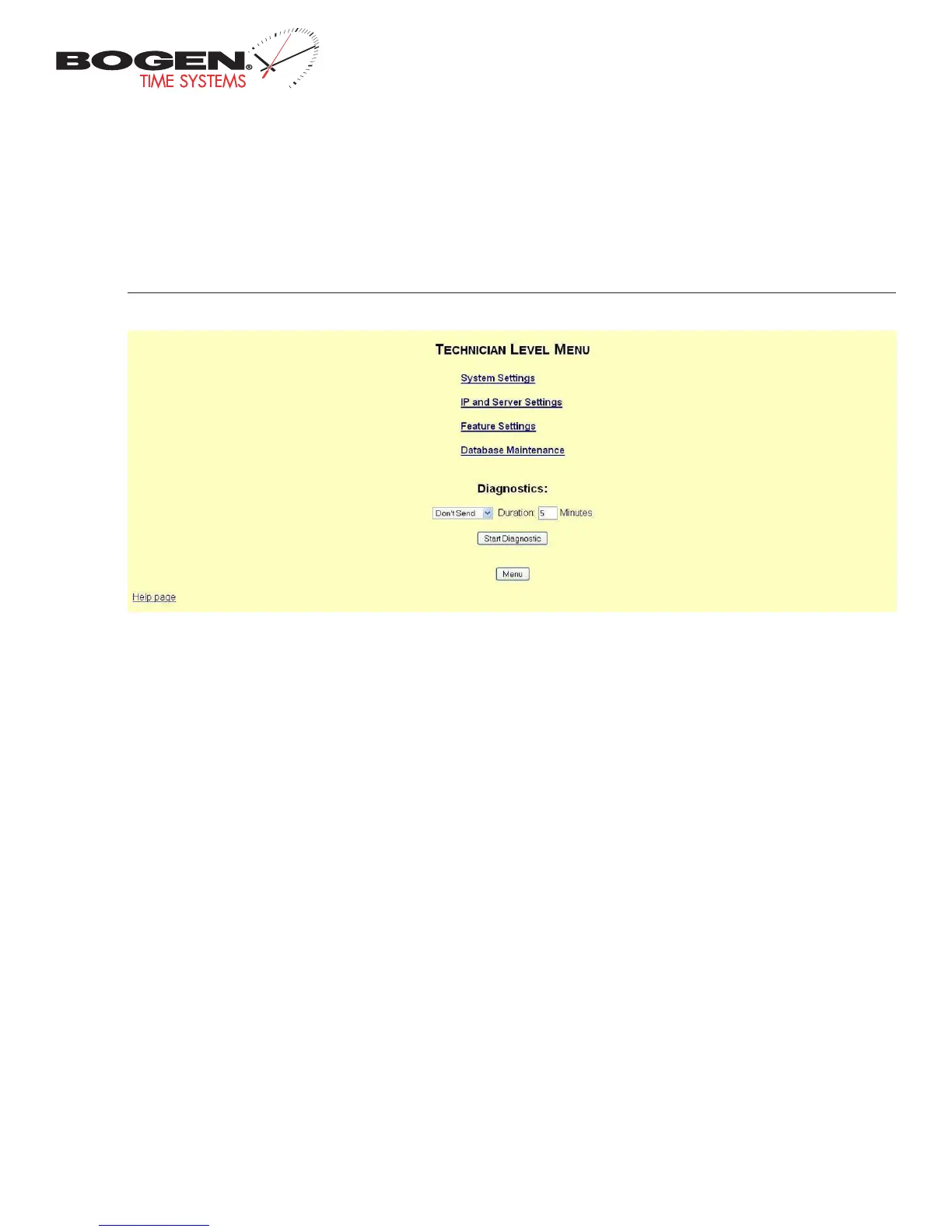

Web Interface Programming
Technician Level Menu
q
System Settings This link, when clicked, will enter the System Settings pages. These pages include the user password, the RS485
data rate, setting the offset, the input selection, setting Clock #1 and Clock #2 sync-wire protocol outputs and resetting the unit back to
manufacturer’s default settings.
w
IP Settings This link, when clicked, will enter the IP Settings pages. These pages include setting the IP address, gateway, subnet mask,
DNS, DHCP configuration, setting the NTP servers, as well as displaying the status of the device.
e
Feature Settings This link, when clicked, will enter the Feature Settings pages. These pages include setting the display format in 12 or 24
hour mode, enabling or disabling Daylight Savings Time and editing the standard durations for each zone.
r
Database Maintenance This link, when clicked, will bring the user to the Database Maintenance section. This is where all of the events
and schedules can be saved and backed up. Saved events and schedules can also be downloaded in this section.
t
Diagnostic This drop-down list allows the user to send the appropriate diagnostics to the analog clocks via RS485 (BCRM) or 2 wire digital
communication (BCAM). See the analog clock’s manual for descriptions of each diagnostic.
y
Duration This field is where the user can select how long (in minutes) that the user wants the diagnostic to display on the face of the clock.
u
Start Diagnostic This button, when pressed, will start the selected diagnostic.
i
Menu This button, when pressed, will bring the user back to the main menu.
q
w
e
r
t y
u
i
