Infrared Interface
Infrared control over IP allows an IR controller to remotely control a device via the Dante network. The encoder
equipped with 3.5mm jacks for infrared control over IP, above is TX and below is RX.
This function needs to work together with the Dante AV decoder.
How to setup
• Connect the IR transmitter to the IR TX port located on the encoder’s front panel
• Connect the IR receiver to the IR RX port located on the decoder front panel
• Using the Dante Controller, subscribe IR channel on the encoder to IR channel on the decoder. (In this
instance, the IR signal is being passed from the decoder across the network to the encoder.) //Should
verify the TX and RX phrasing

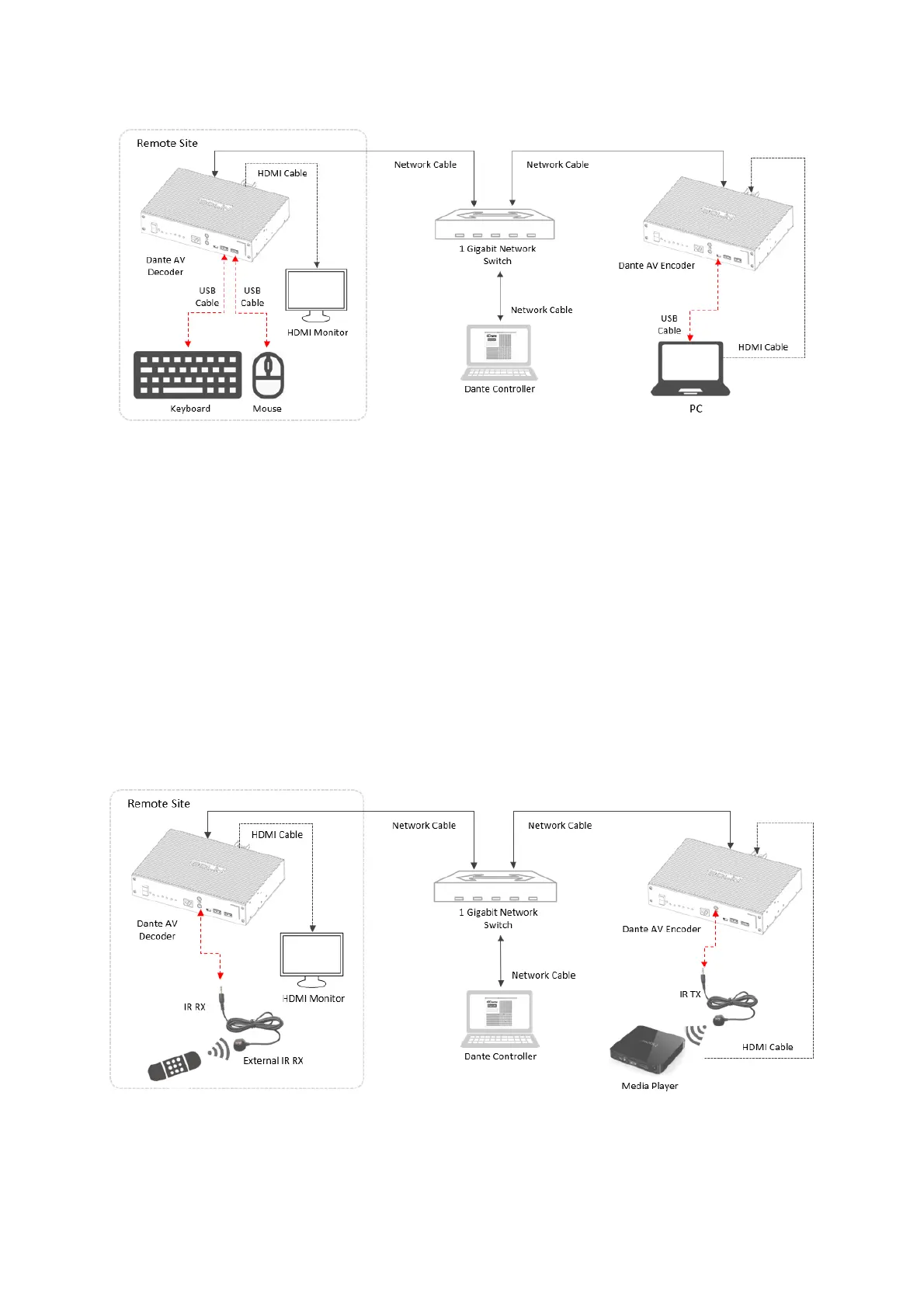

The diagram below illustrates the example setup described above.
