100

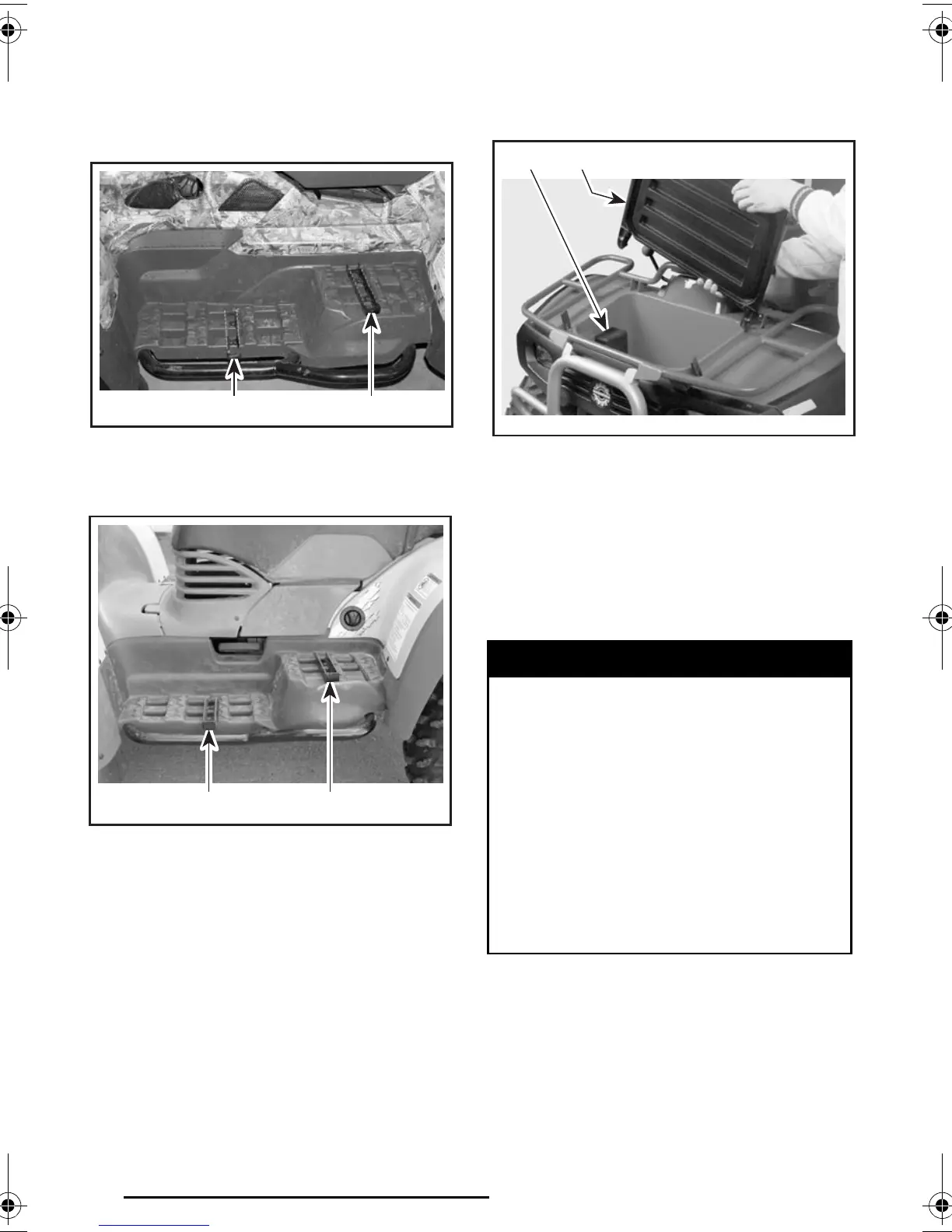

17) Footpeg
Quest MAX and Traxter MAX Series
Located on footrest. Use this area to
keep your feet stable.
QUEST MAX SERIES
1. Driver’s footpeg
2. Passenger’s footpeg
TRAXTER MAX SERIES
1. Driver’s footpeg
2. Passenger’s footpeg
18) Storage Compartment
Quest MAX and Traxter MAX Series
Located in front of vehicle. Convenient
location to carry personal articles such
as an a helmet, spare spark plugs, first
aid kit, etc. Unlatch cover, gently lift
then remove cover.
The compartment is equipped with a
drain plug under the tool box. Remove
plug to allow draining when necessary.
Reinstall plug when finished.
TYPICAL
1. Removing cover
2. Tool box
It also contains this Operator’s Guide
and an ATV Winch Operator’s Manual
(XT models) which should be kept in
a waterproof bag and remain with the
vehicle at all times.
V04A0RY 21
V01A43Z
1 2
WARNING
When engine is running, always
engage the PARK position on the
transmission lever before open-
ing cover. Never leave any heavy
or loose breakable objects in the
storage basket. Always latch cov-
er before riding. If storage cover is
removed to provide greater carry-
ing area, ensure that cargo is se-
cured and will not “fly out” when
riding at speed on rough terrain.
Slow down.
V01L07Y
12
vmo2004_011a.book Page 100 Thursday, May 15, 2003 1:46 PM
