87
NOTE: Using the rear brake will have
also an effect on front wheels because
they are interconnected through the
drive train. As on other wheeled vehi-
cles, the vehicle weight is transferred
to the front wheels when braking. To
obtain greater stopping efficiency, the
brake system distributes more braking
force to the front wheels. This will af-
fect vehicle handling and steering con-
trol when braking vigorously. Take it
into account when braking.

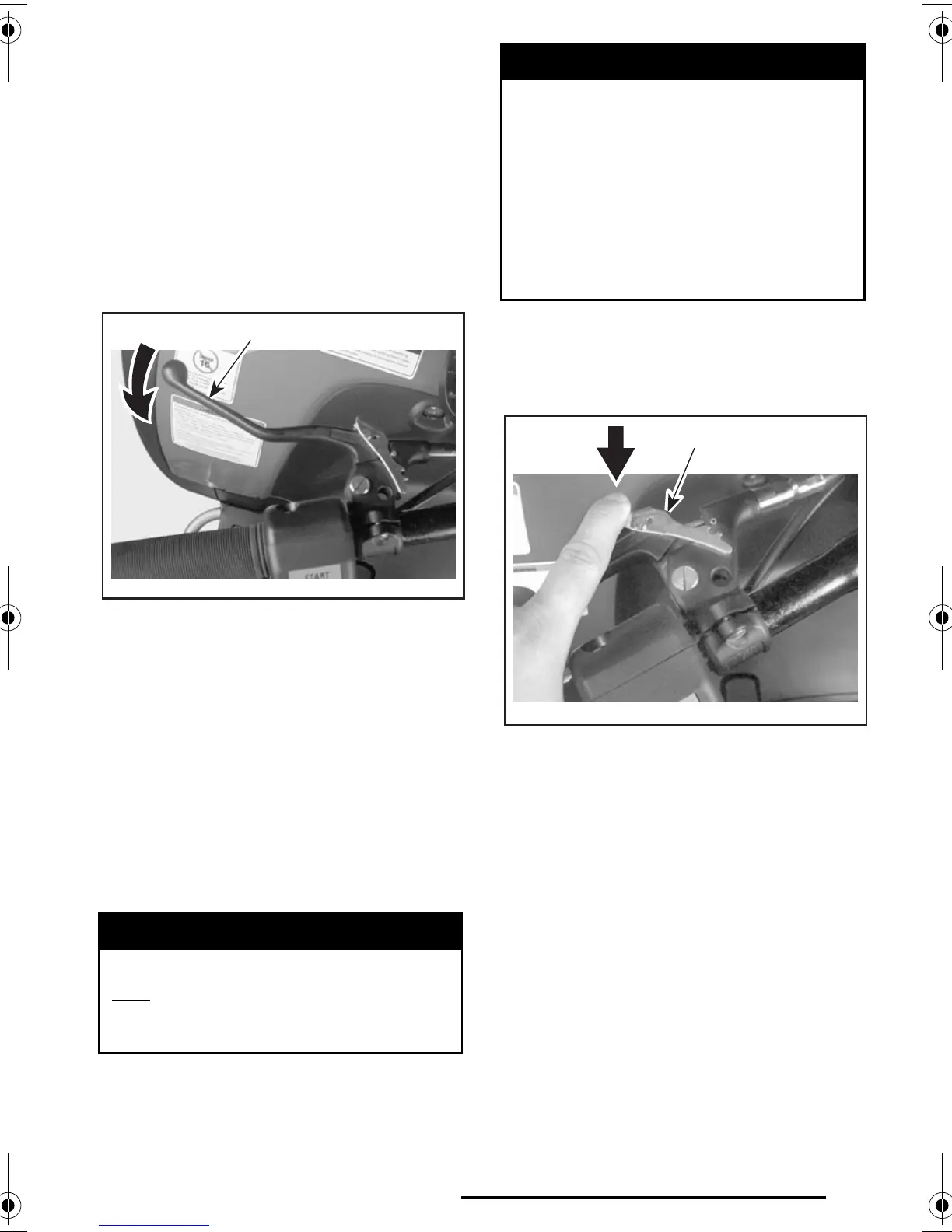

TYPICAL
1. Brake lever
2. To apply brake
4) Brake Lever Lock
Quest MAX and Traxter MAX Series
Located on left side of handlebar on
the rear brake lever. When applied, it
prevents the vehicle from moving.
Useful when the brake needs to be
locked for example such as doing a K-
turn, during transportation or when the
vehicle is not in operation.
To engage mechanism: Squeeze
brake lever and maintain while moving
lever lock. Brake lever is now com-
pressed and applying rear brakes.
TYPICAL
1. Brake lever lock
2. Press to apply parking brake
To release mechanism: Squeeze brake
lever. Lever lock should automatically re-
turn to its original position. Brake lever
should return to rest position. Always re-
lease brake lever lock before riding.
WARNING
Always use the brake lever lock
and engage the PARK position on
the transmission lever when the
vehicle is not in operation.
V01I04Y
1
2
WARNING
Make sure brake lever lock is fully
disengaged before operating the
ATV.
When you ride the vehicle, brakes
that are caused to drag by a con-
tinuous pressure on the lever may
cause damage to the brake sys-
tem and cause loss of braking ca-
pacity and/or fire.
V01I05Y
1
2
vmo2004_011a.book Page 87 Thursday, May 15, 2003 1:46 PM
