19) Tool Box
Quest MAX and Traxter MAX Series
The tool box is located in the storage
compartment and it contains tools for
basic maintenance.
The tools included in the tool box are:
– pliers (1)
– screwdriver (1)
– open wrench 10/13 mm (1)
– open wrench 15/17 mm (1)
– socket wrench 10/13 mm (1)
– socket wrench 16/18 mm (1)
– tire pressure gauge (1)
– Allen key 3 mm (1)
– fuse 30 A (1)
– fuse 20 A (1)
– fuse 15 A (1).

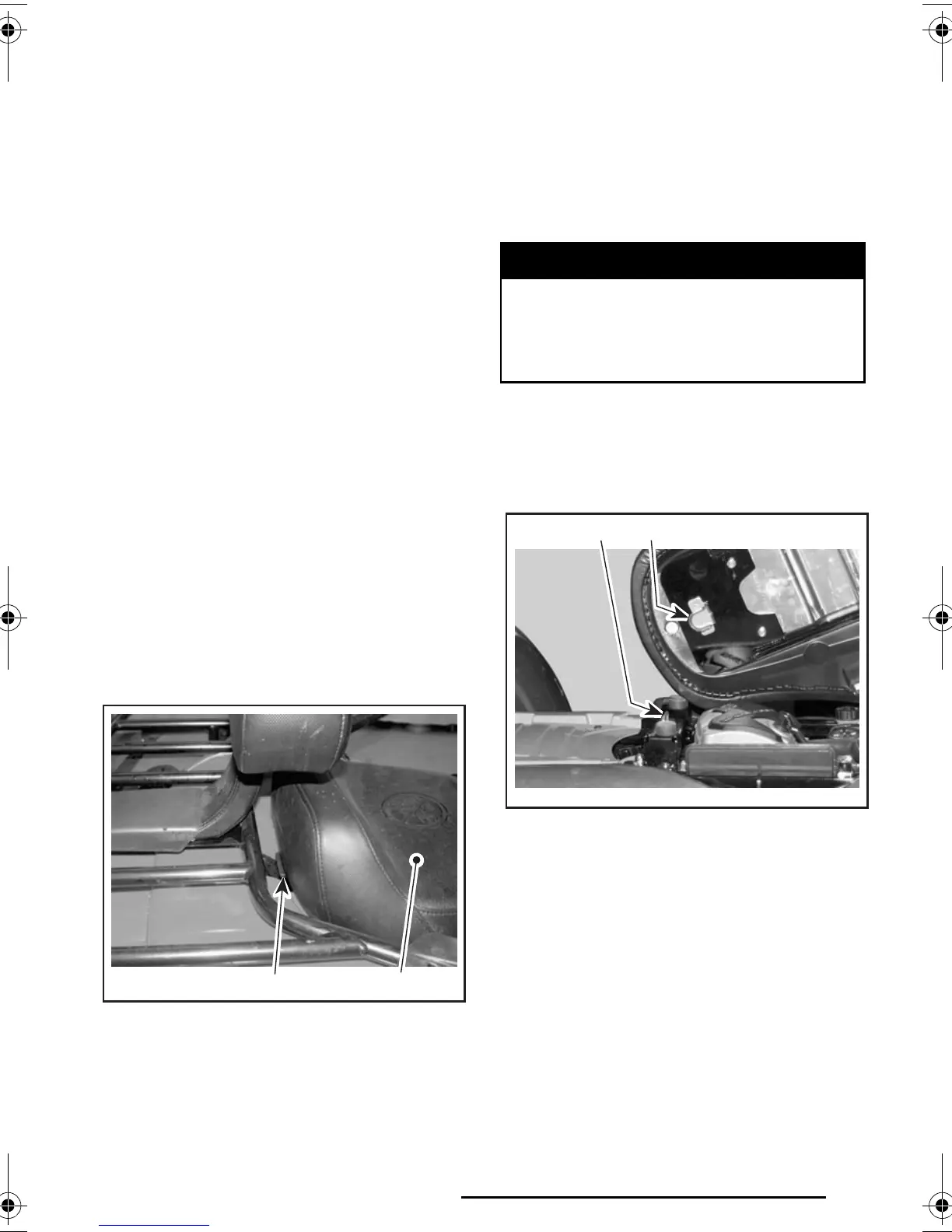

20) Seat Latch
Located underneath rear end of seat.
It allows the removal of seat to give
access to engine compartment.
Quest MAX and Traxter MAX Series
1. Seat
2. Seat latch
Seat Removal
Quest MAX and Traxter MAX Series
Pull latch upward while gently lifting
rear of seat. Continue lifting movement
until you can release the front retaining
devices then completely remove seat.
Seat Installation
Quest MAX Series
Insert front tab of seat into frame hook.
When seat rests in its position, firmly
push seat down to latch.
1. Insert this tab in hook
2. Hook
V01A5AY
2
1
WARNING
Periodically verify the seat lock
pin and tighten if needed. Make
sure seat is securely latched be-
fore riding.
V04L02Y
2
1
