128
Remove oil strainer cover and oil col-
lector, located near drain plug, then
clean oil strainer.

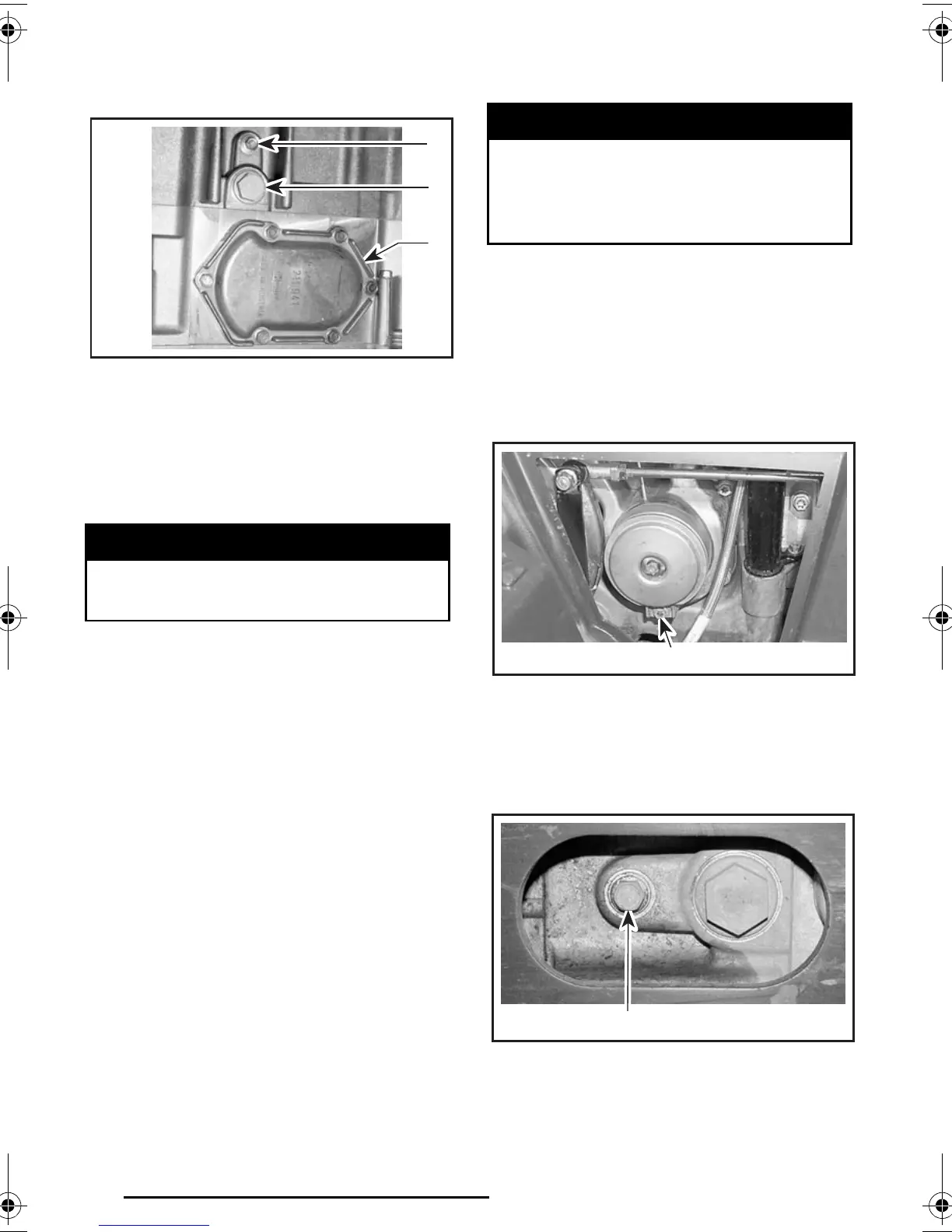

1. Oil strainer cover
2. Oil plug
3. Coolant plug
Quest MAX and Traxter MAX Series
To clean oil strainer, use a solvent then
dry with compressed air.
Reinstall oil strainer, oil collector and oil
strainer cover.
Change gasket on drain plug. Clean
gasket area on engine and drain plug
then reinstall plug. Refill engine at the
proper level with the recommended oil.
Refer to SPECIFICATIONS for capacity.
Start engine and let idle for a few min-
utes. Ensure oil filter area and drain
plug areas are not leaking.
Stop engine. Wait a while to allow oil
to flow down to crankcase then check
oil level. Refill as necessary.
Dispose of oil as per your local environ-
mental regulations.
Coolant Replacement
Quest MAX and Traxter MAX Series
Turn the radiator cap counterclockwise
and remove it.
On Quest MAX series, remove the
skid plate under vehicle, the RH side
panel and the door in the footrest.
Remove the drain plug and drain the
coolant into a suitable container.
QUEST MAX SERIES — UNDER OIL FILTER
COVER
1. Cooling drain plug
NOTE: Do not unscrew the drain plug
completely.
TRAXTER MAX SERIES — UNDER ENGINE
1. Cooling drain plug
WARNING
Always wear eye protection and
gloves.
V01C2QY
3
2
1
WARNING
To avoid burning yourself, do not
remove the radiator cap or loosen
the engine drain plug if the engine
is hot.
V04L1LY
1
V01C3SZ
1
vmo2004_011a.book Page 128 Thursday, May 15, 2003 1:46 PM
