138

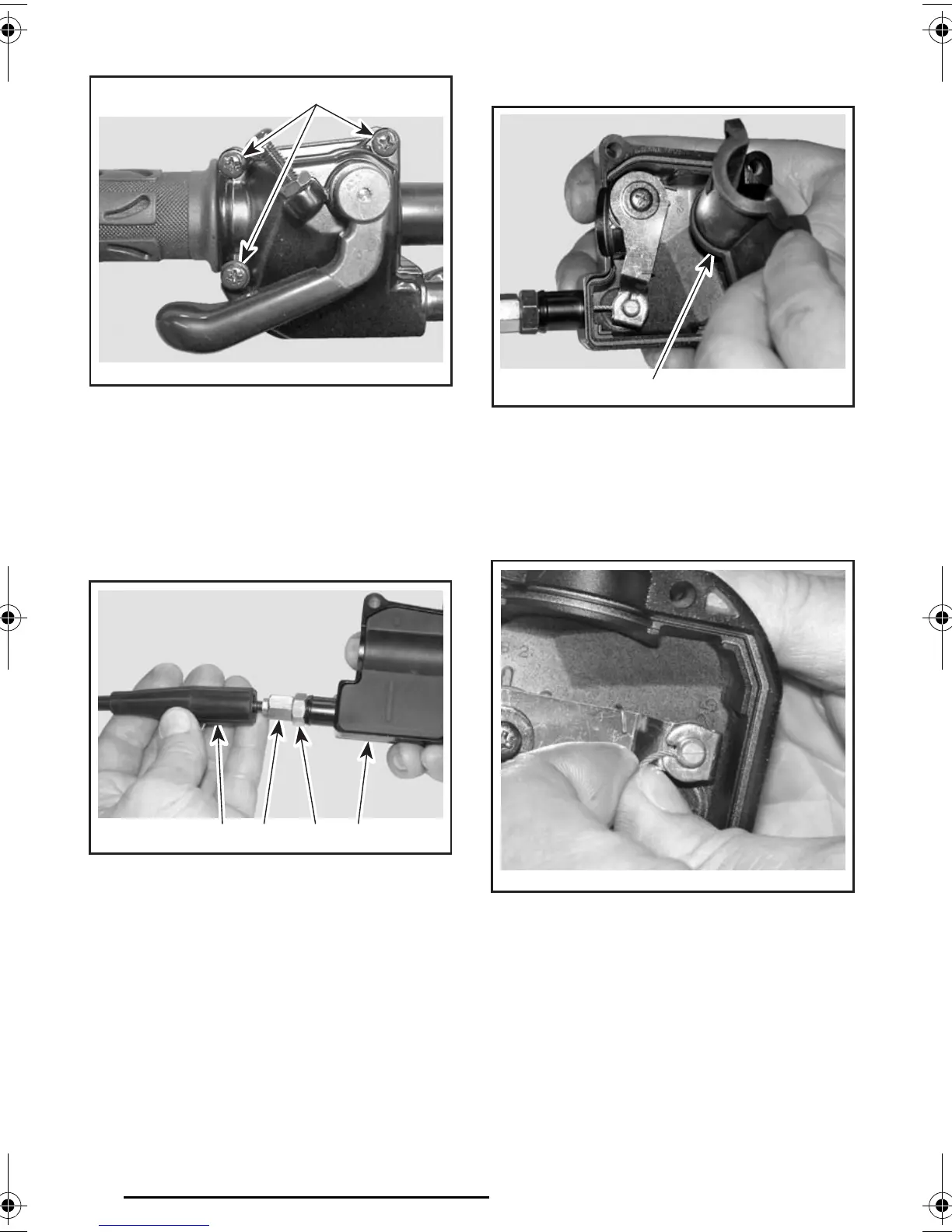

Open the throttle lever housing.
1. Remove these screws
Separate the housing. Slide rubber
protector back to expose throttle cable
adjuster.
Unscrew the locking nut of the cable
adjuster then screw in the adjuster to
release the cable tension.
1. Cable protector
2. Throttle cable adjuster
3. Lock nut
4. Throttle lever housing
Remove:
– inner housing protector
1. Inner housing protector
– the cable from the throttle lever hous-
ing.
NOTE: Slide cable in clip slot and re-
move the end of cable from clip.
V07I0FY
1
4
V07I0GY
321
V07I0HY
1
V07I0IY
vmo2004_011a.book Page 138 Thursday, May 15, 2003 1:46 PM
