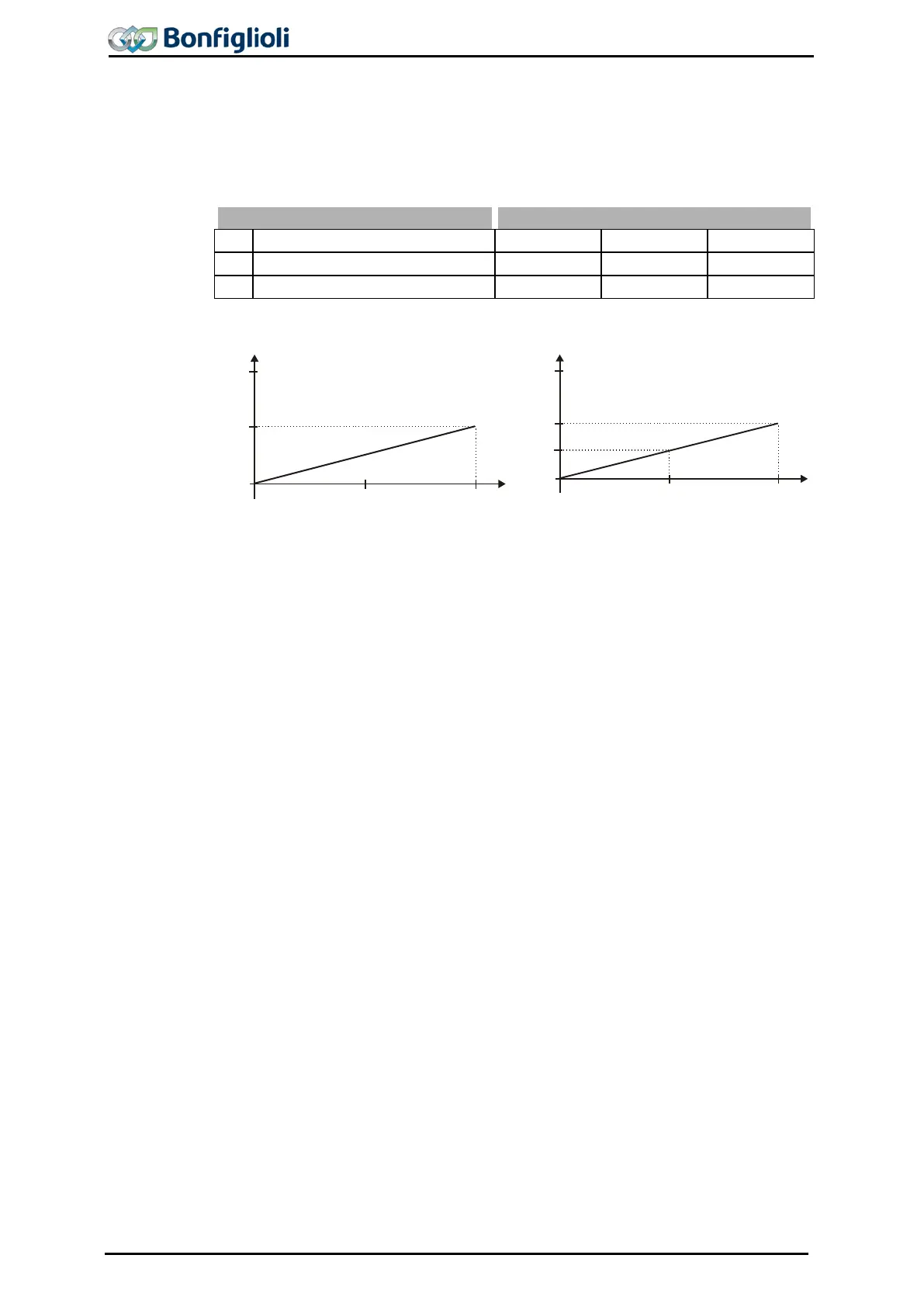

15.2.1.1 Output Characteristic
The voltage range of the output signal at multifunction output 1 can be adjusted. The
value range of the actual value selected via parameter Analog operation 553
is
assigned to the value range of the output signal which is adjusted via the parameters
Voltage 100% 551 and Voltage 0% 552.
Parameter Settings
No. Description Min. Max. Fact. sett.
551 Voltage 100% 0.0 V 22.0 V 10.0 V
552 Voltage 0% 0.0 V 24.0 V 0.0 V
Analog Operation 553 with abs. act.
value:
Analog operation 553 with signs:
0V
+10V
+24V
50%
0%
100%
0V
+5V
+24V
0%
-100%
100%
+10V
With the parameters Voltage 100% 551 and Voltage 0% 552, the voltage range at
100% and 0% of the output parameter is set. If the output value exceeds the refer-
ence value, the output voltage also exceeds the value of the parameter
Voltage
100% 551 up to the maximum value of 24V.
