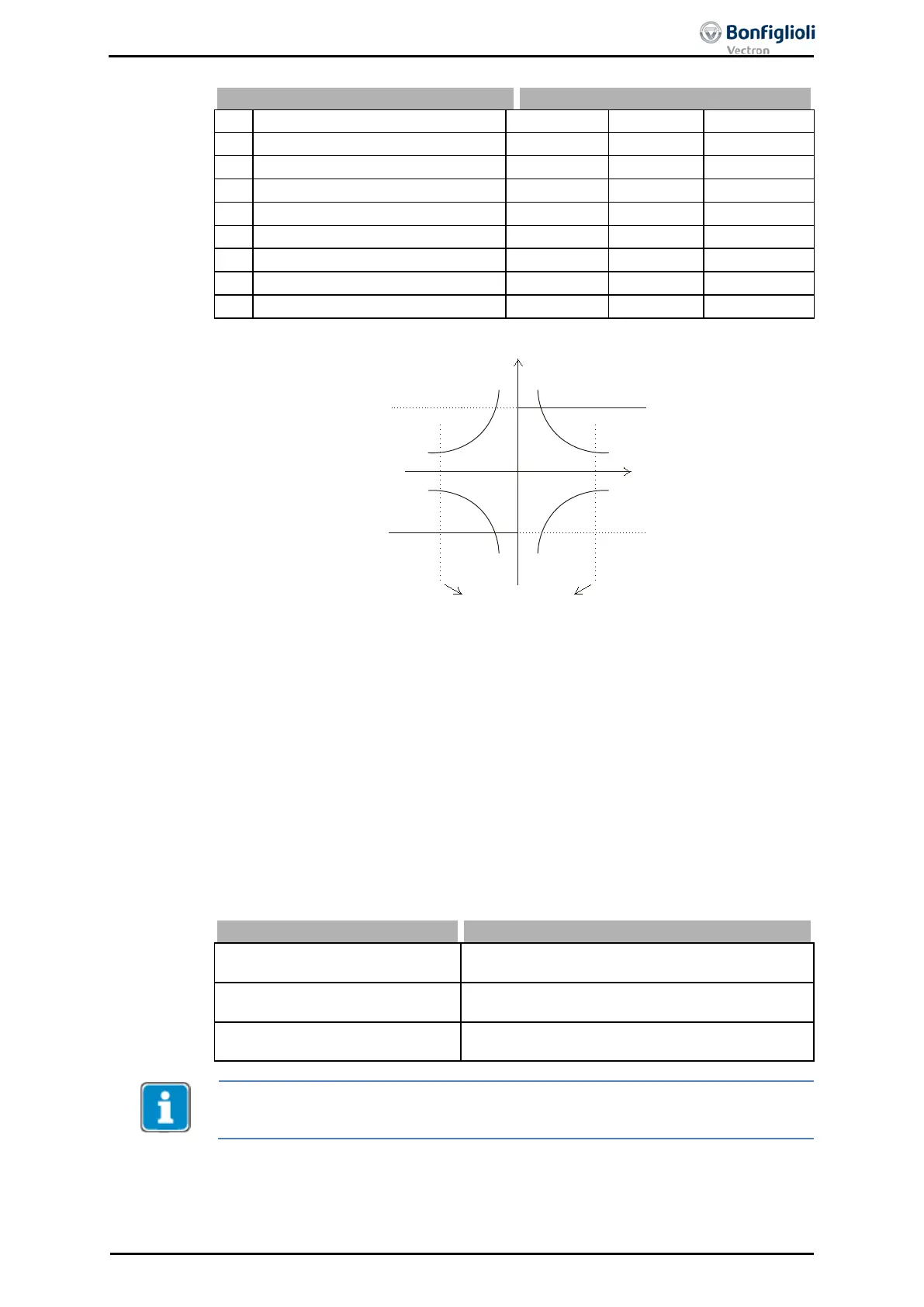

Parameter
Settings
No.
Description
Min.
Max.
Fact. sett.
728 I limit 0.0 A ü
⋅
I
FUN
ü
⋅
I
FUN
729 Current limit generator operation -0.1 A ü ⋅ I
FUN
ü ⋅ I
FUN
730 Torque limit 0.00 % 650.00 % 650.00 %
731 Torque limit generator operation 0.00 % 650.00 % 650.00 %
732 P comp. torque upper limit 0.00 % 650.00 % 100.00 %
733 P comp. torque lower limit 0.00 % 650.00 % 100.00 %
739 Power Limit 0.00 kW 2⋅ü⋅P
FUN
2⋅ü⋅P
FUN
740 Power limit generator operation 0.00 kW 2⋅ü⋅P
FUN
2⋅ü⋅P
FUN
17.5.4.2 Limit Value Sources
As an alternative to limiting the output values by a fixed value, linking to an analog
input value is also possible. The analog value is limited via parameters Minimum
reference percentage
518 and Maximum reference percentage 519
, but does not
consider the Gradient percentage ramp 477 of the reference percentage value chan-
nel.
The assignment is done with the help of the parameters Isq limit source motor op-
eration
734 and Isq limit source generator operation 735 for the torque-
forming
current component Isq.
The sources for the torque limits can be selected via the parameters Torque limit
source, motor op. 736 and Torque limit source generator op. 737.
Operation mode 736, 737
Function
101 - Analog input MFI1A
The source is the multifunctional input 1 in ana-
log Operation mode 452.
105 -
Repetition frequency input
(F3)
The frequency signal on the repetition frequency
input corresponding to
Operation mode
496.
110 - Fixed limit
The selected parameter figures for limiting the
speed controller are taken into account.
The limit values and assignment to different limit value sources are data set related in
the configurations. The use of the data
record change-
over demands an examination
of the parameters in question.
motor
motor
generator
generator
Torque Limit 730
Torque Limit 730
Torque Limit Generator
Operation
731
Torque Limit Generator
Operation
731
M
n
Anticlockwise
operation
Clockwise
operation
Speed is limited by
Maximum Frequency 419
06/13 Operating Instructions ACU 235
