BONFIGLIOLI ACTIVE Cube ACU 401-25 User Manual

Parameter
Settings
No. Description Min. Max. Fact. sett.
441
Fixed Frequency
-999.99 Hz
+999.99 Hz
0.00 Hz
442
Max. P-Component
0.01 Hz
999.99 Hz
50.00 Hz
443 Hysteresis 0.01 % 100.00 % 10.00 %
444 Amplification -15.00 +15.00 1.00
445 Integral Time 0 ms 32767 ms 200 ms
446 Ind. Volume Flow Control Factor 0.10 2.00 1.00
618 Derivative Time 0 ms 1000 ms 0 ms

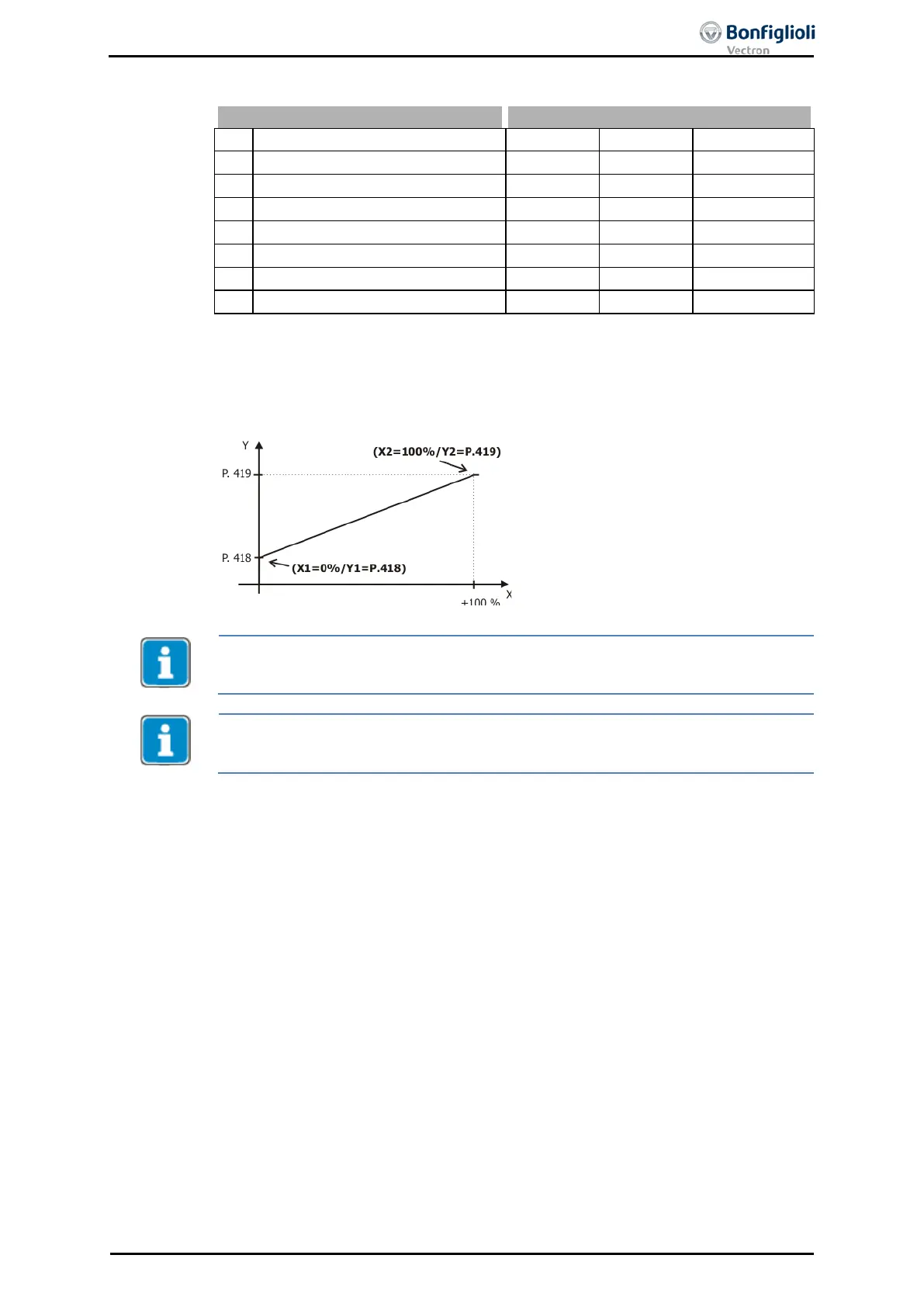

In modes 1,2,3 and 5, the output frequency is shifted along the ordinate axis to the
Minimum Frequency 418. The percentage of the technology controller output value
corresponds to:
0 % = Minimum Frequency 418
100 % = Maximum Frequency 419
The parameterization of the technology controller in the individual data sets enables
an adaptation to various operating points of
the application with the data set change
-
over via control contacts.
The technology controller operates in motor clockwise operation. The direction of rota-
tion can be changed via parameter
Change Sense of Rotation 1199
. Refer to chapter
10.2.8 „Change sense of rotation“.
06/13 Operating Instructions ACU 219
