Operation mode speed controller, parameter
Operation mode
440 = 4
This operation mode is suited for speed controls with an analog actual value trans-
mitter (e.g. analog speedometer via analog input or HTL encoder via frequency in-
put).
The motor is accelerated or decelerated according to the control deviation.
The output frequency is limited by the Maximum frequency 419.
NOTE
Minimum Frequency 418 is not limiting in mode "4-Speed". This can lead to a long
time operation of the motor in the current injection (current frequency <624
cutoff
frequency) in configurations 411 and 611. Prevent an impermissible motor tempera-
ture rise through to long operation in the current injection.
The operating mode "4-speed controller" can lead to a reversal of the drive.

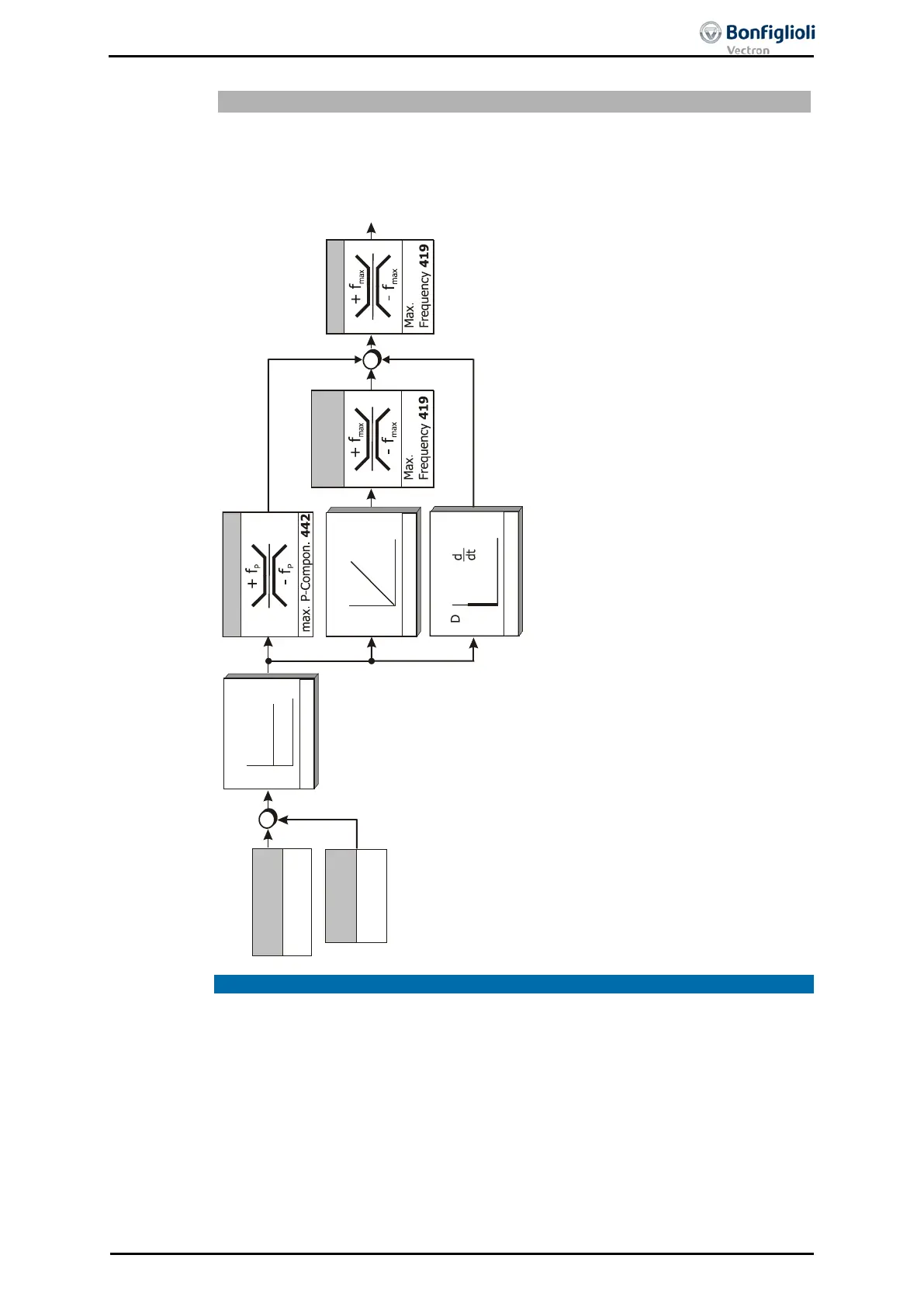

T
echnology
Controller
Act. Percentage
Source 478
Ref. Percentage
Channel
Ref. Percentage Source 476
Amplification 444
P
Differential Time 618
I
Integral Time 445
+
+
-
Max. P-Component
Limitation
Max. I-Component
06/13 Operating Instructions ACU 223
