bora X BO - BORA X BO Frame Spacer

Installation
EN
bora.com 25
u
So that the fill level is detected correctly, use a spirit level to
precisely adjust the shelf on which the appliance is to sit.
1
2
3

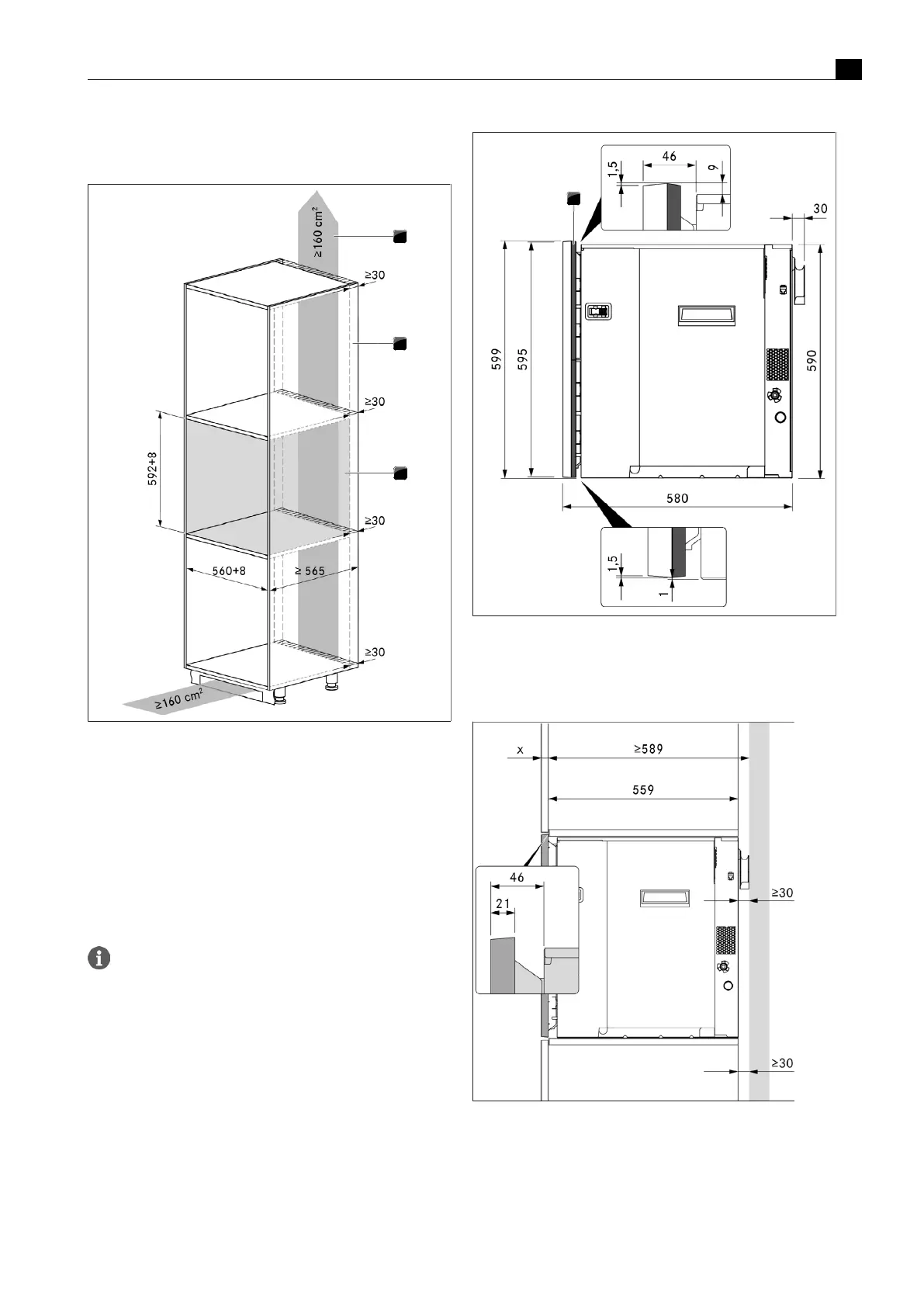

Fig.9.1
Fitted unit
[1]
Unobstructed ventilation cross-section ≥ 160mm²
[2]
Minimum distance of 30mm
[3]
No unit back panel behind the appliance
9.5
BORA X BO frame spacer
The frame spacers can be used to vary the appliance installation
depth. One frame spacer is pre-fitted upon delivery. Depending on
the installation situation, it can be removed or an additional frame
spacer can be fitted (available as an accessory).
For greater accessibility, the frame spacer should be fitted or
removed before installing the appliance.
1
Fig.9.2
Appliance dimensions
[1]
Frame spacer
Installation depth without frame spacer
Fig.9.3
Installation dimensions without frame spacer
