Installation
EN
bora.com 27

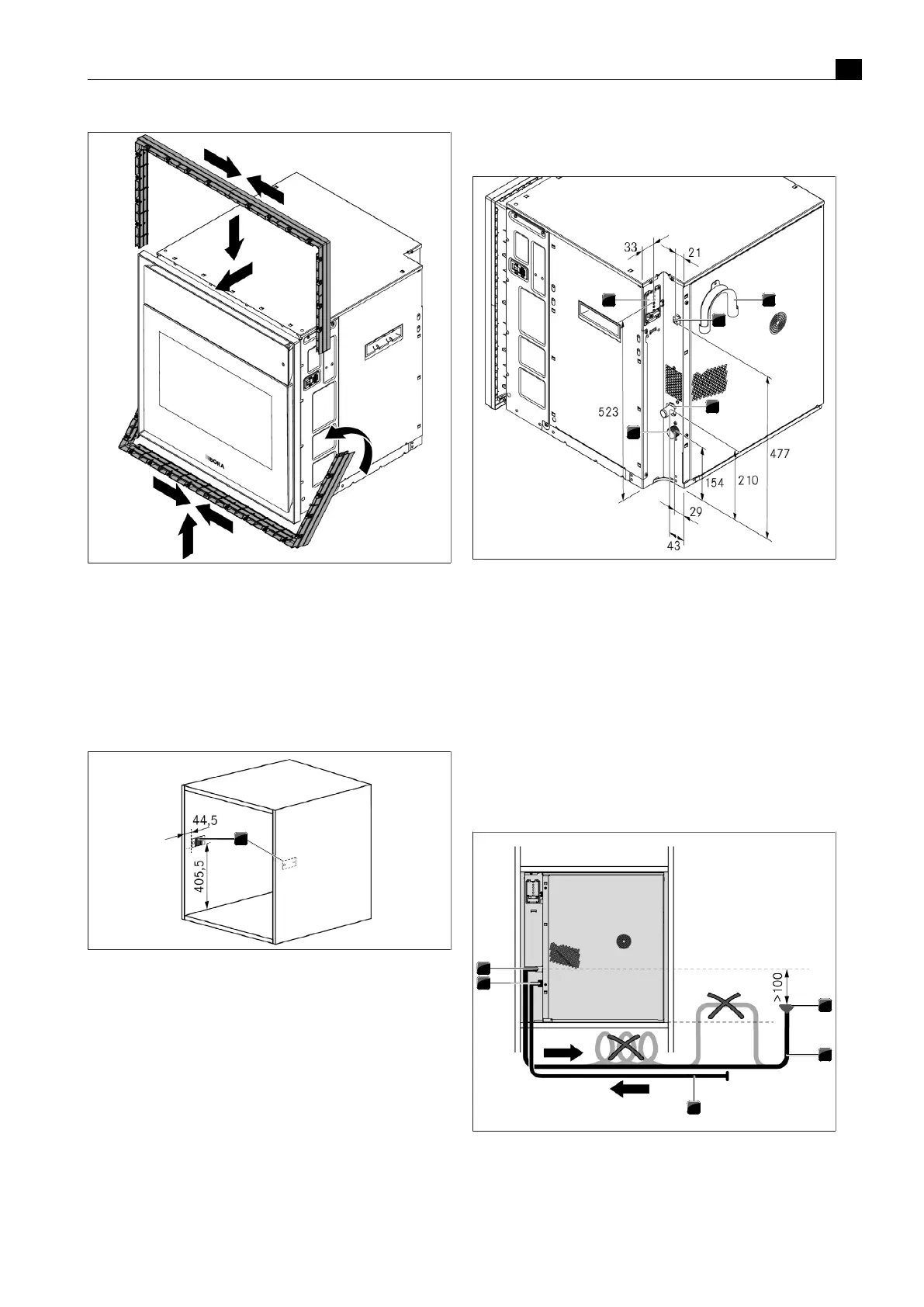

Fig.9.8
Fitting 2 frame spacers
9.6
Installation
9.6.1 Fitting unit mounting plates
u
Using the installation template and the screws provided, screw the
unit mounting plates hand-tight to the inside of the installation
recess.
1
Fig.9.9
Installation recess with unit mounting plates
[1]
Unit mounting plates
9.6.2
Appliance connections
1
3
4
5
2
Fig.9.10
Appliance connections
[1]
Power supply
[2]
Hook for water drainage pipe
[3]
RJ45 connection for BORA multi-drawer (no mains connection)
[4]
Waste water connection
[5]
Fresh water connection
9.6.3
Water drainage
T
The waste water trap must be installed at least 100mm below the
waste water connection.
T The water drainage pipe must not be installed above the bottom
edge of the appliance.
1
2
3
4
5
Fig.9.11
Water drainage
