Assembly
Unpacking and Checking
Contents
r !_[°,]p'i_.lln/[°]_m Before moving the saw: Lock the
miter lock knob in 45° left or right position. Lock bevel lock
handle. Lock head assembly in the down position.
Never carry the tool by the cord or head assembly power
switch handle. Damage to insulation could cause an electric
shock. Damage to wire connections could cause a fire.
Model 3912 Compound Miter Saw is shipped complete in
one box.
1. Separate all parts from packing materials and check
each one with the "Table of Loose Parts" to make sure
all items are accounted for before discarding any
packing material.
2. Loose parts:
• Quick Action Clamp - Used to clamp work-pieces.
• Hex Wrench - Should be stored on the left rear base.
• Blade Wrench - Should be stored in the handle.
• Miter Lock Knob
• Dust Chute Elbow
• Dust Bag
• Operating/Safety Instructions
J
Ir!'_',v'-'1_lala:_if any parts are missing, do not plug
in power cord or turn the switch on until the missing parts are
obtained and are installed correctly.
Installation of Miter Lock Knob
1. Locate Miter Lock Knob from Loose Parts.

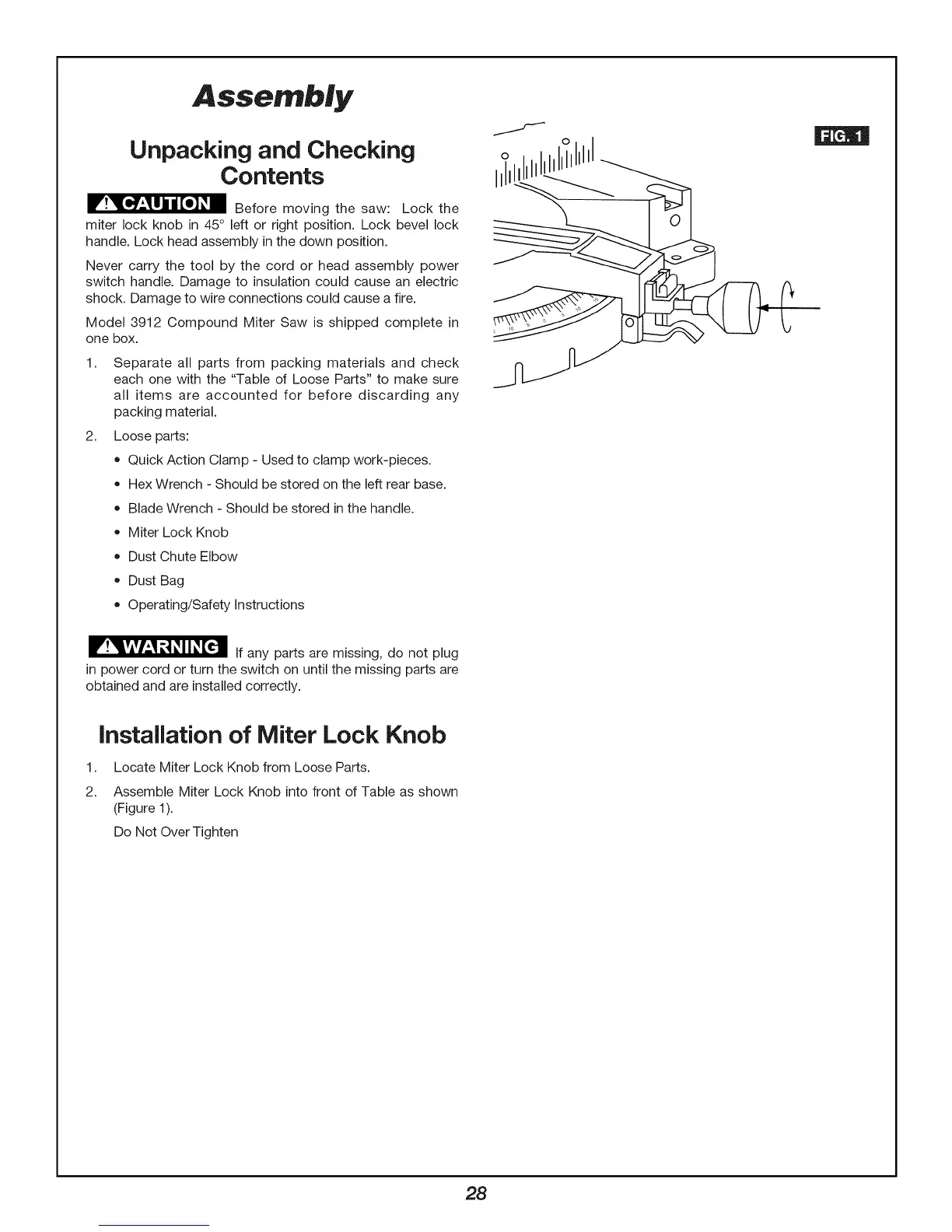

2. Assemble Miter Lock Knob into front of Table as shown
(Figure 1).
Do Not Over Tighten
28
To Next Page
