2
1
3
4
27
26
24
23
25
37
30
22
\
\
21
10
16 15
20 17 10 18
I To avoid injury from accidental
starting, remove plug from power source outlet before
making any adjustments.

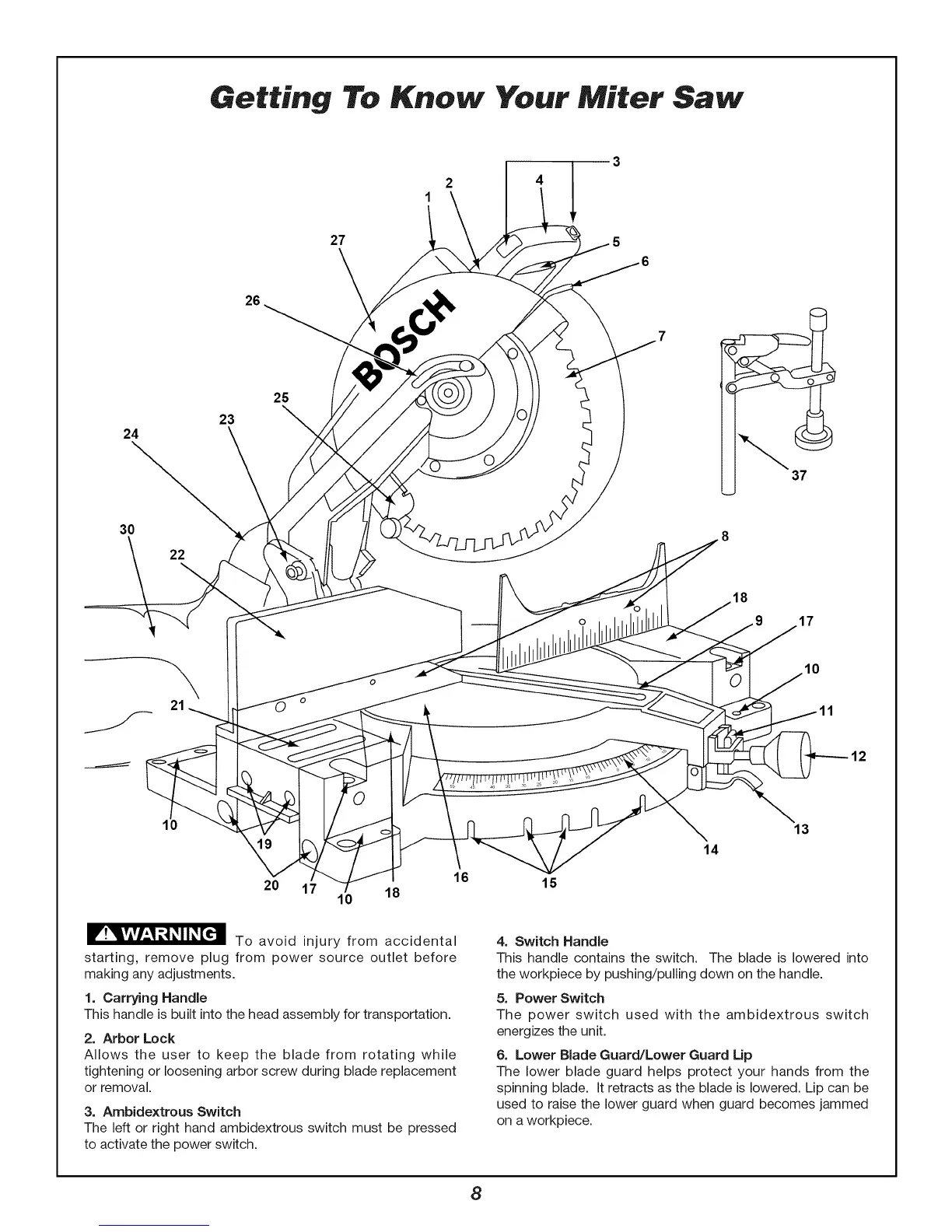

1, Carrying Handle
This handle is built into the head assembly for transportation.
2. Arbor Lock
Allows the user to keep the blade from rotating while
tightening or loosening arbor screw during blade replacement
or removal.
3. Ambidextrous Switch
The left or right hand ambidextrous switch must be pressed
to activate the power switch.
14
13
4. Switch Handle
This handle contains the switch. The blade is lowered into
the workpiece by pushing/pulling down on the handle.
5. Power Switch
The power switch used with the ambidextrous switch
energizes the unit.
6. Lower Blade Guard/Lower Guard Lip
The lower blade guard helps protect your hands from the
spinning blade. It retracts as the blade is lowered. Lip can be
used to raise the lower guard when guard becomes jammed
on a workpiece.
8
