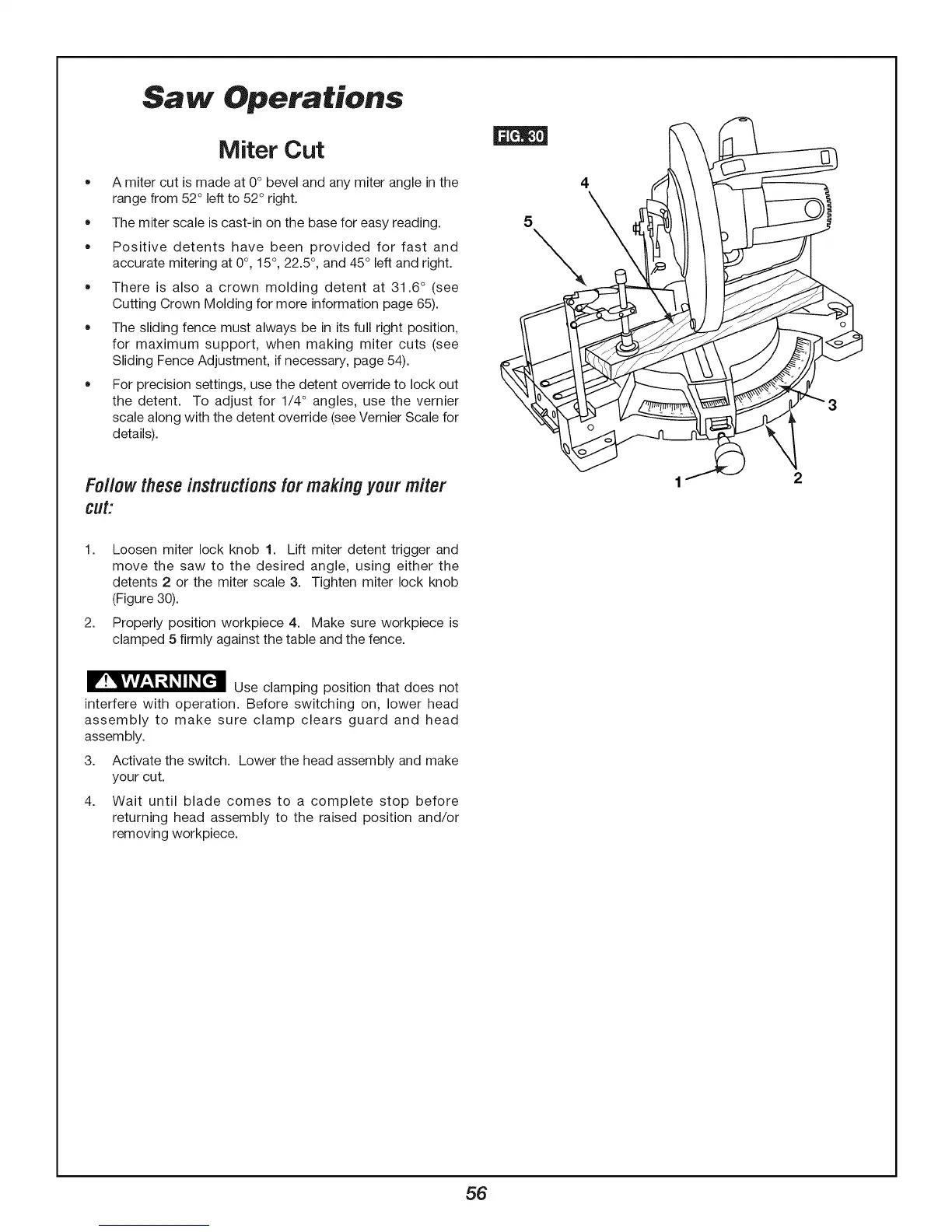

Saw Operations
Miter Cut
A miter cut is made at 0° bevel and any miter angle in the
range from 52° left to 52° right.
The miter scale is cast-in on the base for easy reading.
Positive detents have been provided for fast and
accurate mitering at 0°, 15°, 22.5 °, and 45° left and right.
• There is also a crown molding detent at 31.6 ° (see
Cutting Crown Molding for more information page 65).
• The sliding fence must always be in its full right position,
for maximum support, when making miter cuts (see
Sliding Fence Adjustment, if necessary, page 54).
• For precision settings, use the detent override to lock out
the detent. To adjust for 1/4 ° angles, use the vernier
scale along with the detent override (see Vernier Scale for
details).
4
Fo//owtheseinstructionsfor makingyourmiter
cut:
2
1.
2.
Loosen miter lock knob 1. Lift miter detent trigger and
move the saw to the desired angle, using either the
detents 2 or the miter scale 3. Tighten miter lock knob
(Figure 30).
Properly position workpiece 4. Make sure workpiece is
clamped 5 firmly against the table and the fence.
r !-vAvl,-_E_ll_[e-]l Use clamping position that does not
interfere with operation. Before switching on, lower head
assembly to make sure clamp clears guard and head
assembly.
3. Activate the switch. Lower the head assembly and make
your cut.
4. Wait until blade comes to a complete stop before
returning head assembly to the raised position and/or
removing workpiece.
