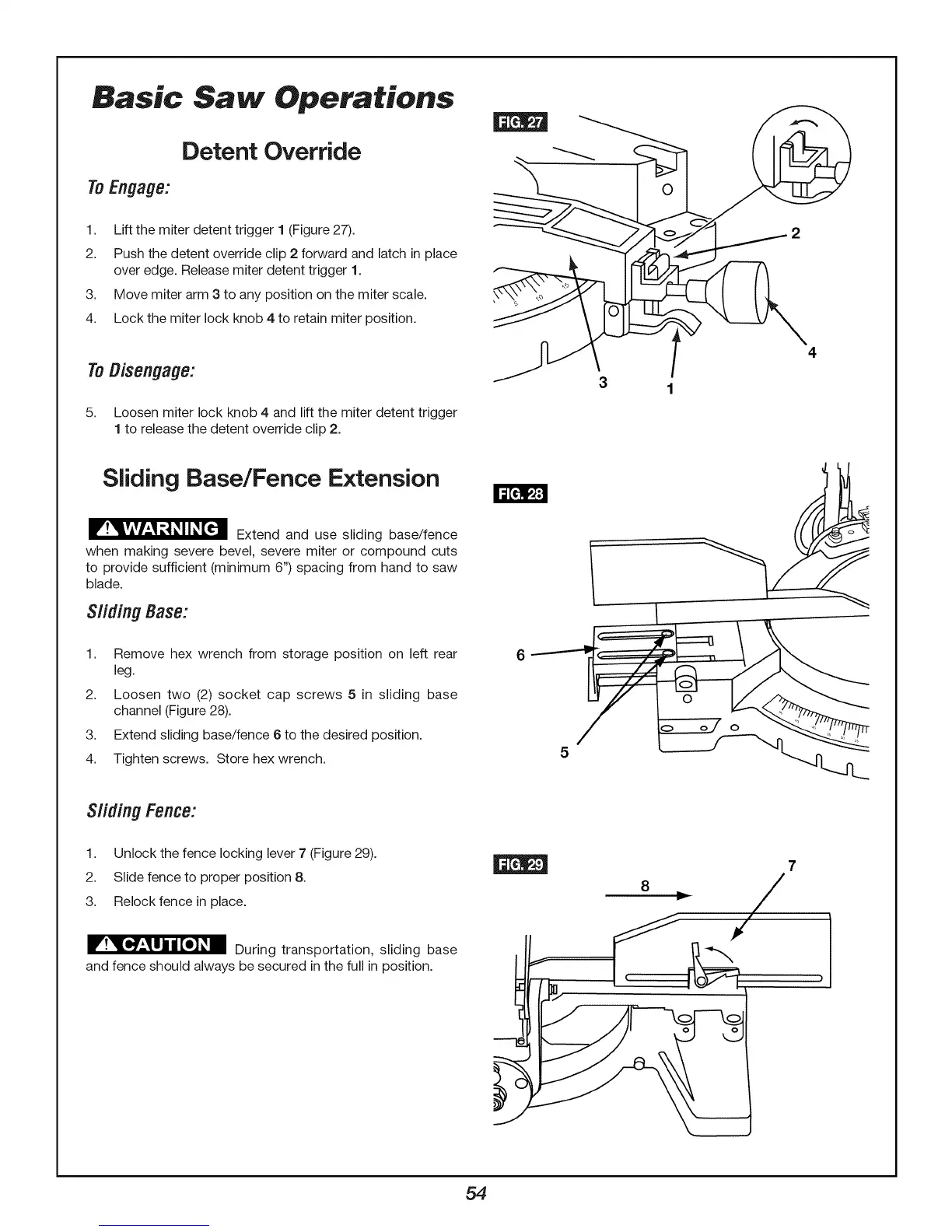

Bosch 3912 - Basic Saw Operations; Detent Override; Sliding Base;Fence Extension

Basic
ToEngage:
Saw Operations
Detent Override
1. Lift the miter detent trigger 1 (Figure 27).
2. Push the detent override clip 2 forward and latch in place
over edge. Release miter detent trigger 1.
3. Move miter arm 3 to any position on the miter scale.
4. Lock the miter lock knob 4 to retain miter position.
ToDisengage:
5. Loosen miter lock knob 4 and lift the miter detent trigger
1 to release the detent override clip 2.
Sliding Base/Fence Extension
_'vl II-],,==,,r=.==ir :_VAV.,___LXL,,,L,L_ Extend and use sliding base/fence
when making severe bevel, severe miter or compound cuts
to provide sufficient (minimum 6") spacing from hand to saw
blade.
SlidingBase:
...
0
4
1.
2.
3.
4.
Remove hex wrench from storage position on left rear
leg.
Loosen two (2) socket cap screws 5 in sliding base
channel (Figure 28).
Extend sliding base/fence 6 to the desired position.
Tighten screws. Store hex wrench.
6
5
Sliding Fence:
1. Unlock the fence locking lever 7 (Figure 29).
2. Slide fence to proper position 8.
3. Relockfence in place.
rr_[#,__lJ/[,]:m During transportation, sliding base
and fence should always be secured in the full in position.
8
7
/
)
54
