Appendices
Connecting Diagrams

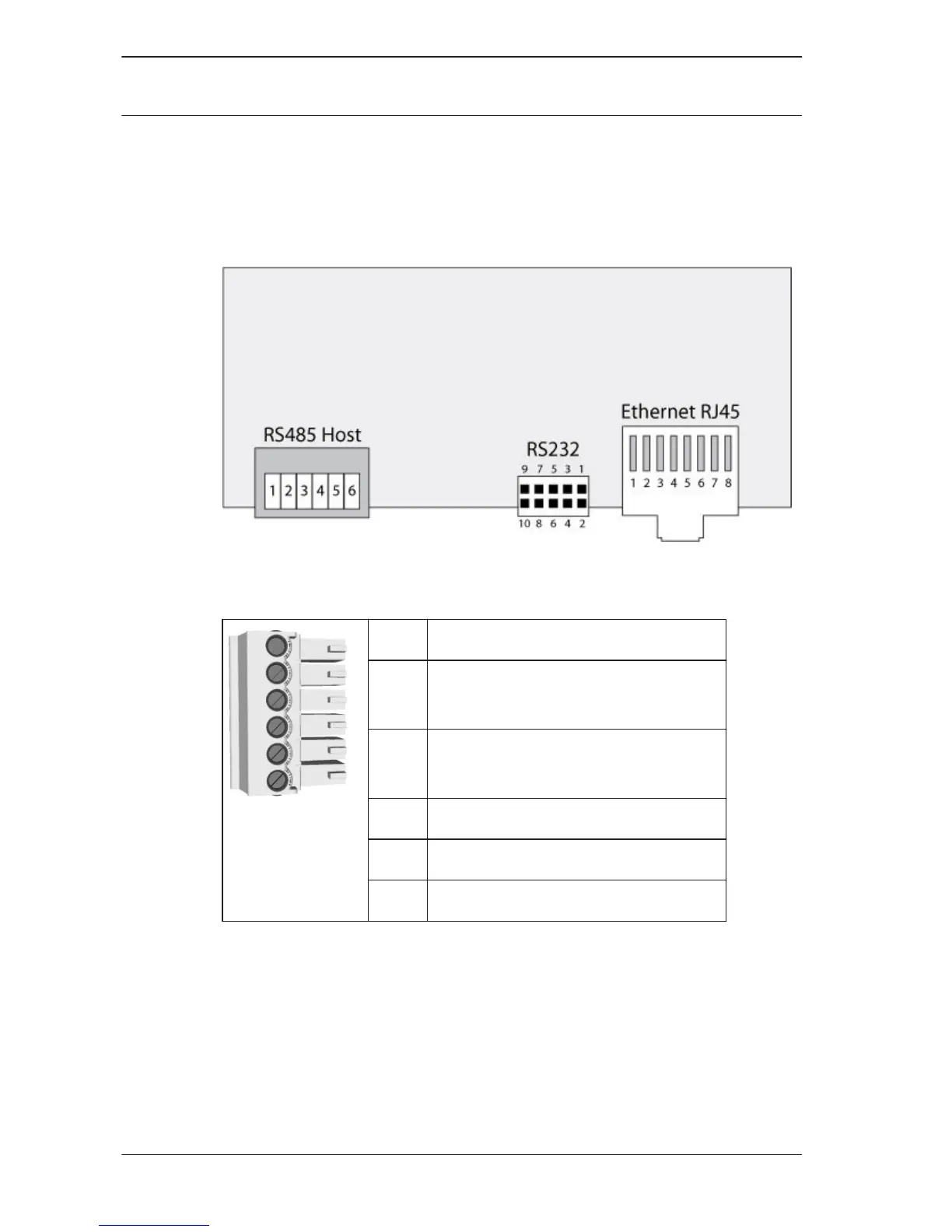

Figure 7.1: Connectors on upper PCB
1
Shield
2 Data RxTx+ (2-wire)
Data Rx+ (4-wire)
3 Data RxTx- (2-wire)
Data Rx- (4-wire)
4 Ground (PAG)
5 Data Tx+ (4-wire)
6 Data Tx- (4-wire)
Table 7.1: RS-485 host on upper PCB
7
7.1
