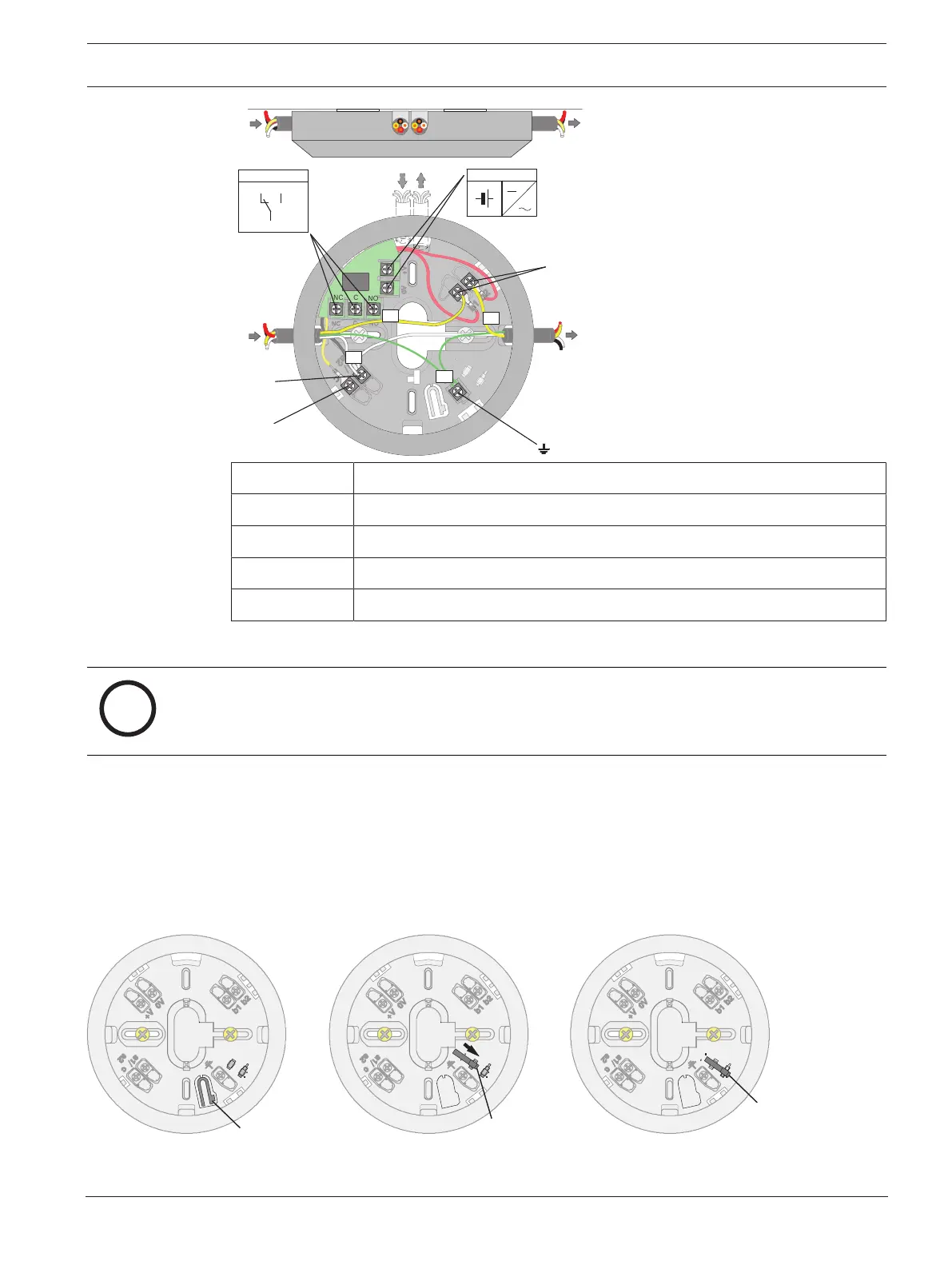

Bosch AVENAR detector 4000 - Installing the Detector Head

AVENAR detector 4000 Connection | en 23
Bosch Sicherheitssysteme GmbH
User manual
2023-06 | 07 | F.01U.283.550
NO
NC C
c
C
a1/a2
(LSN -)
b1 | b2
(LSN +)
COM
NC NO
wh
gn
ye
ye
max. 30 V DC
1 A / 30 V DC
ye Yellow, connection to b1/b2 (LSN+)
wh White, connection to a1/a2 (LSN-)
gn Green, connection to shield wire
NC/C/NO Change-over contact relay
+V/0V Terminals for looping through the supply voltage for downstream elements
5.3 Installation of the detector head
i
Notice!
The packaging for the multisensor detector with C sensor consists of tear-proof PE-ALU
laminated film and must be cut open carefully.
After installation and connection of the base, the detector head is set into the base and turned
to the right as far as it will go.
Detector bases are delivered with an inactive locking clip.
To protect against removal, the detector head can be locked in the base. To do so, break the
locking clip (X) out of the base and push it into the corresponding guide.
X
X
1 2 3
X
X
Figure5.1: Activation of locking clip
