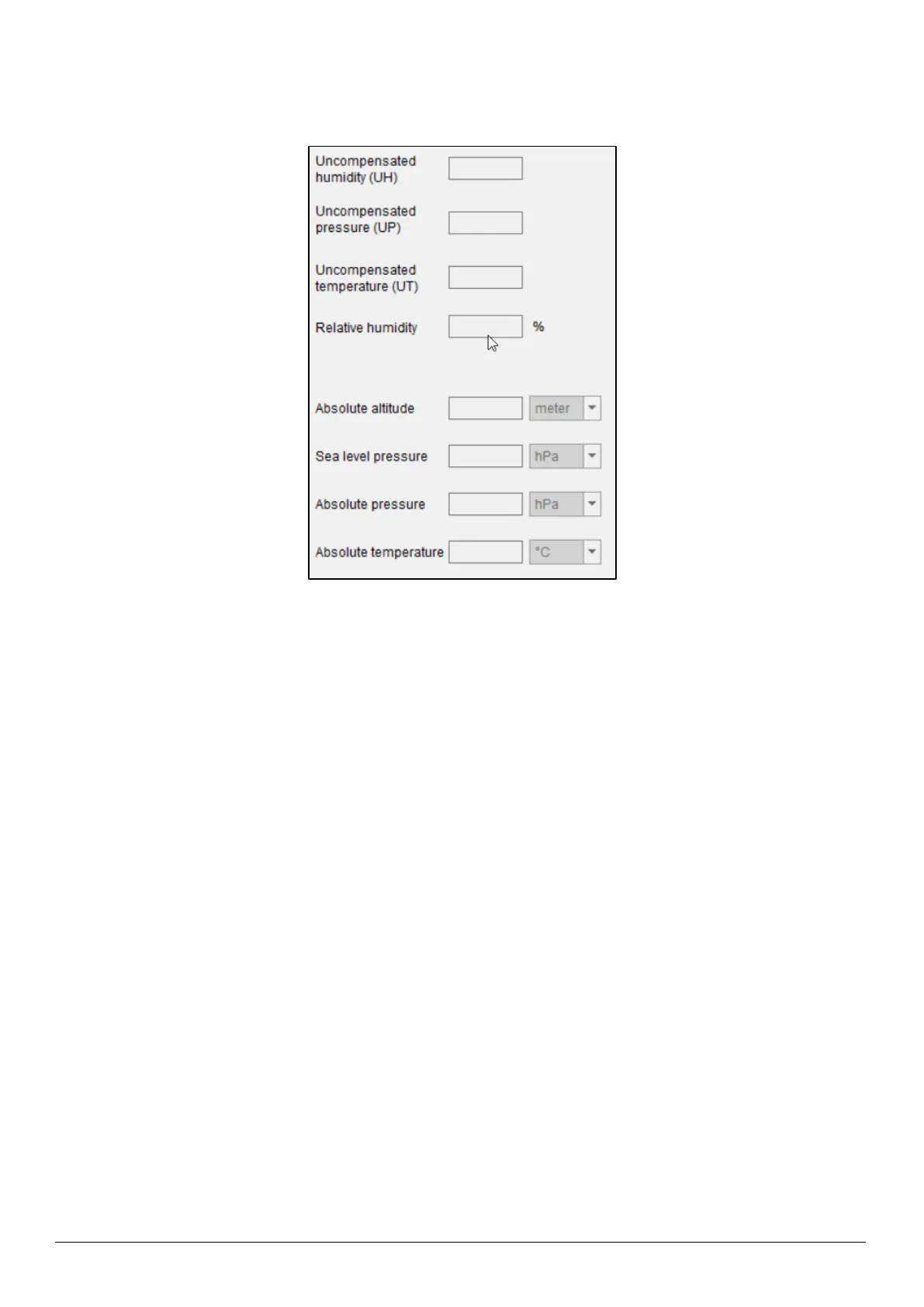

Figure 17 : Sensor Metrics
4.6 Reset Sensor
▪ Resetting the sensor is possible by cycling VDD level or by writing soft reset command
4.6.1 PO Reset
▪ Power-On Reset option resets the logic part and register values after both VDD and VDDIO reach their
minimum levels
▪ Once PO Reset button clicked, sensor reset to default values and UI reflect the default values
4.6.2 Soft Reset
▪ Soft Reset option is used to erase the possible old settings
▪ Once Soft Reset button clicked, the default values would be updated in UI
4.7 Data Export/ Log
▪ To save the output values plotted by DD2.1 UI , go to Panels -> Data Export, or click Alt+D.
▪ By default, the data values are logged into a text (.txt) file in the destination folder of DD2.1 UI.
▪ The steps to follow data logging are as seen:
