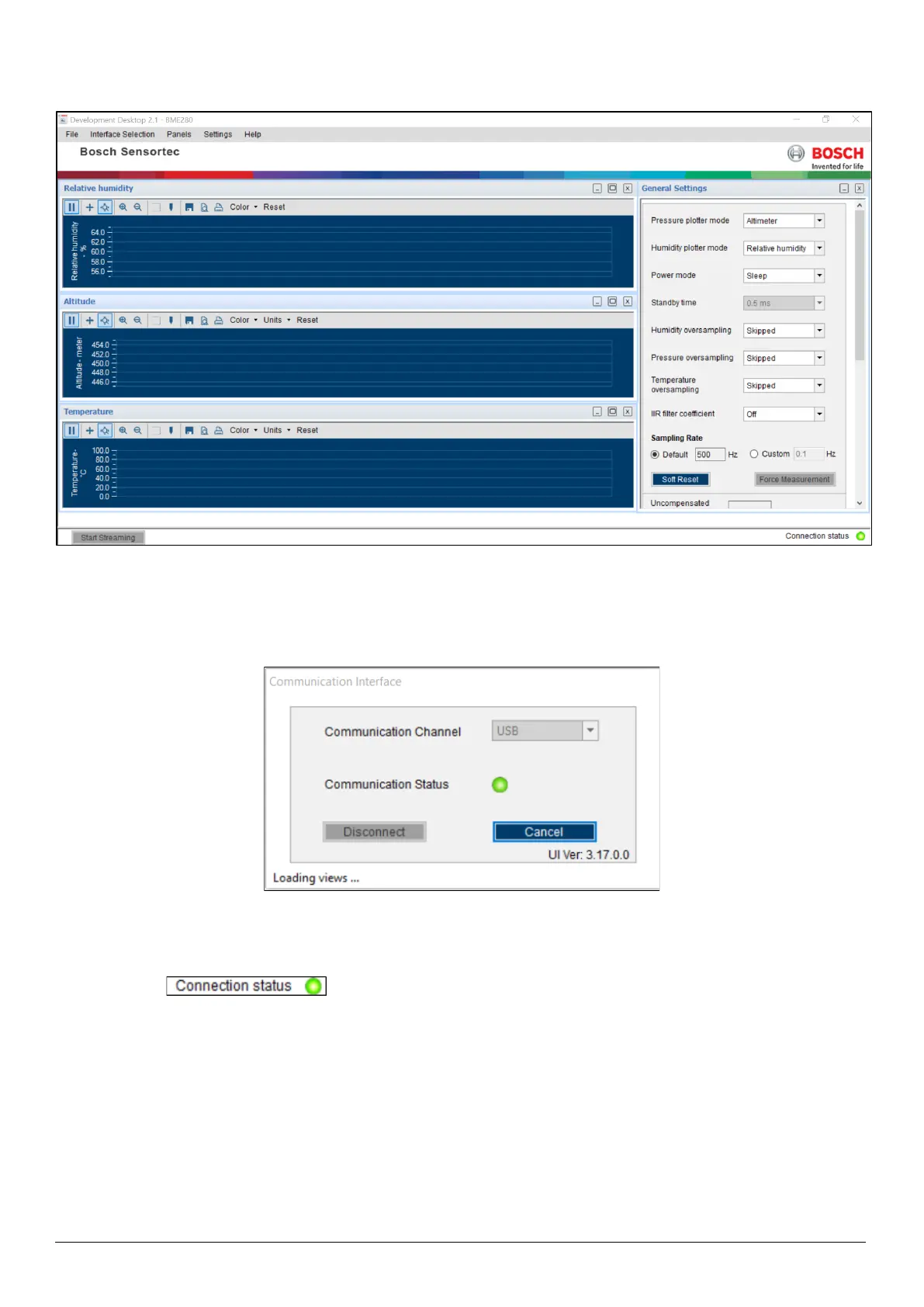

Figure 7 :: DD2.1 UI Startup View
When the PC and board are connected, the Communication Status glows green as shown below:
Figure 8 : Communication Status
• The communication status is also indicated at the bottom right of the GUI at all times:
• Other menu options include:
▪ File
▪ Interface Selection
▪ Panels
▪ Settings
▪ Help
These menu options are explained in detail in the following sections.
