Operation of the control unit
7
Control 8313 – 6720859552 (2017/03)
3.5 Operating and display elements of the touch screen
The display and selectability of the menu items depends on which
modules are inserted and which settings have been made.
The following displays can be called up via the touch screen:
• Heat source in the system
• Heat consumers and heat distributors in the system
• Monitor data
• Setting parameters for commissioning and system optimisation.
These parameters are protected by a key code.

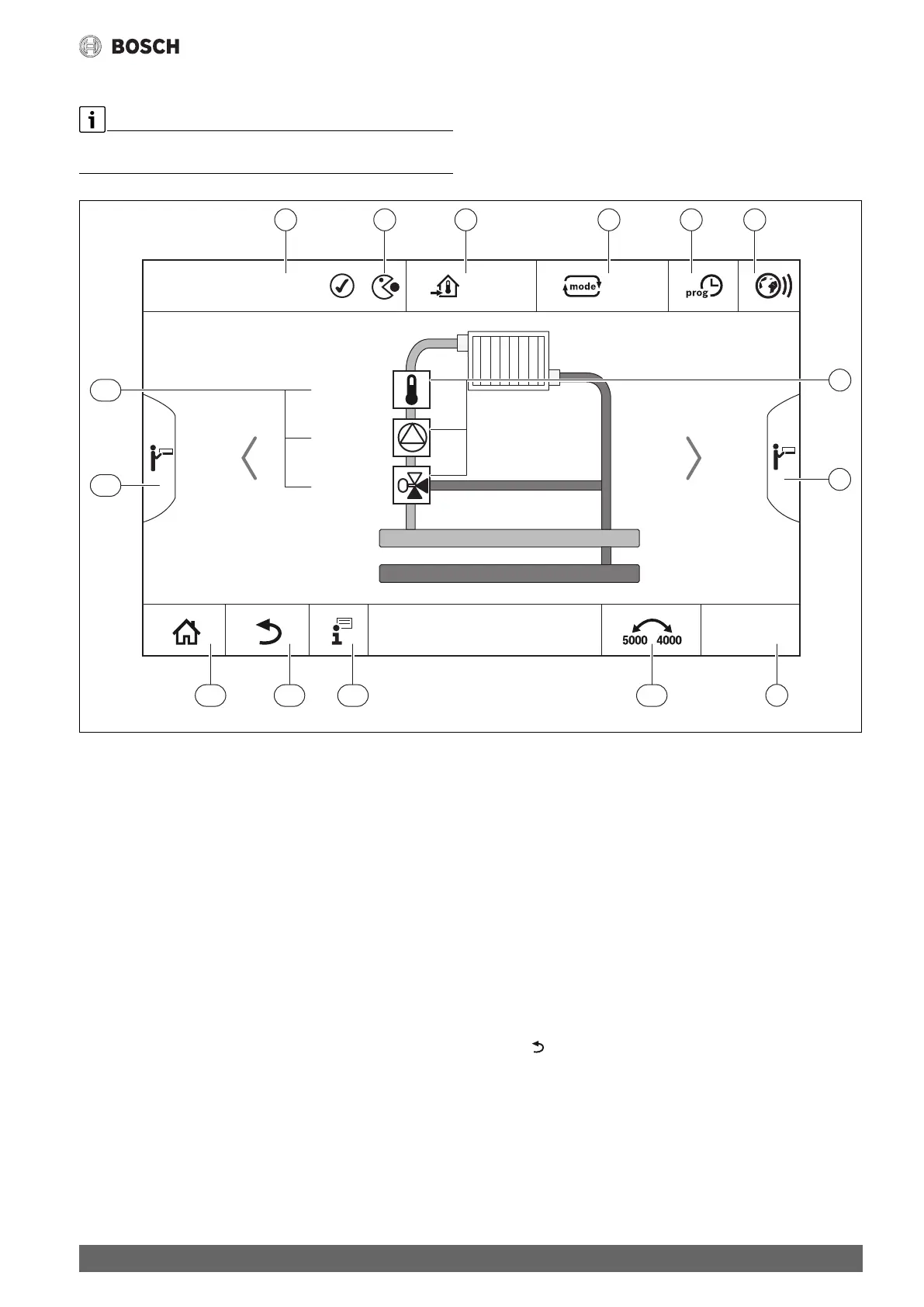

Fig. 4 Operating and display elements
[1] Display of system, subsystem or function
[2] Status display of active menu level
[3] Display of temperature set (set temperature)
[4] Display of operating mode set
[5] Display of time program set
[6] Display of Internet connection
[7] Display of system components
[8] Advanced functions for heating circuit, DHW
[9] Display of time
[10] Press field to switch between display types on the display
[11] Information menu
[12] Press field to go back to the previous level/screen
[13] Press field to return to the system overview
[14] Advanced functions of the heat source
[15] Status display of system components
The symbols used are listed in Fig. 11.2 on page 28, accompanied by
an explanation.
3.6 Control system
The display and operation is organised in several menu levels. These can
be accessed by tapping the corresponding symbol. Several menu levels
can only be accessed by contractors. If an arrow is displayed on the right
or left of the selected menu ( Fig. 4, page 7) additional menu items are
available. The corresponding status of the system, part of the system,
function or system component can be identified from the individual
images displayed.
Further information:
• Menu structure Chapter 4, from page 14
• Functions Chapter 5, from page 16
• Explanation of symbols and keys Chapter 11.2, from page 28
Tap, swipe and scroll the touch screen to navigate through the menu
levels and operate the functions.
To go back to the previous level/screen:
▶ Tap symbol.
12:00
50 °C
on/o
30 %
1 2 3 4 5 6
9
7
8
10111213
14
15
0010005510-001
