Time program
21
Control 8313 – 6720859552 (2017/03)
Entering a switching point
Heating phases can be interrupted by entering switching points in an
existing time program.
To interrupt a heating phase:
▶ Tap the temperature line of the setback mode at the point (time)
where you wish to insert the new switching point.
A new switching point is added.
▶ Move the switching point if required.
▶ Tap Save field.

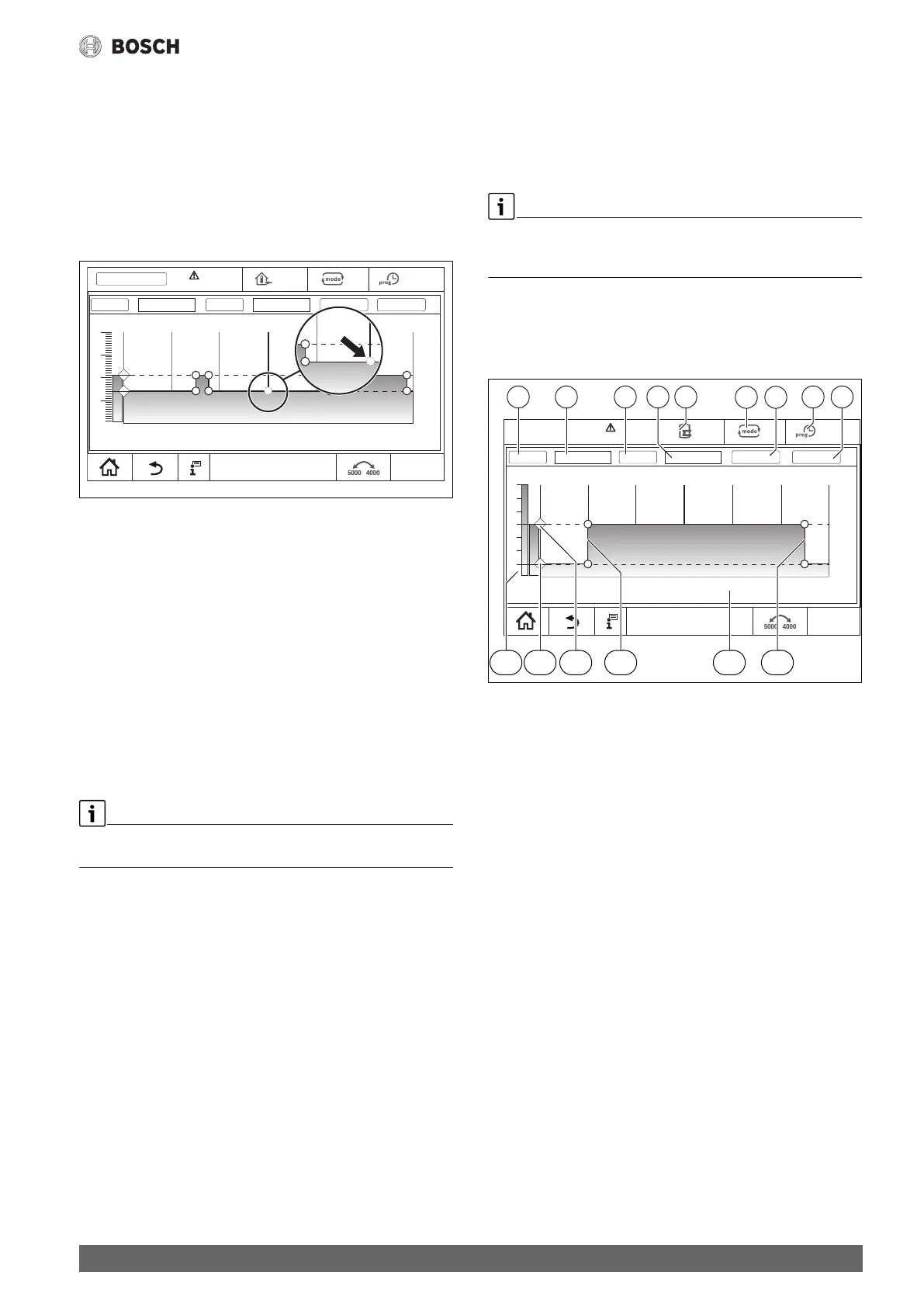

Fig. 27 Entering a switching point
Deleting a switching point
To delete the switching points of a program:
▶ Tap the switching point ( Fig. 27, page 21) and drag along the
temperature line of the setback mode.
▶ Tap Save field.
Joining together heating phases
To join 2 consecutive heating phases together:
▶ Tap the switch-off point of the first heating phase and drag it to the
switch-on point of the second heating phase.
▶ Tap Save field.
6.2.3 Creating a new time program
You can create a new time program by combining different times of the
programs.
The new time program is saved under the name Custom and the number
of the heating circuit.
Example
The heating is to be activated for a heating circuit for a family from
Monday to Friday and on Saturday and Sunday at the times stored in the
program.
▶ Select heating circuit.
▶ Tap Program.
▶ Tap Program selection box.
▶ Select Family from the list.
▶ Tap Day of week selection box
▶ Select Monday to Friday
▶ Tap Save field.
▶ Tap Program field again
▶ Tap Program selection box.
▶ Select Family from the list.
▶ Tap Day of week selection box
▶ Select Saturday to Sunday
▶ Tap Save field.
6.2.4 DHW time program
Setting the DHW heating
A dedicated time program can be created for the DHW heating.
The time points should be set so that DHW is only available when one
heating circuit is in normal heating mode.
Additional DHW demand or DHW demand outside the set times is
satisfied via the once-only DHW cylinder charging function
( Chapter 5.8.2, page 19).
Creating a new DHW time program
The Domestic hot water program is selected and set in the same manner
as the DHW circulation time program ( Chapter
6.2.3
, page
21
).
If a DHW program is changed, it is saved under User-defined.
Fig. 28 DHW program
[1] Repetitions
[2] Repetitions selection list
[3] Program
[4] Program selection list
[5] DHW temperature
[6] Operating mode
[7] Save
[8] Active time program
[9] Cancel
[10] Switching point
[11] Time
[12] DHW temperature set for heating mode
[13] DHW temperature set for setback mode
[14] DHW temperature
▶ Select Domestic hot water heating circuit.
▶ Tap Program.
▶ Adjust Domestic hot water in the same manner as DHW circulation
time program ( Chapter 6.2.3, page 21).
