3.6.1 Calling up menu levels or functions
To call up individual menu levels or select functions:
▶ Tap the corresponding position on the display with your finger.

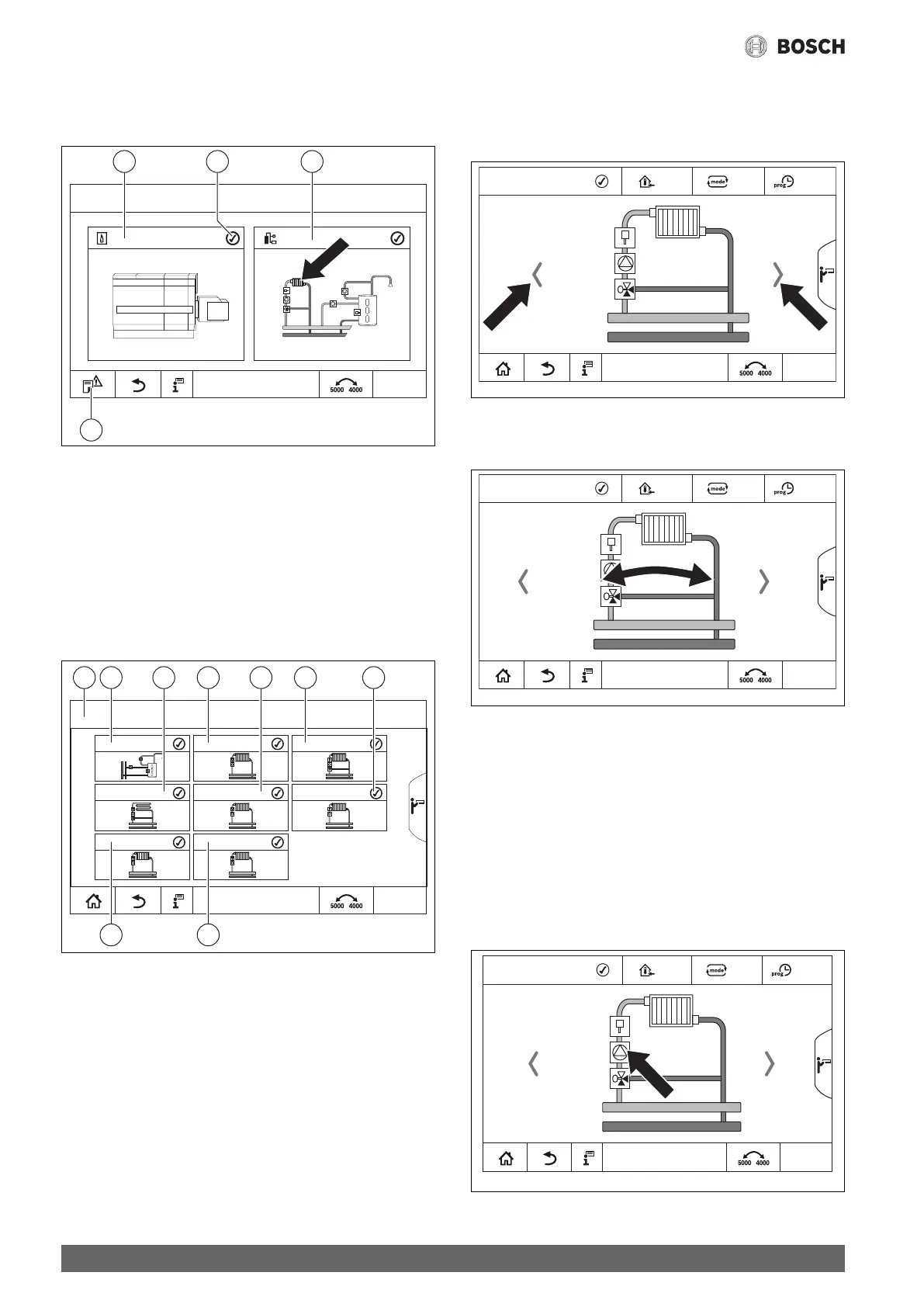

Fig. 5 Calling up a menu level or function
[1] Heat production
[2] Status display
[3] System
[4] Fault history
The next menu level or function is displayed.
Menu levels
If several menus or functions are available at one level:
▶ Tap the corresponding position (function) on the display with your
finger.
Fig. 6 Heating circuit overview (example)
[1] System > Control unit 01
[2] Domestic hot water
[3] Heating circuit 03
[4] Heating circuit 01
[5] Heating circuit 04
[6] Heating circuit 02
[7] Heating circuit 05
[8] Heating circuit 07
[9] Heating circuit 06
To select a different function within a menu level:
▶ Tap the right or left arrow on the display with your finger.
-or-
▶ Swipe to the left or right across the display with your finger.
Fig. 7 Scrolling
-or-
▶ Swipe your finger across the display.
Fig. 8 Wipe
Display of heating circuits
Designations are allocated to the heating circuits depending on the slot
of the heating circuit module. The heating circuits are numbered
according to the sequence of slots. This means that the heating circuits
at slot 1 are displayed as heating circuit 01 and 02. The heating circuits
at slot 2 are displayed as 03 and 04. If a different module is inserted at a
slot, these heating circuit numbers are omitted. If the heating circuit has
been given a name, this is displayed.
3.6.2 Calling up submenus
To select information on a system component:
▶ Tap the required position (function) on the display.
Fig. 9 Selecting the system component
