Assembly
6 Use a TORX® T25 wrench to fasten the screws
into the battery mount.

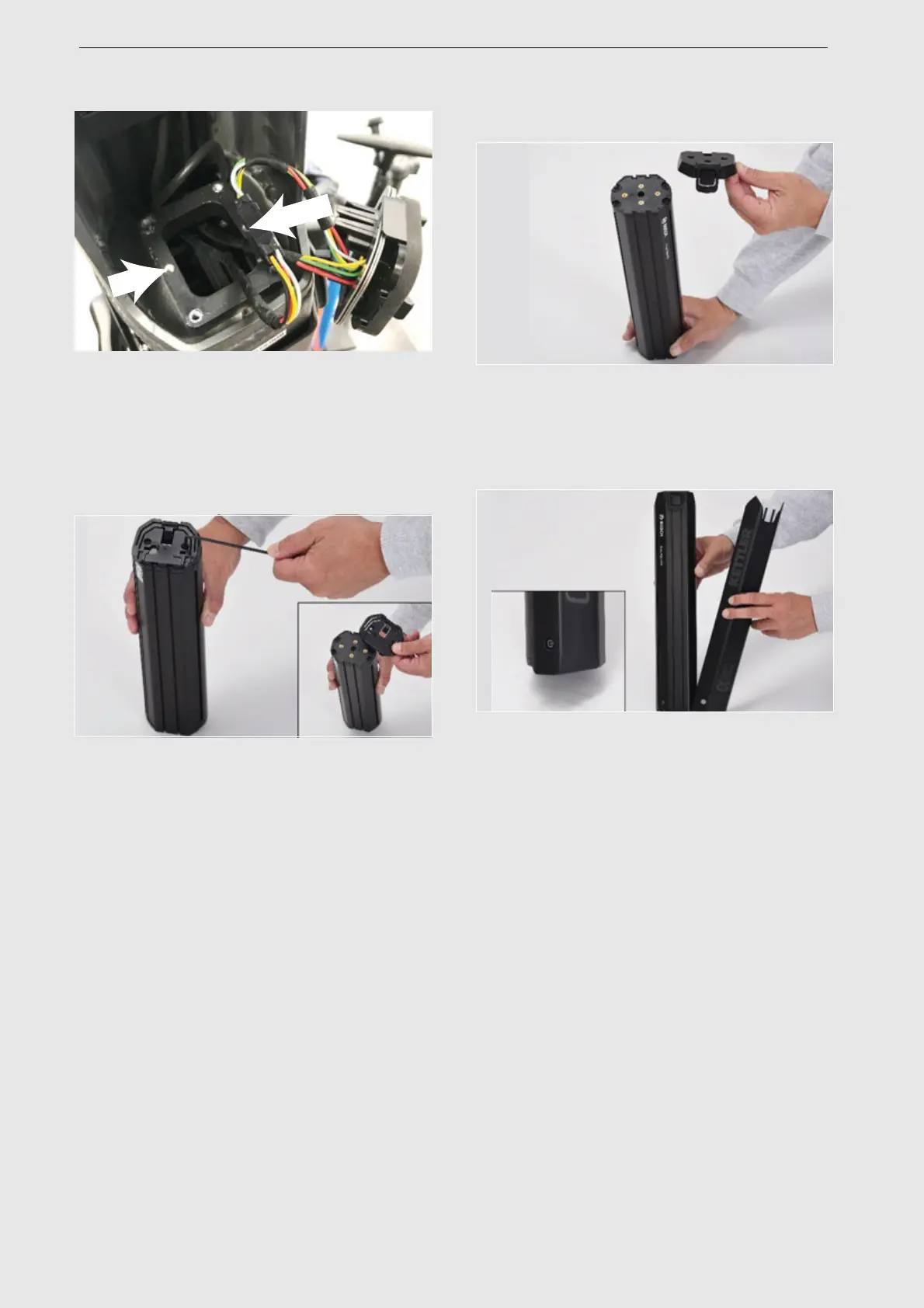

Figure 27: Fastening the battery mount
5.4.3 Fit battery cover onto Bosch
PowerTube 625 battery (horizontal)
1 Detach the upper interface (lock side) from the
Bosch PowerTube 625 battery with a TORX®
T20 wrench.
Figure 28: Detaching the upper interface
2 Screw the battery mounting plate onto the
PowerTube 625 battery with original Bosch
screws (M4 × 8 T20). In doing so, ensure that
the removal tab faces the front of the battery.
Figure 29: Fitting the mounting plate
3 Press to push the battery cover onto the
battery. In doing so, ensure that the battery on-
off switch fits through its designated slot in the
cover.
Figure 30: Pushing the battery cover onto battery
 The battery cover will lock into the fitting
grooves on the battery.
 The battery can now be inserted into the frame.
