Bosch Kiox - 8.1 Suspension System Maintenance

MY21P01 - 22_1.0_24.09.2020
94
Maintenance
8.4.2 Cable-operated gear shift, dual-
cable
Only applies to pedelecs with this equipment
 For a smooth gear shift, set the adjusting
sleeves underneath the chain stay on the
frame.
 The shift cable has around 1 mm play when it
is pulled out gently.

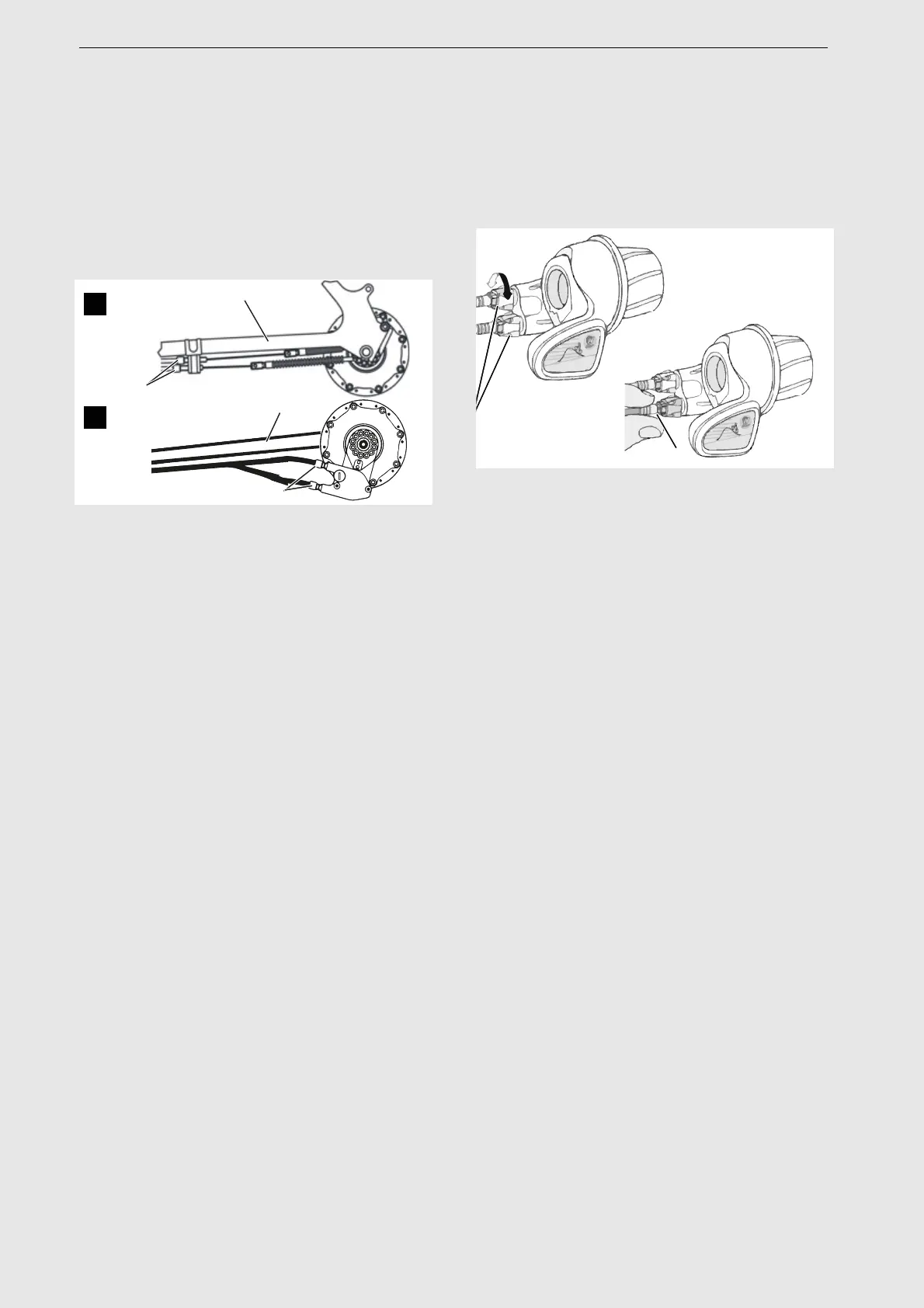

Figure 89: Adjusting sleeves (2) on two alternative
versions (A and B) of a dual-cable, cable-operated gear
shift on the chain stay (1)
8.4.3 Cable-operated twist grip, dual-
cable
Only applies to pedelecs with this equipment
 For a smooth gear shift, set the adjusting
sleeves on the shifter housing.
 There is noticeable play of around 2–5 mm
(1/2 gear) when twisting the twist grip.
Figure 90: Twist grip with adjusting sleeves (1) and play of
the gear shift (2)
1
A
B
1
2
2
1
2
