MY21P01 - 22_1.0_24.09.2020
43
Assembly
5.5.1 Installing the wheel in the Suntour
fork
5.5.1.1 Screw-on axle (15 mm)
Only applies to Suntour forks with 15 mm screw-on axle
1 Insert the axle completely on the drive side.

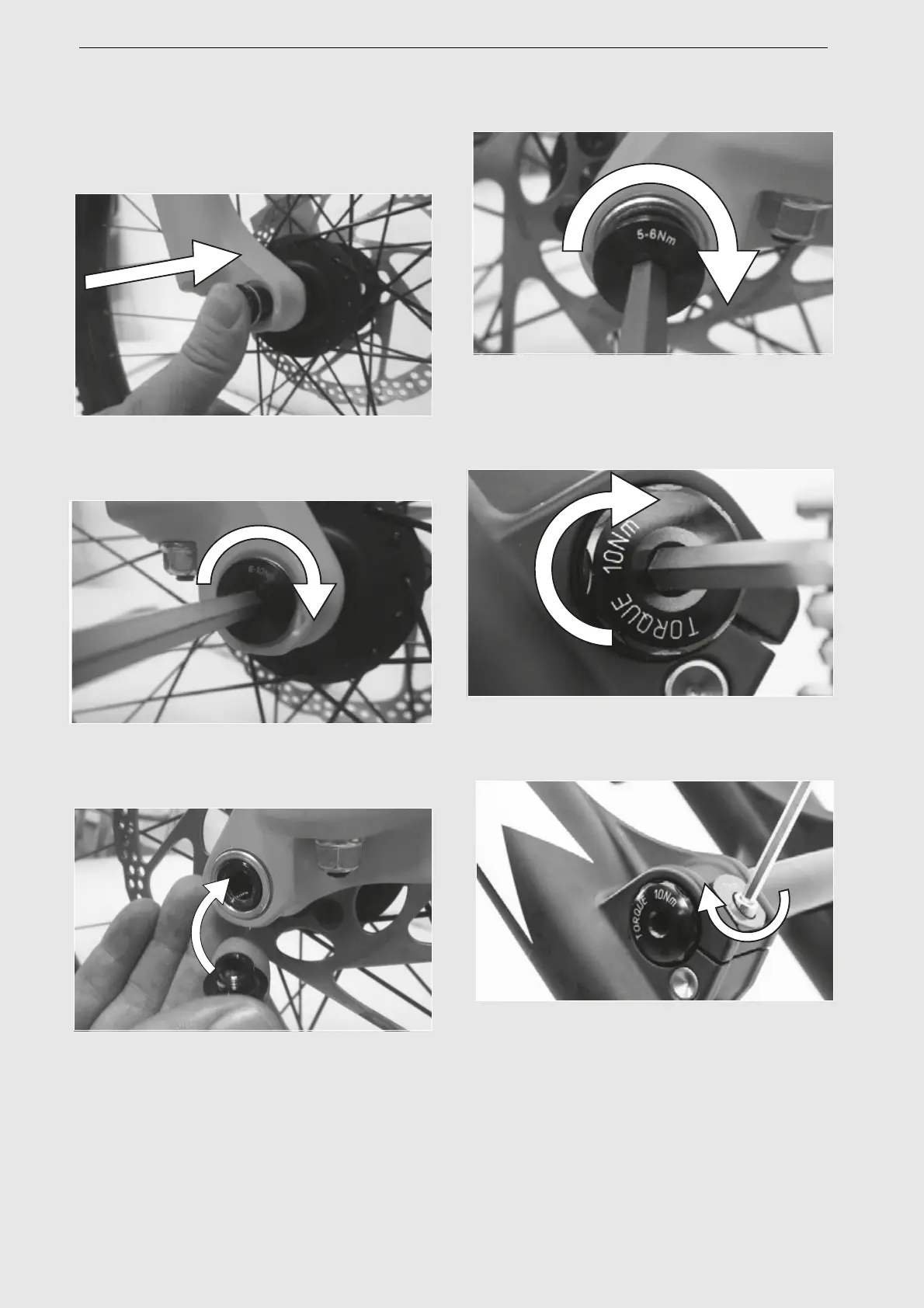

Figure 35: Fully inserting the axle
2 Tighten the axle to 8–10 Nm with a 5 mm
hexagon socket spanner.
Figure 36: Tightening the axle
3 Insert the securing screw on the non-drive
side.
Figure 37: Pushing the quick release lever into the axle
4 Tighten the securing screw with a 5 mm
hexagon socket spanner to 5–6 Nm.
The lever is mounted.
Figure 38: Tightening the securing screw
5.5.1.2 Screw-on axle (20 mm)
Only applies to Suntour forks with 20 mm screw-on axle
1 Insert the axle completely on the drive side.
Figure 39: Tightening the inserted axle
2 Tighten the securing clip with a 4 mm hexagon
socket spanner to 7 Nm.
Figure 40: Tightening the securing clip
