Assembly
5.6 Adjusting gear shift
5.6.1 Setting the shift cable play
A shift cable play between 0.5 and 1.5 is ideal. A
shift cable play of more than 2 mm has a negative
effect on the shift quality and reduces the shift
cable service life.
1 Use the setting screw on the twist grip to set
the shift cable play.

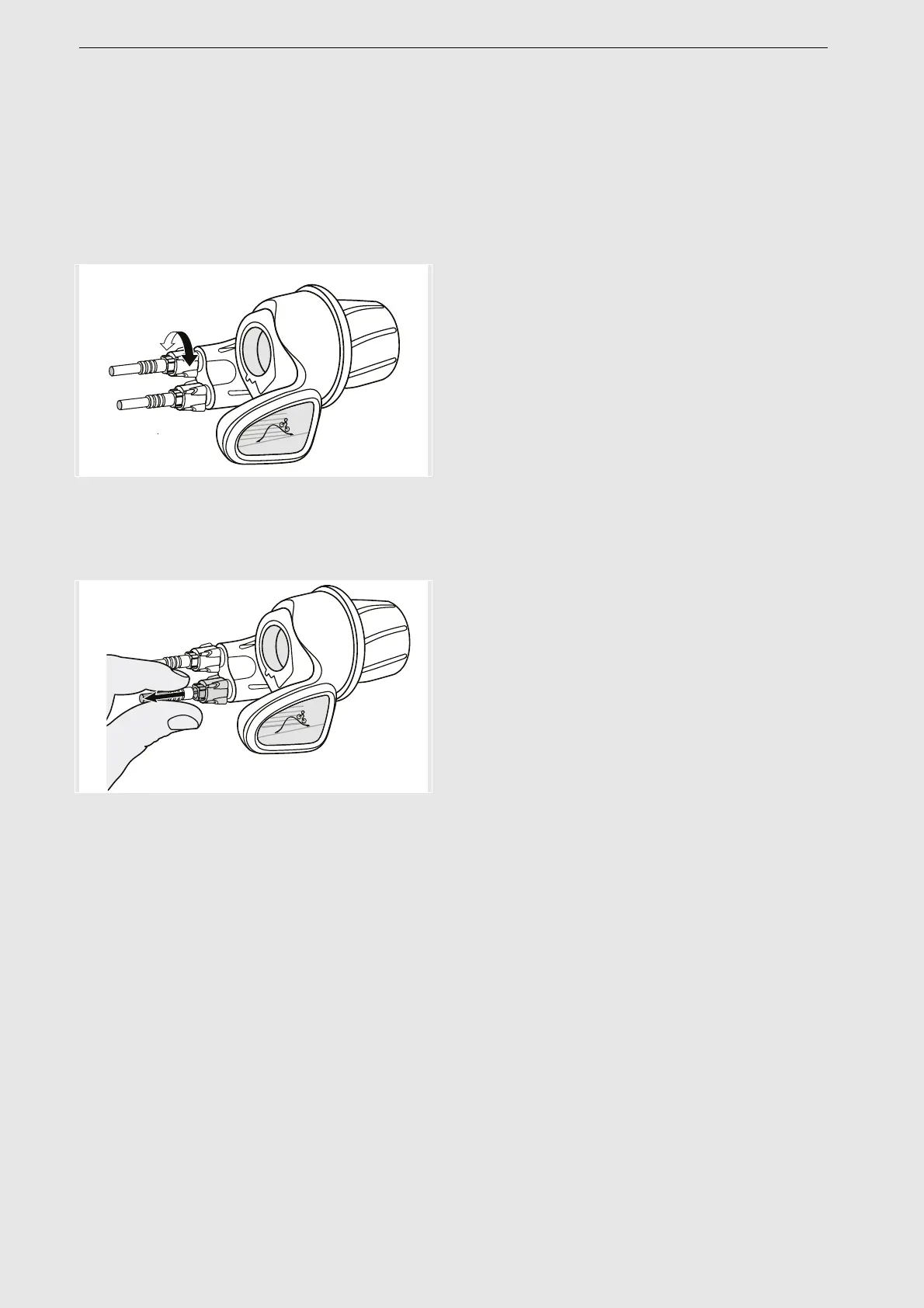

Figure 51: Turning the setting screw
2 Gently pull on the shift cable outer sleeves
where the setting screws are to check the shift
cable play.
Figure 52: Pulling on the shift cable outer sleeve
5.6.2 Calibrating
1 Switch on the electric drive system (see
Section 6.12.1).
2 Open the <eShift> menu in the on-board
computer (see Section 6.13.14.5).
3 Use the back button or forward button to
select the <Calibration> menu option and
press the Select button to confirm.
4 Push the pedals steadily but not too hard.
Calibration starts as soon as you start
pedalling. Pedal resistance changes
continually during the process.
The message CALIBRATION
SUCCESSFUL will appear on the display
screen once the process is successfully
completed. The system returns to ride mode
automatically.
5.7 Selling the pedelec
Complete Pedelec pass on the operating
instructions envelope.
Note down the manufacturer and the number of
the battery key.
Adjust the pedelec to the rider; see Section 6.5.
Set the stand and shifter.
Instruct the operator or rider on how to use all
the pedelec's functions.
