Overview
3.5 Description of controls and
screens
3.5.1 Handlebars

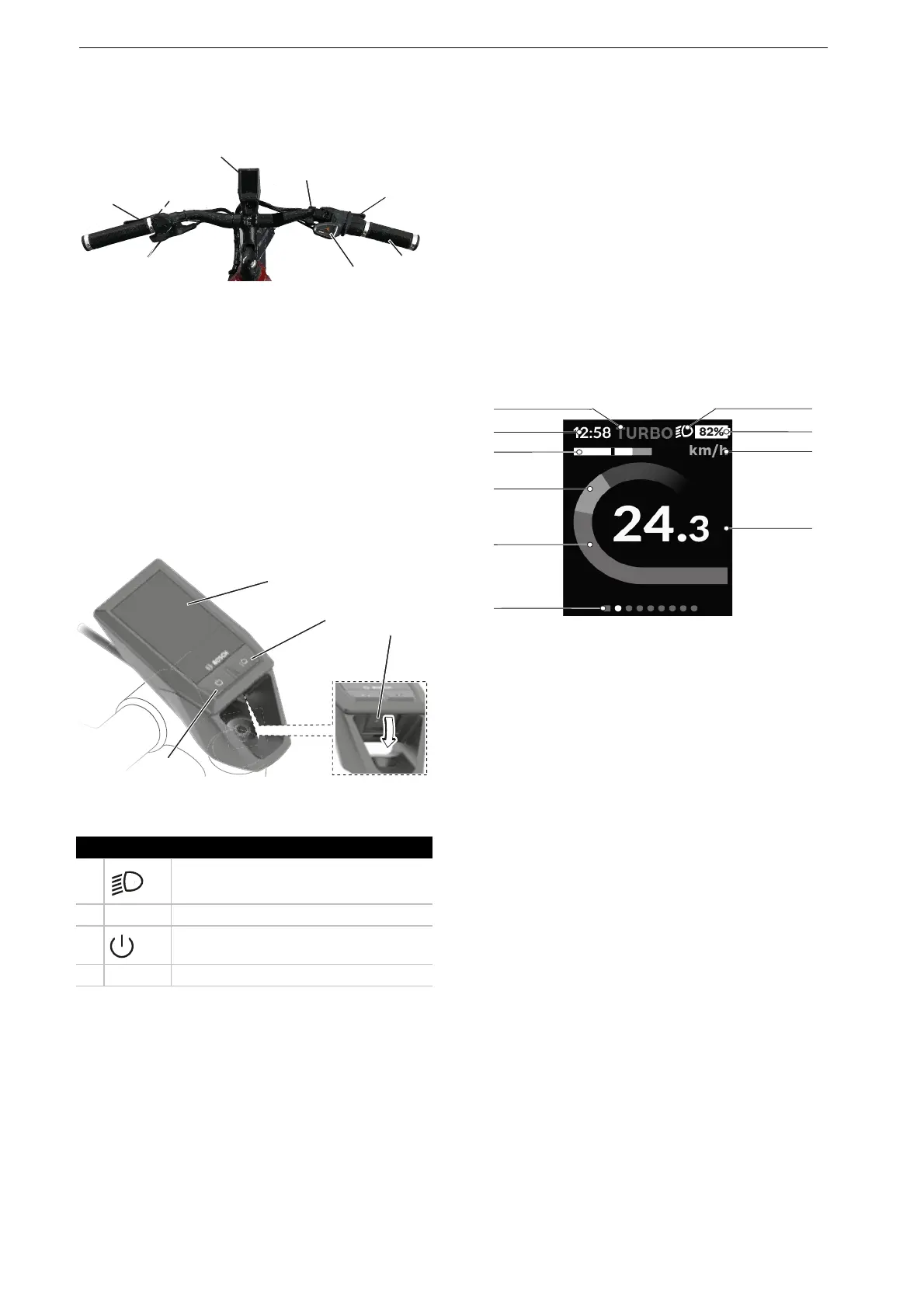

Figure 14: Detailed view of pedelec from rider position,
example
3.5.2 On-board computer
Figure 15: Overview of the on-board computer structure
and operating elements
When the on-board computer is inserted in its
mount, the following pages are accessed one
after the other:
– Start screen
– Clock and range
– Trip distance and trip time
– Power and pedalling frequency
– Average speed and maximum speed
– Trip distance, range, output and heart frequency*
– Heart frequency
– Calorie consumption and total trip distance
– Status screen
*Only if heart rate monitor is available
3.5.2.1 Start screen
The START SCREEN will appear as soon as the
on-board computer is inserted into its mount. The
START SCREEN features ten on-board
computer screens:
Figure 16: Overview of start screen
1. Unit of speed
The unit of speed is displayed in km/h or mph.
1 Rear brake lever
2Bell
3 On-board computer
4 Control panel
5 Front brake lever
6 Lever for hydraulic seat post
7 Shift indicator
8Twist grip
Symbol Use
1 Riding light button
2 Display
3 On-Off button (on-board computer)
4 USB port protective flap
Table 21: Operating elements overview
1
2
5
6
4
7
8
3
1
2
3
4
1 Unit of speed
2 Battery level indicator
3 Riding light symbol
4 Selected level of assistance indicator
5 Clock indicator
6 Power evaluation indicator
7 Own power indicator
8 Motor power indicator
9 Guidance bar
10 Speed indicator
4
1
2
3
8
9
5
6
7
10
