7.2.6 Online view of CAN channels in vehicle

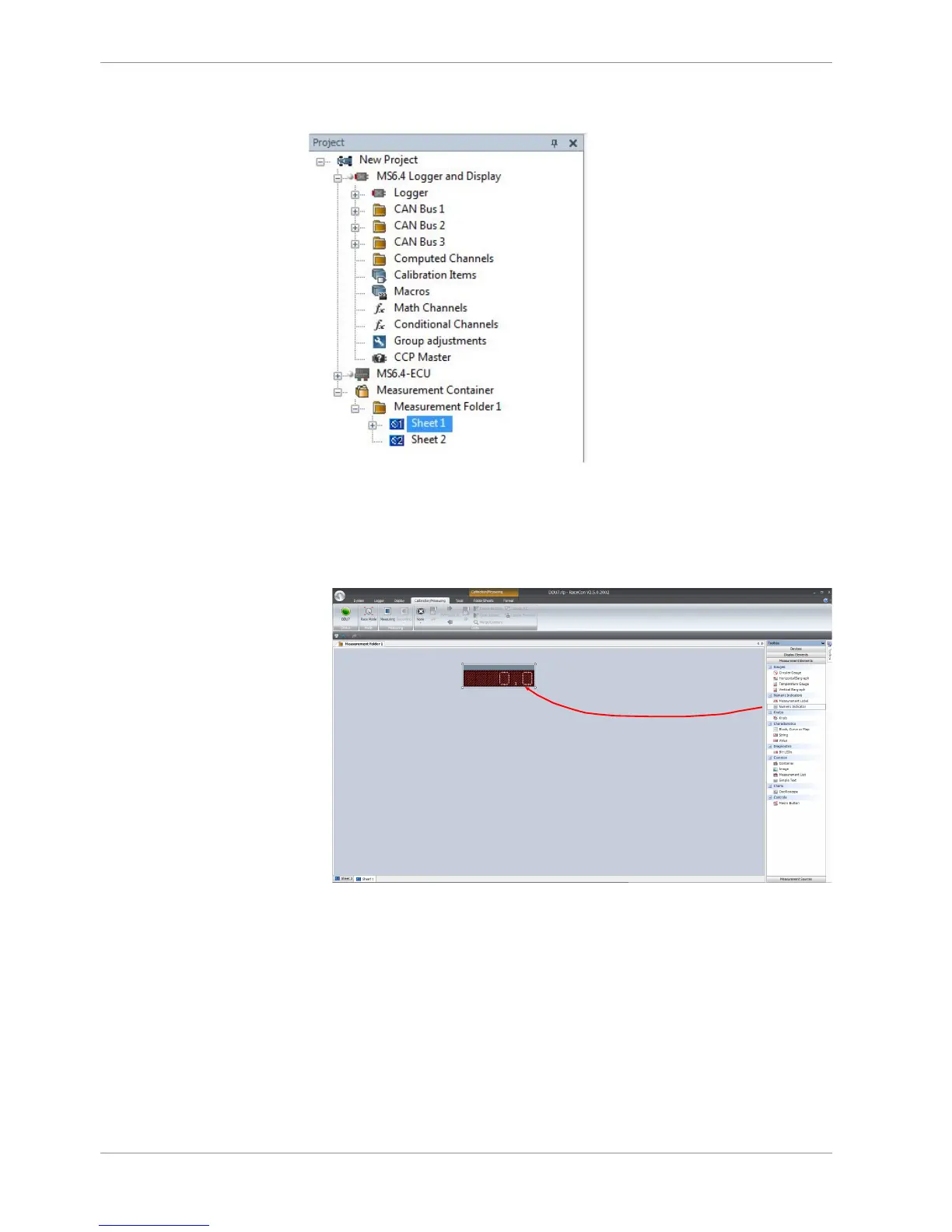

1. Double-click on ‘Sheet 1’ in Project Tree. Measurement Sheet 1 is displayed in Main
Area.
2. Click on ‘Measurement elements’ in the Toolbox.
3. Drag the desired Measurement element (e.g. Numeric Indicator) and drop it on the
Measurement Sheet.
Drag + Drop
4. Click on folder ‘CAN Input’ of desired CAN bus to display available channels.
5. Drag desired Measurement channel and drop it on the Measurement element.
