Instructions
1. Loosen the mounting screws for
the control section, optional card or
blank cover.
①②③ Mounting screws: ① CSx02.5 control section, ②
HPC01.1-MN02, ③ HPC01.1-P001

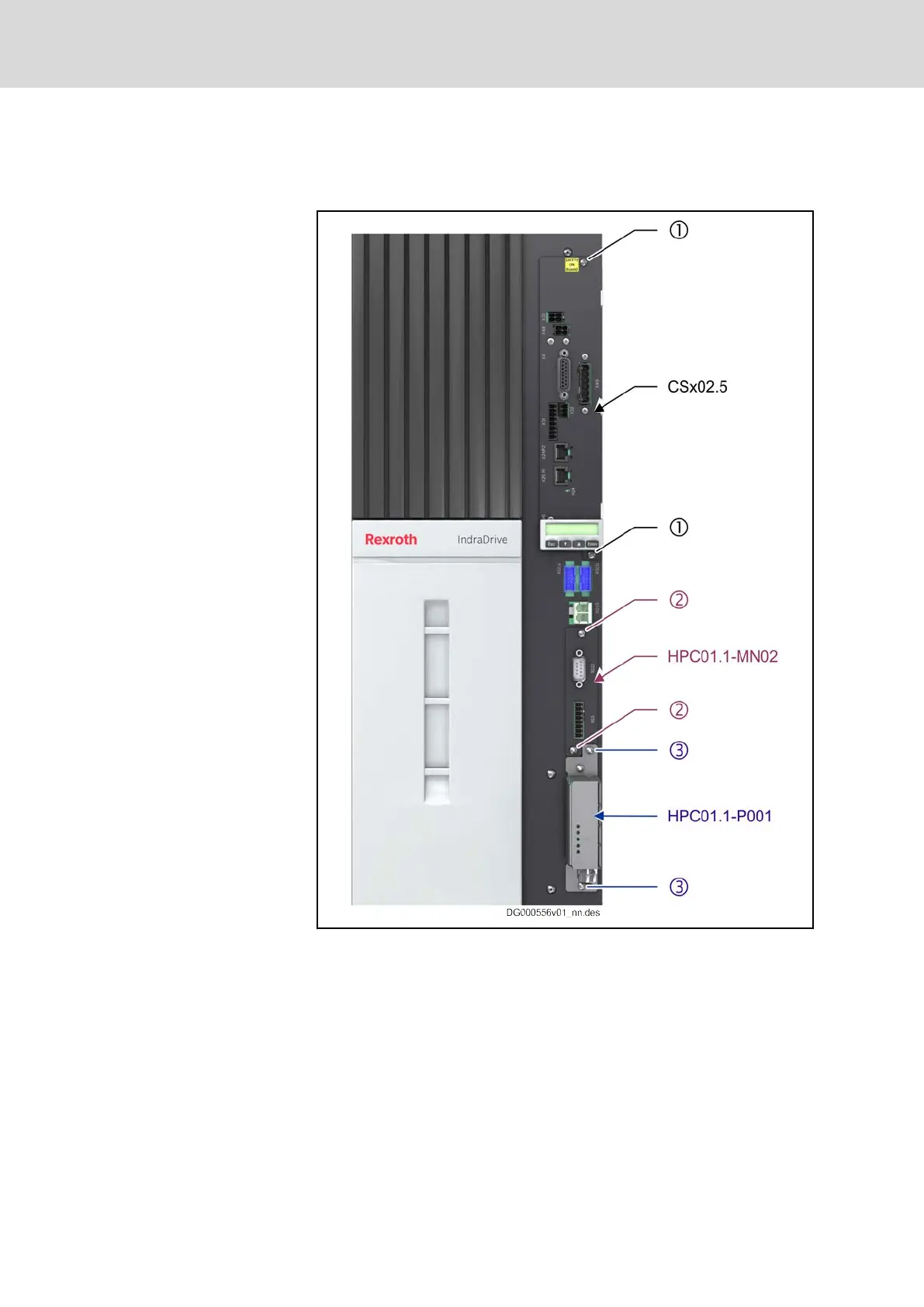

Fig. 9-2: HMU05 with control section (CSx02.5) and optional card
(HPC01)
2. Carefully remove the control section or optional card from the slot.
3. Installation is the reverse of removal.
9.5.5 Replacing the controller
Overview
A controller of the IndraDrive range consists of the components power
section, control section and programming module / control panel (incl.
firmware). The control section can be configured with additional components
Bosch Rexroth AG DOK-INDRV*-SI3-**VRS**-AP06-EN-P
Rexroth IndraDrive Integrated Safety Technology "Safe Torque Off" (as of MPx-16)
104/149
Notes on troubleshooting
