KCU, KSM 3 Safety zone beginner
KSM 1, KSM 4 Safety zone node
KSM 2 KSM without optional safety technology ⇒ not a safety
zone node
RBS0023 Connector for safety zone node at connection point
X141 (only required for KSM/KMS with optional safety
technology)
RKB0033 Cable for transmitting the safety-related signals
S 1, S 2 Signals of the individual safety zones
SI Zone 1, SI Zone 2 Safety zones
X49, X141 Connection points of safety technology

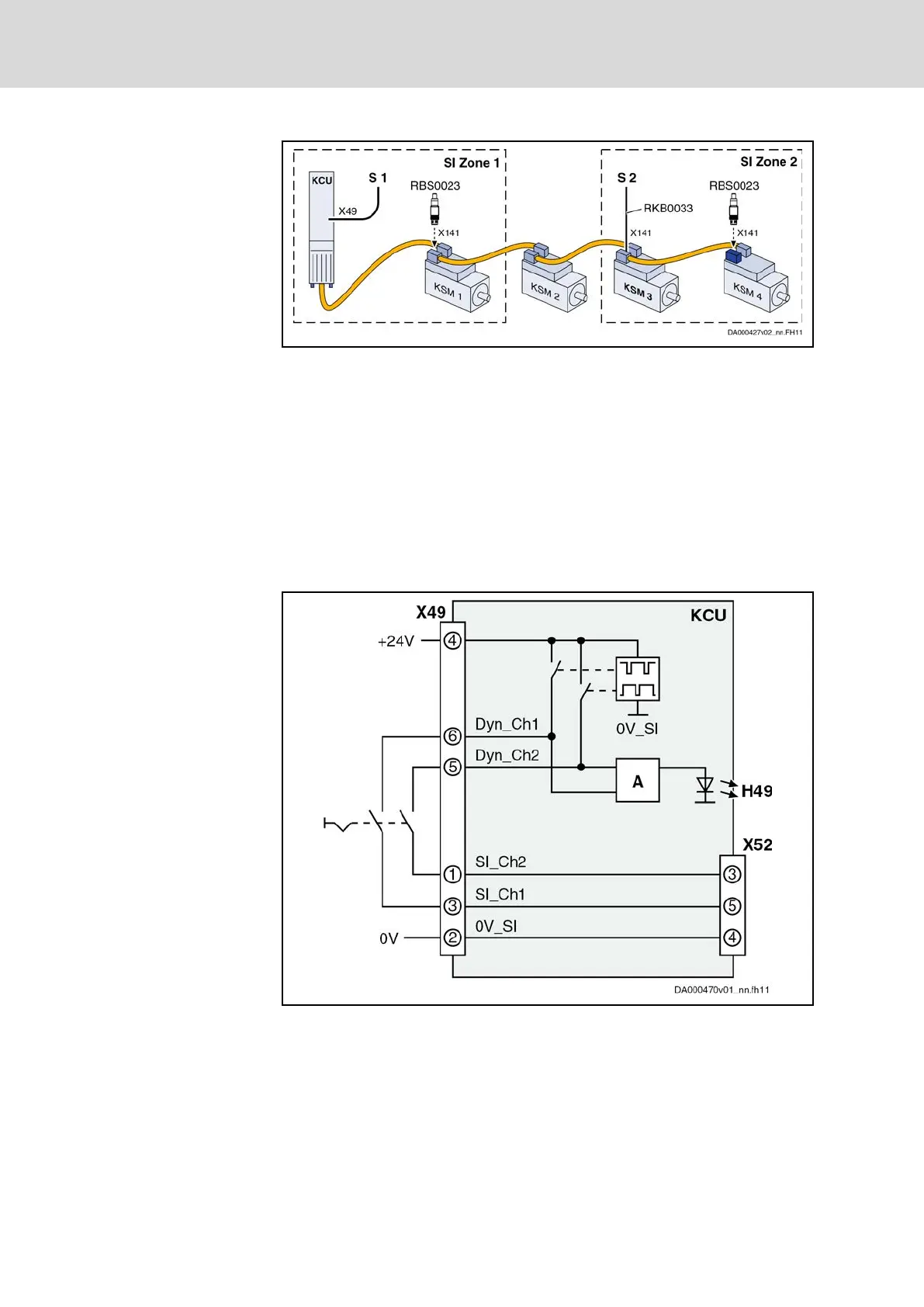

Fig. 12-10: Safety zones
Safety zone beginner
A Monitoring electronics in KCU
H49 Diagnostic display for safety technology signals
Fig. 12-11: Safety zone beginner KCU
Two options for signal input:
Bosch Rexroth AG DOK-INDRV*-SI3-**VRS**-AP06-EN-P
Rexroth IndraDrive Integrated Safety Technology "Safe Torque Off" (as of MPx-16)
140/149
Project planning
