Bosch Rexroth IndraDrive CS - Page 70

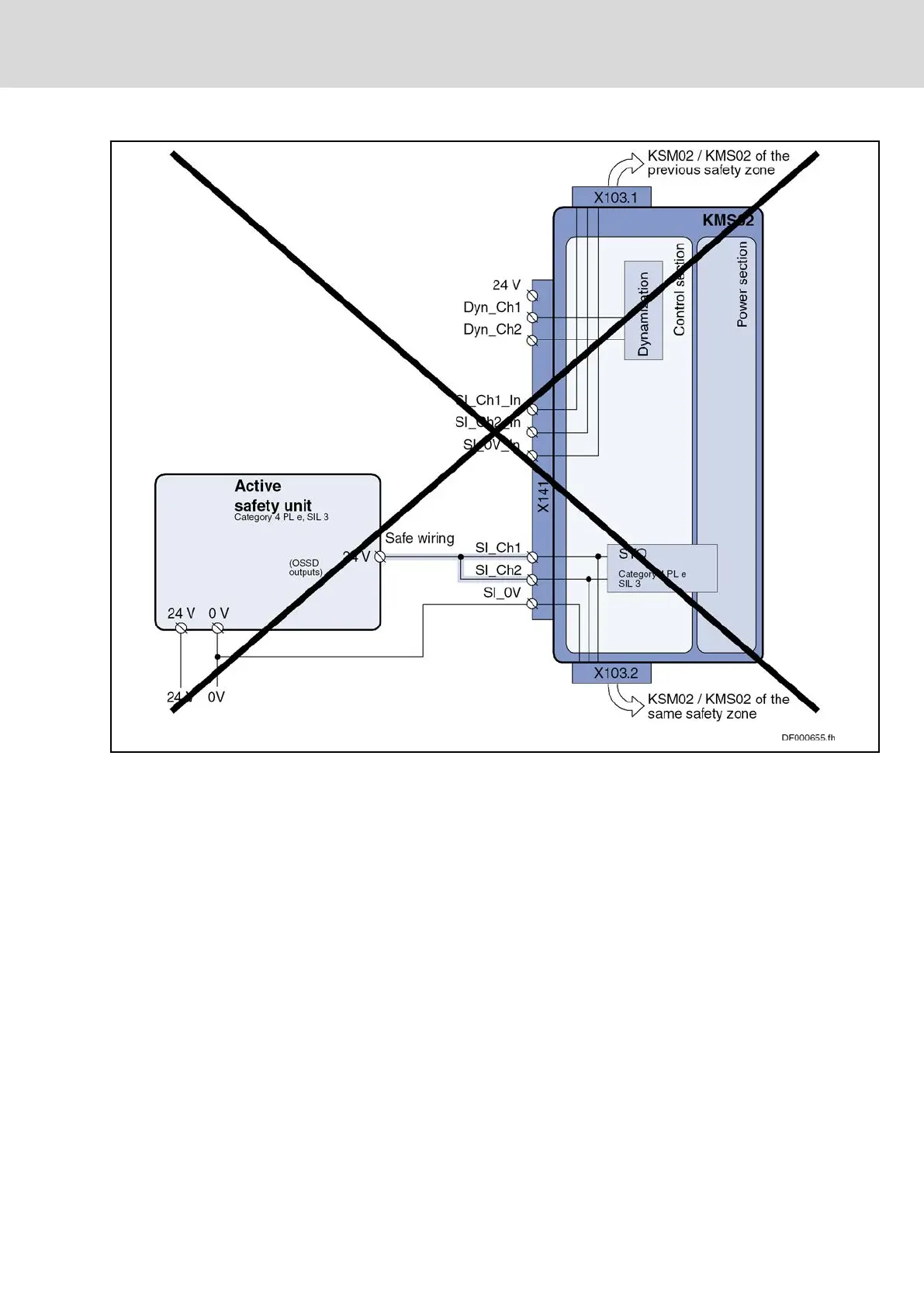

Fig. 7-9: Inadmissible single-channel wiring of IndraDrive Mi
DOK-INDRV*-SI3-**VRS**-AP06-EN-P
Rexroth IndraDrive Integrated Safety Technology "Safe Torque Off" (as of MPx-16)
Bosch Rexroth AG 67/149
Examples of application
