Drive 1 Selection of safety zone 1 via a passive safety unit at KCU;
connector RBS0023 for transmitting the selection signals is
plugged into X141
Drive 2 Without optional safety module
Drive 3 Selection of safety zone 2 via a passive safety unit
Drive 4 Node of safety zone 2; the selection signals are transmitted by
drive 3 via connector RBS0023 at X141

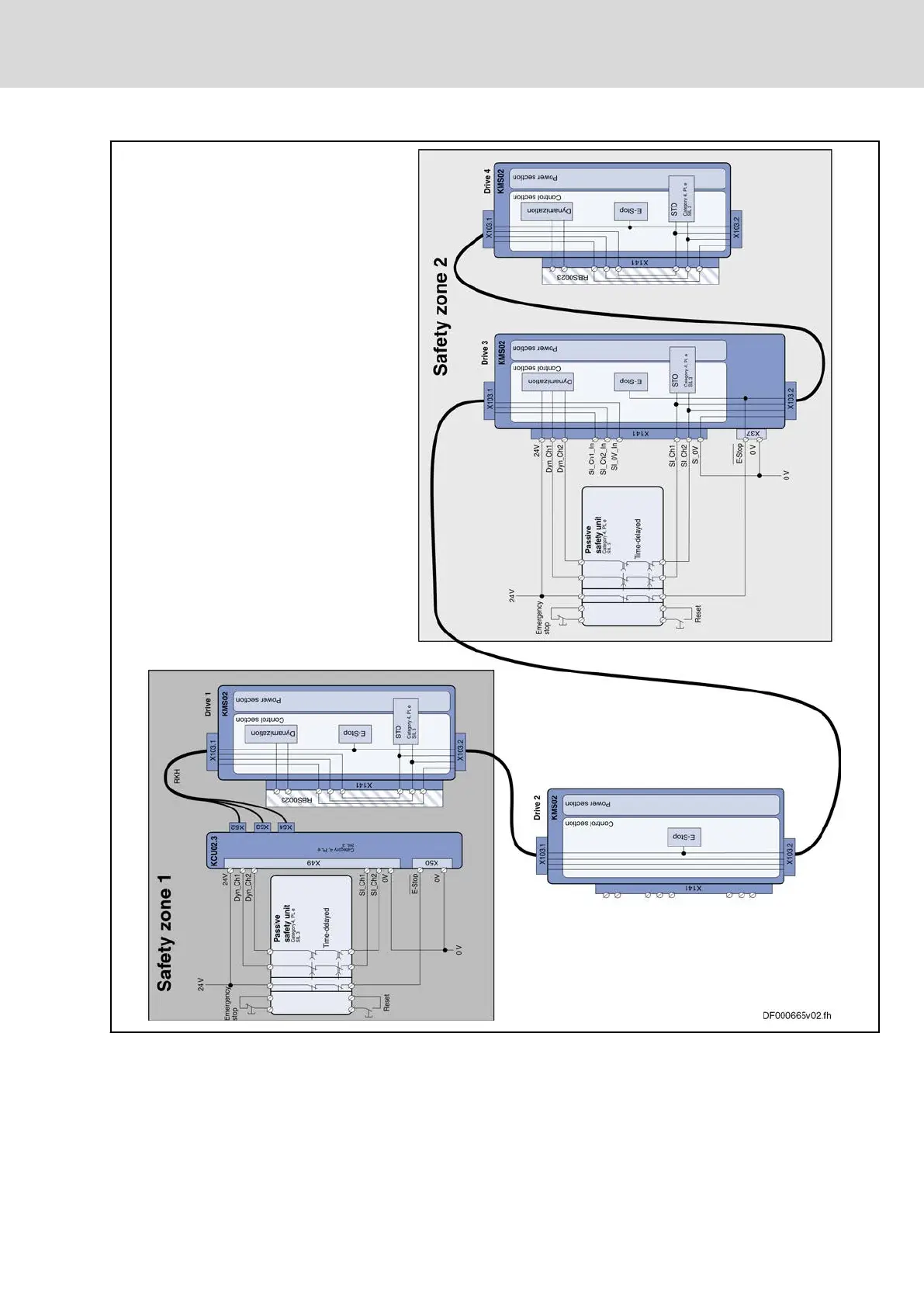

Fig. 7-18: Example of zone setup with two safety zones and E-Stop selection
DOK-INDRV*-SI3-**VRS**-AP06-EN-P
Rexroth IndraDrive Integrated Safety Technology "Safe Torque Off" (as of MPx-16)
Bosch Rexroth AG 77/149
Examples of application
