Overview of parts | RG8.0 / RG4.0 | 39 en
11. Overview of parts
11.1 Parts list - RG8.0
23
2
4
5
6
8
9
10
12
13
14
15
16
17
18
3
19
20
21
11
B
A
D
C
7
22
1
24
25
26

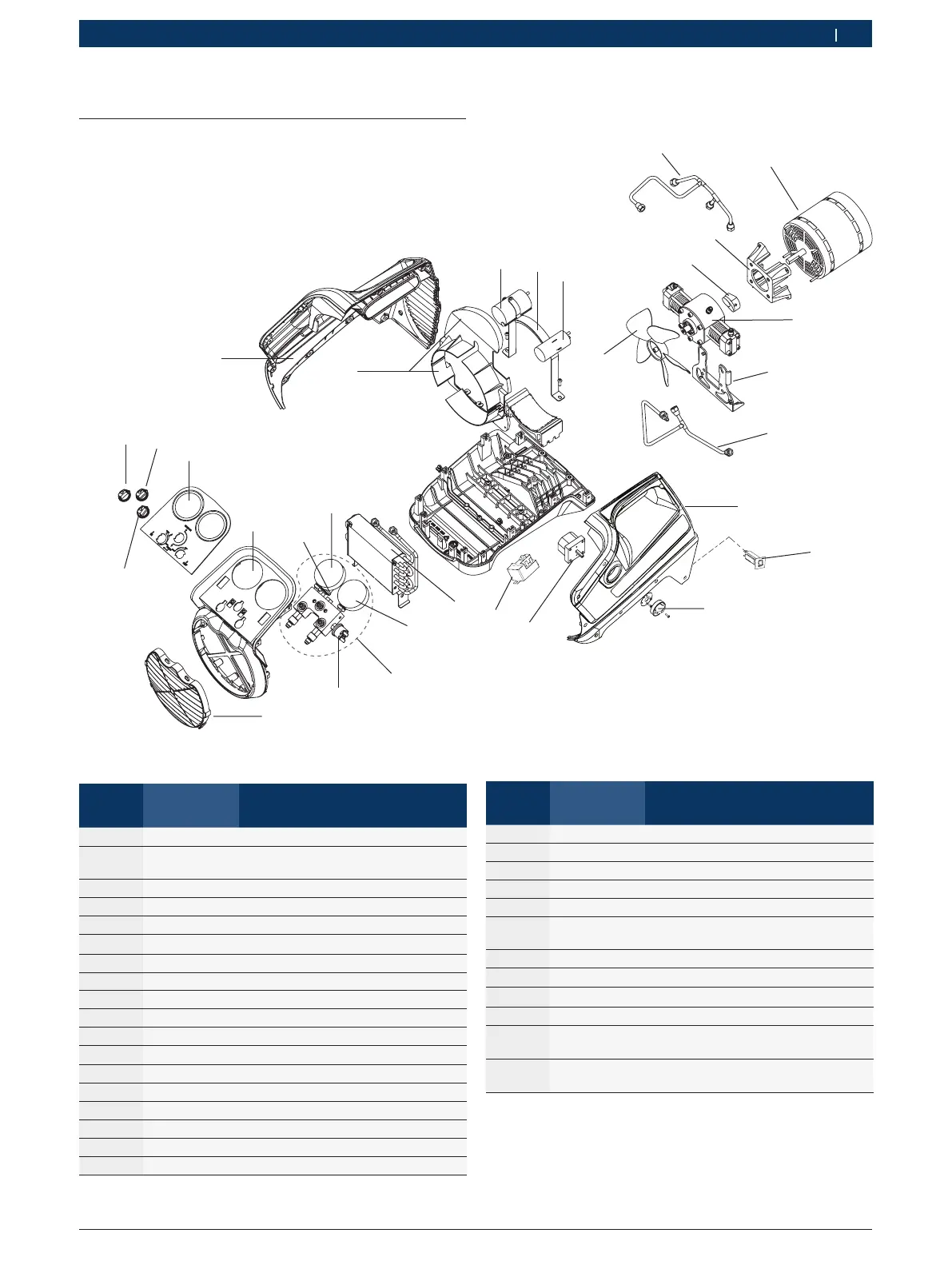

Fig. 6: Exploded view of RG8.0
Position
number
Part number
Part Description
1 RGB800100 Compressor
2 RGB800120
RGB800110
Motor 230 V
Motor 115 V
3 RGB800130 Fan blade
4 RGB480130 Pump bracket
5 RGB800140 Tube - Manifold to compressor outlet
6 RGB800270 LH enclosure
7 RGB800150 Fan blade housing
8 RGB480120 Knob - Main power switch
9 RGB480140 Main power switch
10 RGB480250 Condenser
11 RGB480150 Manifold assembly
A RGB480160 Gauge - High Pressure
B RGB480170 Gauge - Low Pressure
C RGB480180 Switch - High Pressure
D RGB480190 Switch - Low Pressure
12 RGB800160 Grill - Black
13 RGB480200 Knob - Ball valve (Red)
14 RGB480210 Knob - Ball valve (Blue)
Position
number
Part number
Part Description
15 RGB480220 Knob - Ball valve (Black)
16 RGB480230 HMI cover
17 RGB480240 Front panel
18 RGB480260 RH enclosure
19 RGB800170 Run capacitor
20 RGB800280
RGB800290
Motor bracket assembly 230 V
Motor bracket assembly 115 V
21 RGB800180 Start capacitor (only for 230 V)
22 RGB800190 Interface - Motor and compressor
23 RGB800200 Tube- Manifold to compressor inlet
24 RGB800220 Coupler (Counterweight)
25 RGB480310
RGB800320
Circuit breaker 8 A, 230 V
Circuit breaker 15 A, 115 V
26 RGB800300
RGB800310
Start relay 230 V
Start relay 115 V
