4. Product description
4.1 Application
The RG8.0 / RG4.0 recovers refrigerant from A/C or
refrigeration system and pumps to an external
refrigerant storage cylinder.
4.2 Scope of delivery
Description
Recovery unit RG 8.0 or RG 4.0
Power cable
Filter drier
Filter hose
Original instructions
4.3 Description of unit
1
2
3
5
6
7
4
9
10
8
15
A
M
P
11
12
9

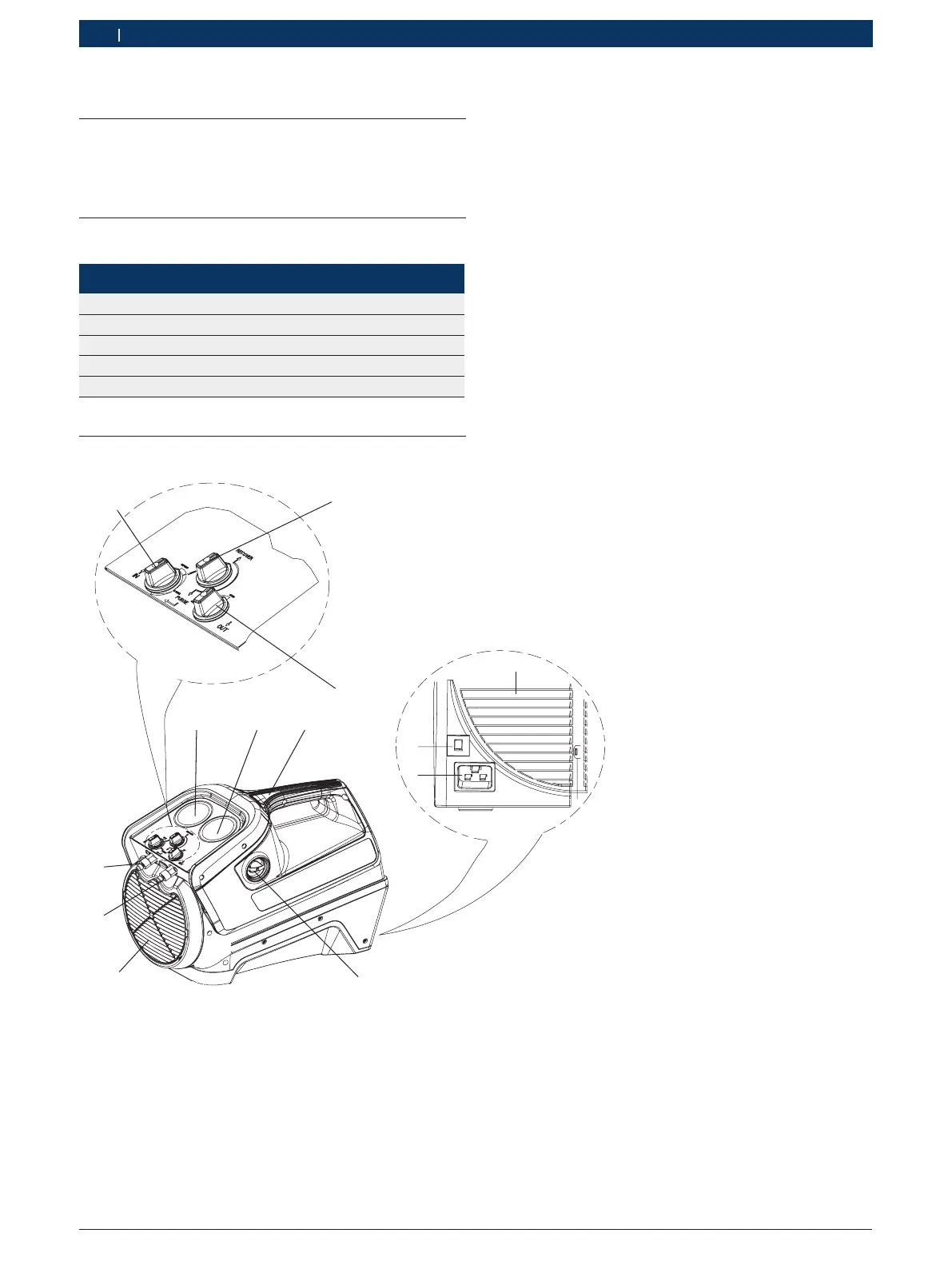

Fig. 1: Overview of RG8.0 / RG4.0
1 Inlet port
2 Inlet control valve
3 Recovery / purge valve
4 Outlet control valve
5 Inlet pressure gauge
6 Outlet pressure gauge
7 Handle
8 Main switch
9 Louvres
10 Outlet port
11 Circuit breaker
12 Power receptacle
