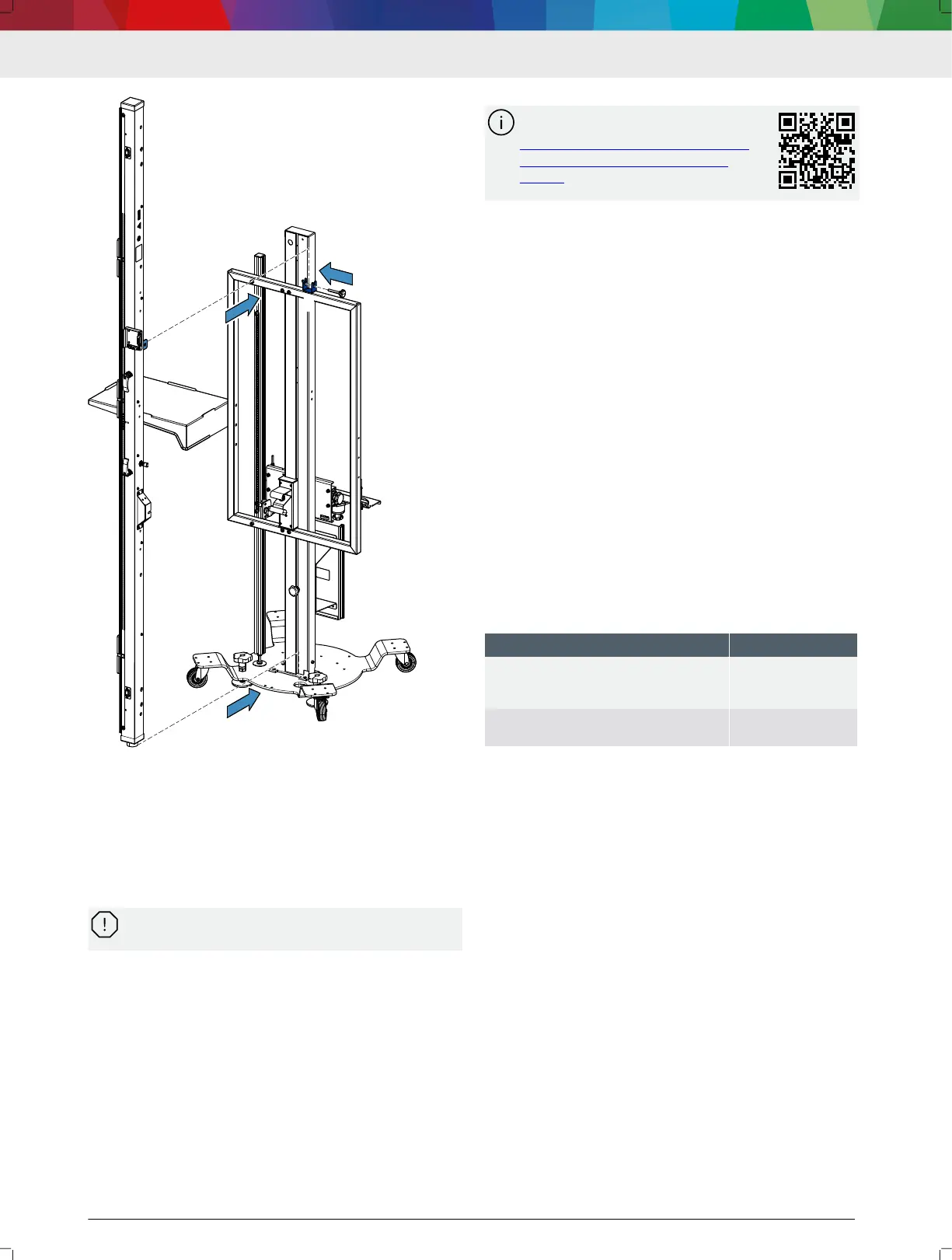

5. Insert mount (A) on the indicator bar in mount (B)
on the alignment frame
6.
Align the indicator bar so that the rubber buffer is
located in the provided recess in the base plate.
7. Tighten the indicator bar with the star bolt screw.
---
6. Maintenance
---
6.1
Cleaning
Coarse workshop rags and abrasive cleaning
agents may damage the product.
 Use only neutral cleaning agents and soft cloths to
clean the product.

Clean the lenses of the cameras with soft and dry
cloths.
---
6.2
Spare parts
 For information on spare parts, repair and component
replacement, see the SCT 418 Help Center.
---
SCT 418 Help Center:
https://help.boschdiagnostics.com/
SCT418/#/home/spareparts/en/
default
---
7.
Decommissioning
---
7.1
Changing location
 If the SCT 418 is passed on, all the documentation in‐
cluded in the scope of delivery must be handed over
together with the unit.

The SCT 418 is only ever to be transported in the
original or equivalent packaging.
 Heed the notes on initial commissioning.
---
7.2
Temporary shutdown
 Disconnect the power supply from the laptop/tablet
and remove the laptop/tablet from the shelf.
  10 "Moving the indicator bar to parking position" .
---
7.3
Disposal
 Dismantle the SCT 418 and sort out and dispose of
the different materials in accordance with the applica‐
ble regulations.
---
8. Technical data
---
8.1
SCT 418 specications
Property Value
SCT 418 height x width x depth dimen‐
sions
2606 mm x
1855 mm x 702 mm
(103" x 73" x 28")
Weight (without accessories) 55.85 kg
(123.13 lbs)
---
