2.4 Intended use
The SCT 418 is a calibration device for calibrating ad‐
vanced driver assistance systems.
With SCT 418, calibration boards for the calibration of
front camera sensorscan be aligned in a vehicle-specic
manner.
SCT 418 is positioned by using the
"Bosch ADAS Positioning" software.
Diagnostic software such as "ESI[tronic] 2.0" is needed
for calibrating advanced driver assistance systems.
---
2.5
Foreseeable misuse
 SCT 418 is pulled or pushed by the measuring bar to
change the position.
 Only move SCT 418 using the alignment frame to
change the position.
The measuring bar or calibration device can be
damaged if the SCT 418 is pulled or pushed by
the measuring bar.
---

SCT 418 is used as a means of transport.

SCT 418 may only be used for alignment of calibra‐
tion boards.
---

The measuring bar of SCT 418 is used for leaning or
sitting.

Only load the measuring bar with calibration boards
(max. 10 Kg).
---
2.6 Prerequisites
Resting surface of the vehicle
•
Leveled
•
Maximum inclination: 0.1°
• Maximum unevenness: 10 mm
• No direct light exposure
• Adequate lighting
---
SCT 418 resting surface
•
The same vertical level as the resting surface of the
vehicle, ±10 mm maximum
• Maximum inclination: 1°
•
Maximum unevenness: 5 mm
•
No direct light exposure
•
Adequate lighting
---

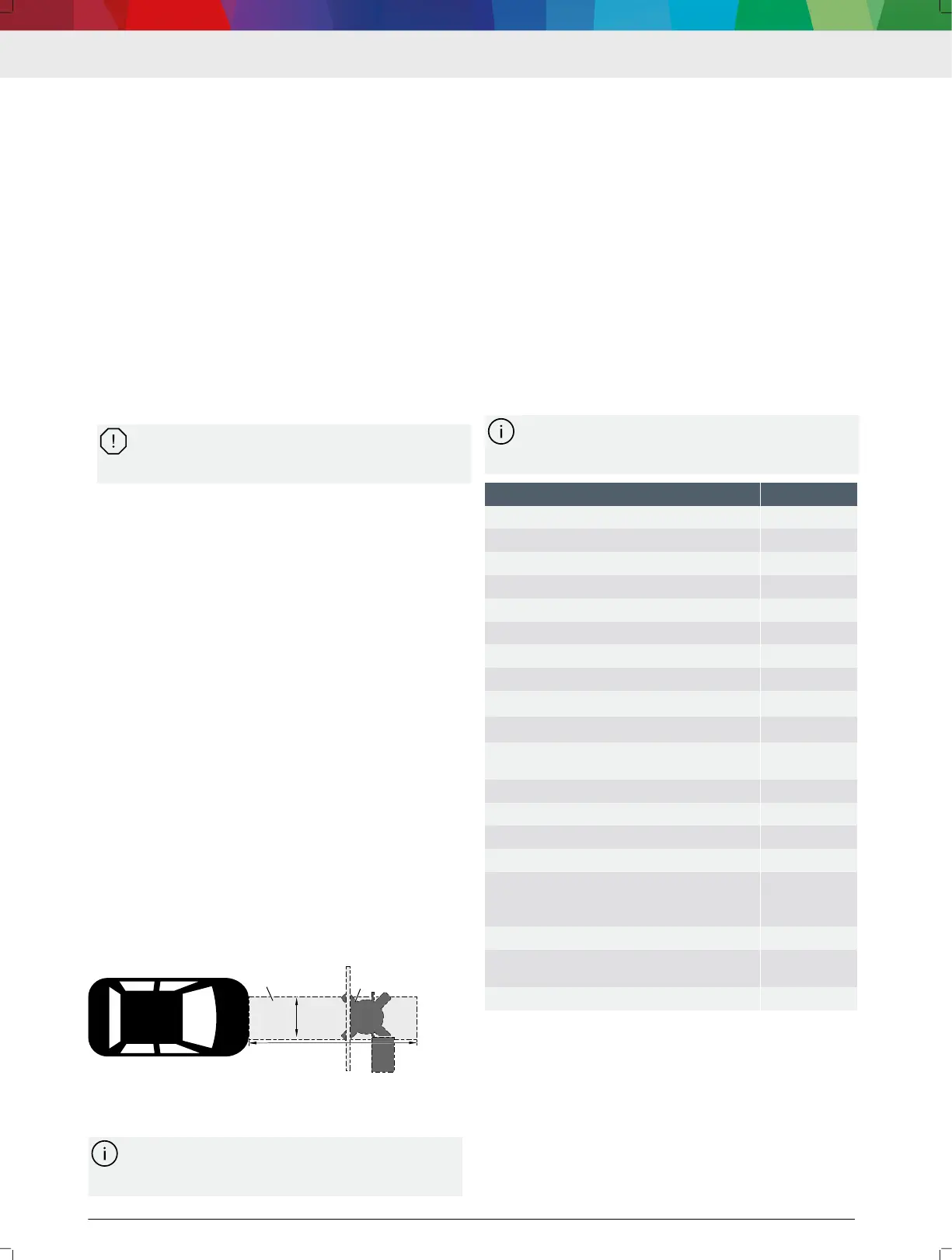

Front camera calibration
5 m
1 m
1
2
(1) Area where SCT 418 is set up
(2) SCT 418 resting surface (example)
---
Software "Bosch ADAS Positioning"
We recommend and support the DCU 220 as a
laptop or the ADS 625X tablet for use with the
"Bosch ADAS Positioning" software.
• Operating system: Windows 10
• Display resolution: 1024 x 600 pixels or higher
• USB ports: recommended 1 x USB 3.0, min. 1 x
USB 2.0
---
Diagnostic software
"ESI[tronic] 2.0" software with information type SD
(control unit diagnosis) to be able to calibrate ad‐
vanced driver assistance systems.
---
2.7 Warranty and liability
No modications may be carried out on our products.
Our products may only be used with genuine accesso‐
ries and genuine spare parts. Otherwise, all warranty
claims will be rendered null and void.
---
3. Product description
---
3.1
Scope of delivery
The scope of delivery depends on the product
variant as well as the special accessories ordered
and may deviate from the following list.
---
Denomination Order number
Base plate 1 688 000 373
Column 1 688 020 146
Indicator bar 1 683 050 054
Ruler 1 682 329 111
Alignment unit 1 681 032 137
Reference board adapter (4x) 1 687 010 635
Calibration board (2x) 1 681 098 014
Calibration board (2x) 1 681 098 019
Calibration board CTA 204-1 (2x)
1)
1 688 130 297
Calibration board CTA 205-1 (3x)
1)
1 688 130 349
Support clamp for calibration board
1 681 098 019 (2x)
1 688 040 335
Alignment frame 1 688 005 286
Shelf for laptop/tablet 1 681 321 379
Contact plate 1 681 320 095
Wheel holder (4x) 1 688 120 190
Mount for large calibration boards with retain‐
ing bracket (2x), retaining adapter X (2x) and
calibration board retainer T
1)
1 688 005 291
QR code to initialize the cameras (2x) –
USB stick with the "Bosch ADAS Positioning"
software
1 687 370 328
Operating instructions –
---
1)
Quantity depends on ordered part number (partly special ac‐
cessories)
---
