Solution 16
plus
6
Bosch Security Systems 09/06 BLCC100R
Quick Start Guide

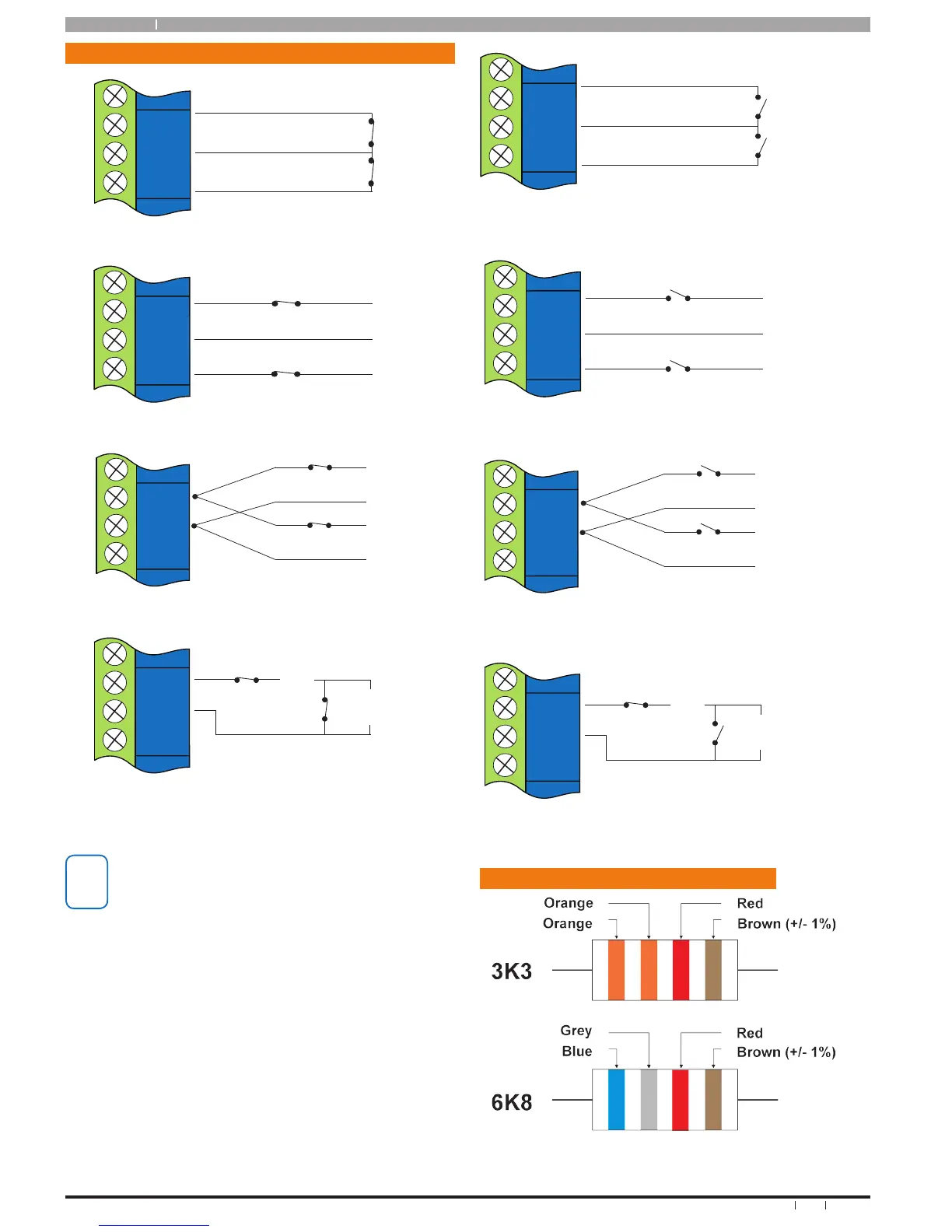

Wi ring Diagra ms
ZONE 2
N/C
N/C
ZONE 1
Figure 3: N/C No EOL Zone
ZONE 2
ZONE 1
N/C
N/C
ALARM
ALARM
Figure 4: N/C Single EOL Zone
(6K8 EOL)
(3K3 EOL)
N/C
N/C
ALARM
ALARM
ZONE 1
ZONE 9
Figure 5: N/C Split EOL Zone
1
2
TAMPER
(6K8 EOL)
TAMPER
(3K3 EOL)
N/C
N/C
ALARM
ZONE 1
Figure 6: N/C Zone With Tamper
The Above diagrams display zone configurations
using Normally-Closed Alarm contacts and
Normally-Open Alarm Contacts. When using
Normally-Open Alarm Contacts you must select
Inverted Seal for each zone in MENU 3-1-8.
A shorted loop is a tamper condition for all EOL
zone configurations.
2
ZONE 2
N/O
N/O
ZONE 1
Figure 7: N/O No EOL Zone
ZONE 2
ZONE 1
N/O
N/O
ALARM
ALARM
Figure 8: N/O Single EOL Zone
(6K8 EOL)
(3K3 EOL)
N/O
N/O
ALARM
ALARM
ZONE 9
ZONE 1
Figure 9: N/O Split EOL Zone
TAMPER
(6K8 EOL)
TAMPER
(3K3 EOL)
N/C
N/O
ALARM
ZONE 1
Figure 10: N/O Zone With Tamper
EOL R esist or Col our Co de (4 Band )
Figure 11: EOL Resistor Colour Chart
