13 | Online Measurement and Calibration
70/136 Vehicle_Control_Unit_VCU_Manual Bosch Motorsport
13 Online Measurement and Calibration
Vehicle Control Unit VCU configuration
– System configuration (channel + display configuration, CAN I/O, etc.) is stored in the
Vehicle Control Unit VCU
– Use RaceCon to create and download configuration from the PC to Vehicle Control
Unit VCU Communication interface: Ethernet
– Communication protocol: XCP
Online Measurement and Calibration
– System status and diagnosis
– Check and calibrate sensors in the vehicle
– Live display of sensor values on the PC
– Use RaceCon for diagnosis, online measurement and calibration
– Communication interface: Ethernet
– Communication protocol: XCP
13.1 Setting up an online measurement
Vehicle Control Unit VCU supports online measurement of sensor values and diagnostic
variables.

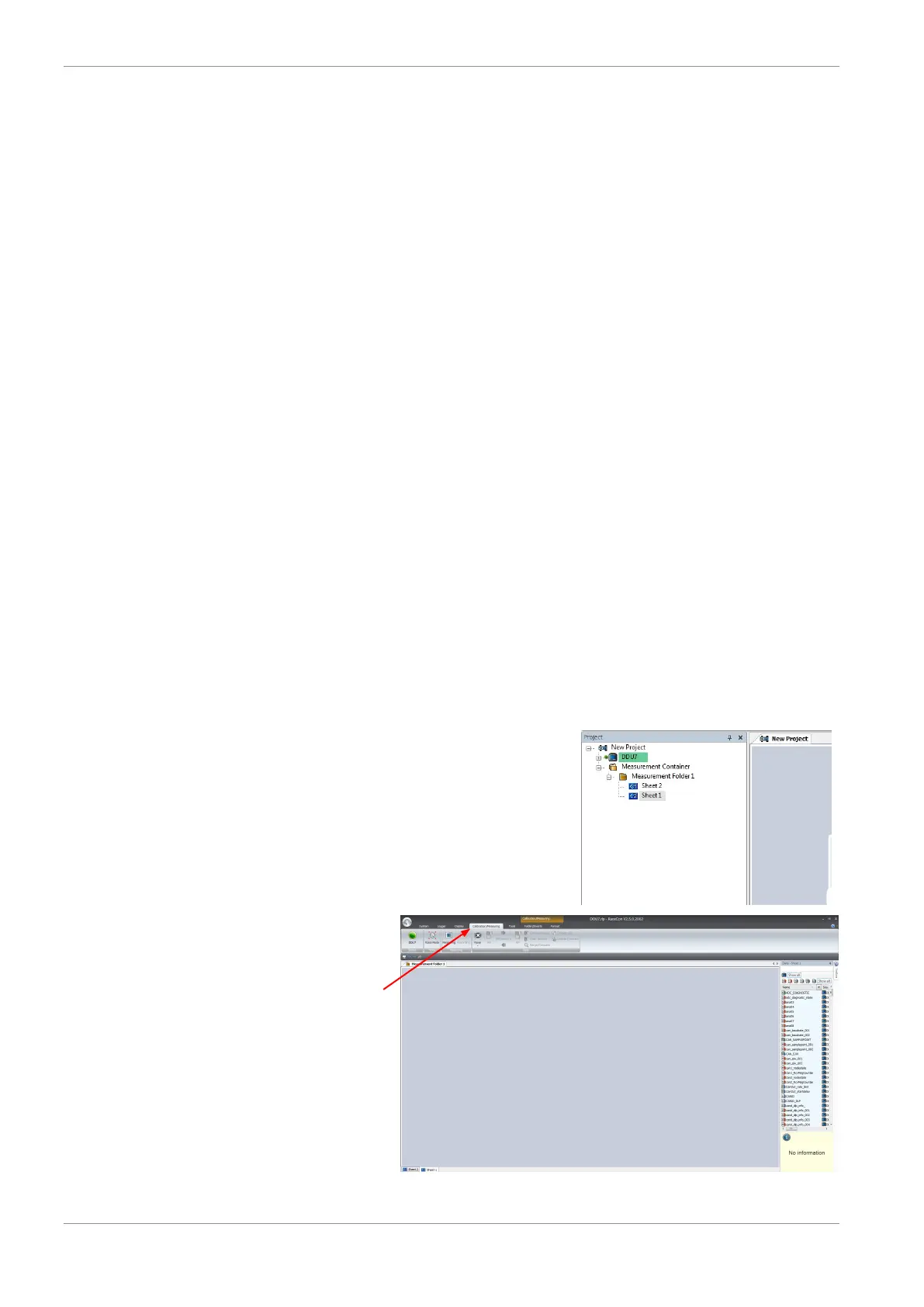

1. Expand ‘Measurement Container’ and ‘Measurement Folder 1’ in the Project Tree and
double-click on ‘Sheet1’. Alternatively, click on the ‘Calibration/Measuring’ tab to
open the window directly.
‘Sheet 1’ opens in a new ‘Calibration/Measuring’ window.
RaceCon changes
automatically
to "Calibration/
Measuring"
