13 | Online Measurement and Calibration
72/136 Vehicle_Control_Unit_VCU_Manual Bosch Motorsport
If the Vehicle Control Unit VCU shows the green status, the value is displayed.
Drag + Drop

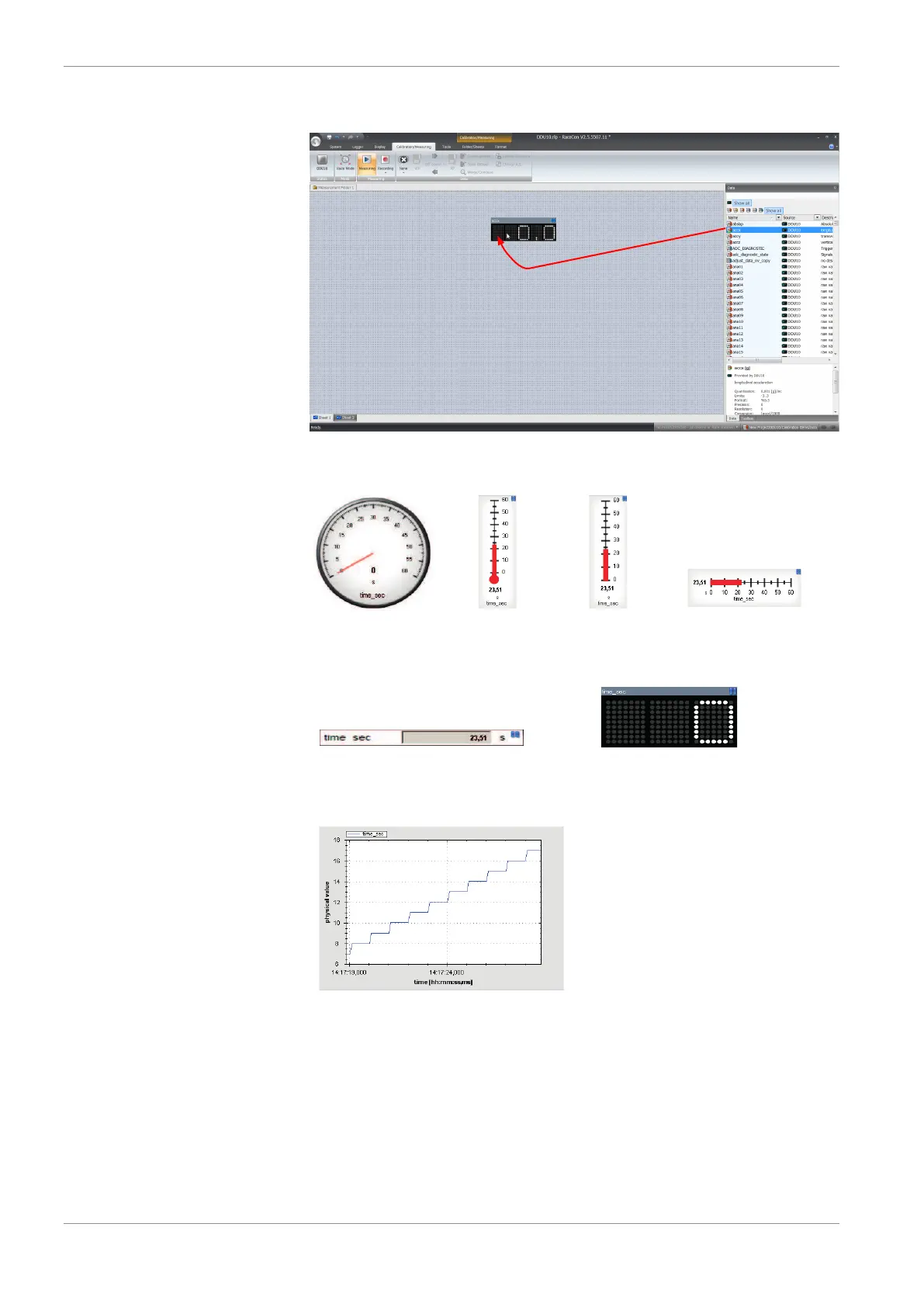

RaceCon offers different types of measurement elements:
Vertical Bar
graph style
Temperature
gauge
Horizontal Bar
graph style
Circular gauge
Numeric indicator
Measurement label
Oscilloscope (Chart)
13.1.1 Automatic creation of measurement sheets
RaceCon can create measurement sheets automatically.
You can create and use measurement sheets with the Vehicle Control Unit VCU as well as
with all other devices connected to RaceCon.
