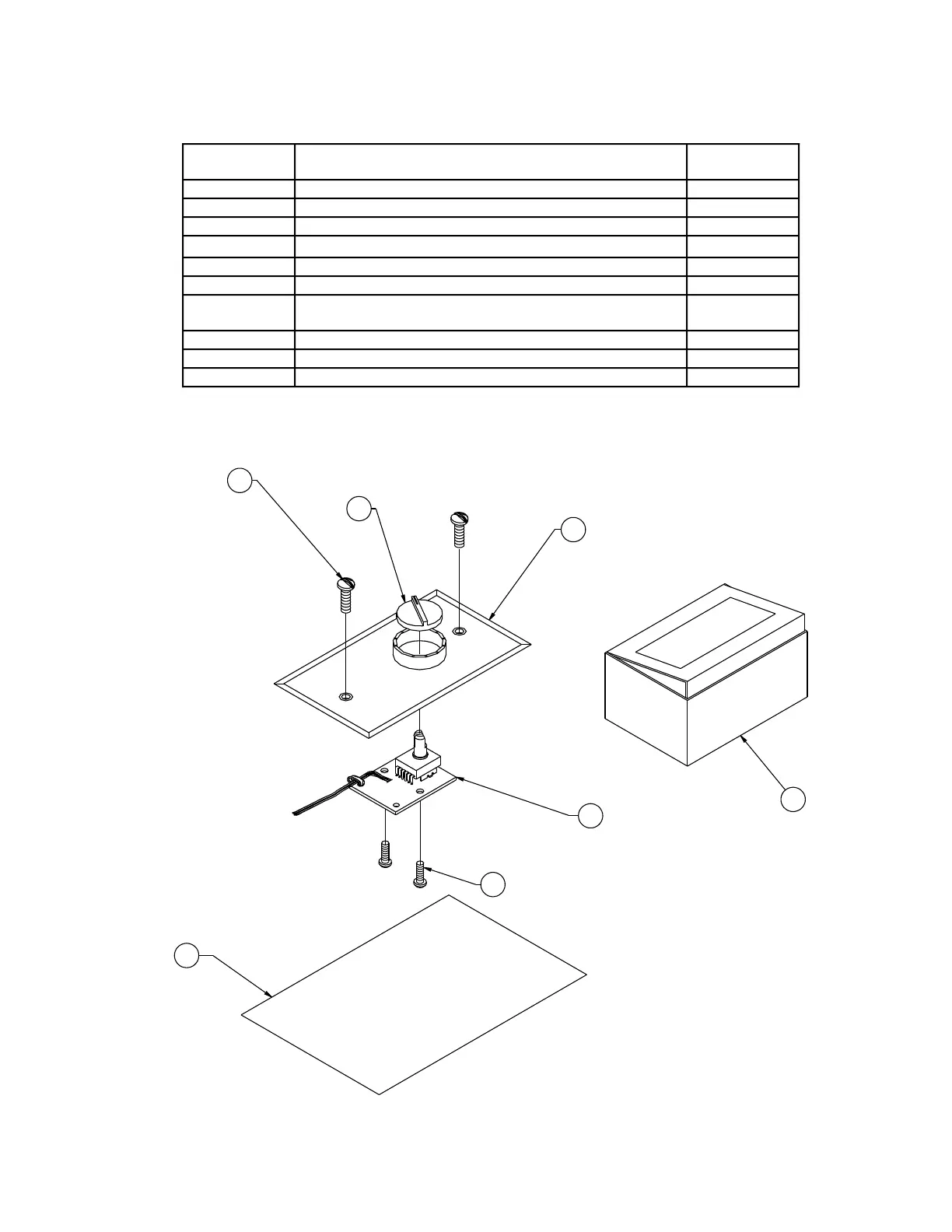

Figure 13. Remote Volume Control Exploded View
PART LIST
6
7
5
1
4
3
2
Remote Volume Control (see Figure 13)
Item
Number
Description Part
Number
1 PCB Assy, Rem, BMS, Volume 187983
2 Wallplate, RVC, (US, CA, AUS) 188611
2 Wallplate, No Switch, RVC, (EURO, UK) 188610
2
Cover, Remote, FreeSpace
®
6 (Japan)
178102
3 Knob, Remote, FreeSpace 6 (All Models) 178104
4 Screw, Mach, 6-32x1, .00, ovalhd (US/CA) 178115-16
4 Screw, Mach, M3, 5x25mm, Flat, XREC (EURO,
UK, AUS, JAPAN)
178116-25
5 Screw, Tapp, 6-13x.5, PAN, XREC 173555-08
6 Bag, Poly, 9.38x6x2 mil 100278
7 Carton, D/C, Interlock Kit, Cann 131843
