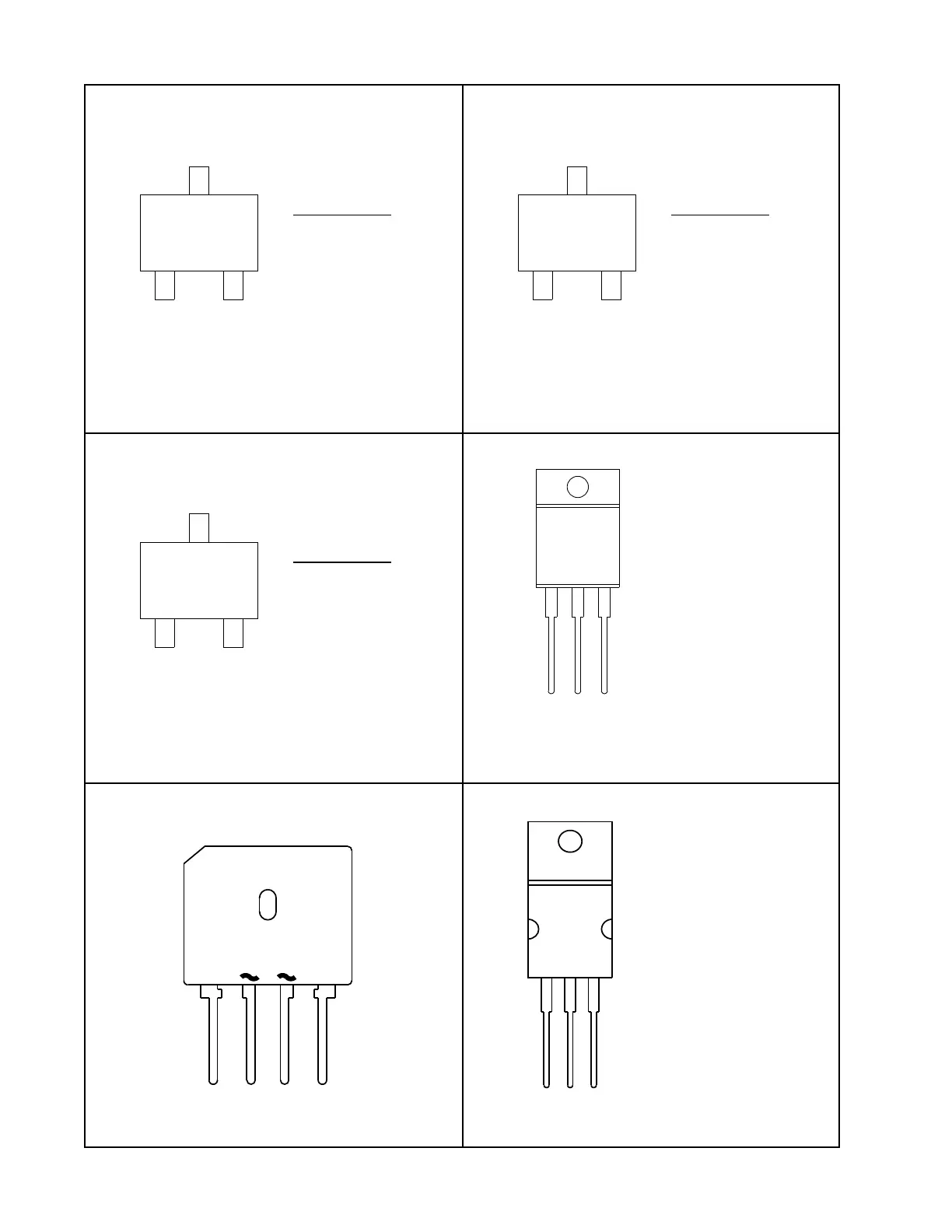

DEVICE PIN-OUT DIAGRAMS
1 2
3
PIN FUNCTION

1. ANODE
2. NO CONNECTION
3. CATHODE
Bose
®
P/N: 148333, ZENER, 9.1V, SOT-23
Bose P/N: 148582, MMBD914LT1
1 2
3
PIN FUNCTION

1. ANODE
2. NO CONNECTION
3. CATHODE
Bose P/N: 148596, MMBT3906
1 2
3
PIN FUNCTION

1. BASE
2. EMITTER
3. COLLECTOR
123
IC, Volt Reg,
12V, Neg,
TO-220

Pin 1. Ground
Pin 2. Input
Pin 3. Output
+-
Bose P/N: 170214, GBU6 Rectifier
123
PIN 1. BASE
PIN 2. COLLECTOR
PIN 3. EMITTER
Bose P/N: 172284, TIP141T
Bose P/N: 149009-12, LM 7912
