Bose L1 Compact Service Manual

12
Main Part List
L1 Compact Power Stand, continued (see Figure 3)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Item
Number
Description Bose
®
Part
Number
Vendor Part Number Note
- PCB Assy, COB COM
(Includes: PRE-AMP ASSY/3.5MM
Jack Input Card/Line Output Card)
317371-000S SVC-CAJUN01+COB 2
- PCB Assy, IN COM
(3.5MM Jack Input Card)
319967-000S SVC-CAJUN01+IN 2
- PCB Assy, OUT COM
(Line Output Card)
319968-000S SVC-CAJUN01+OUT 2

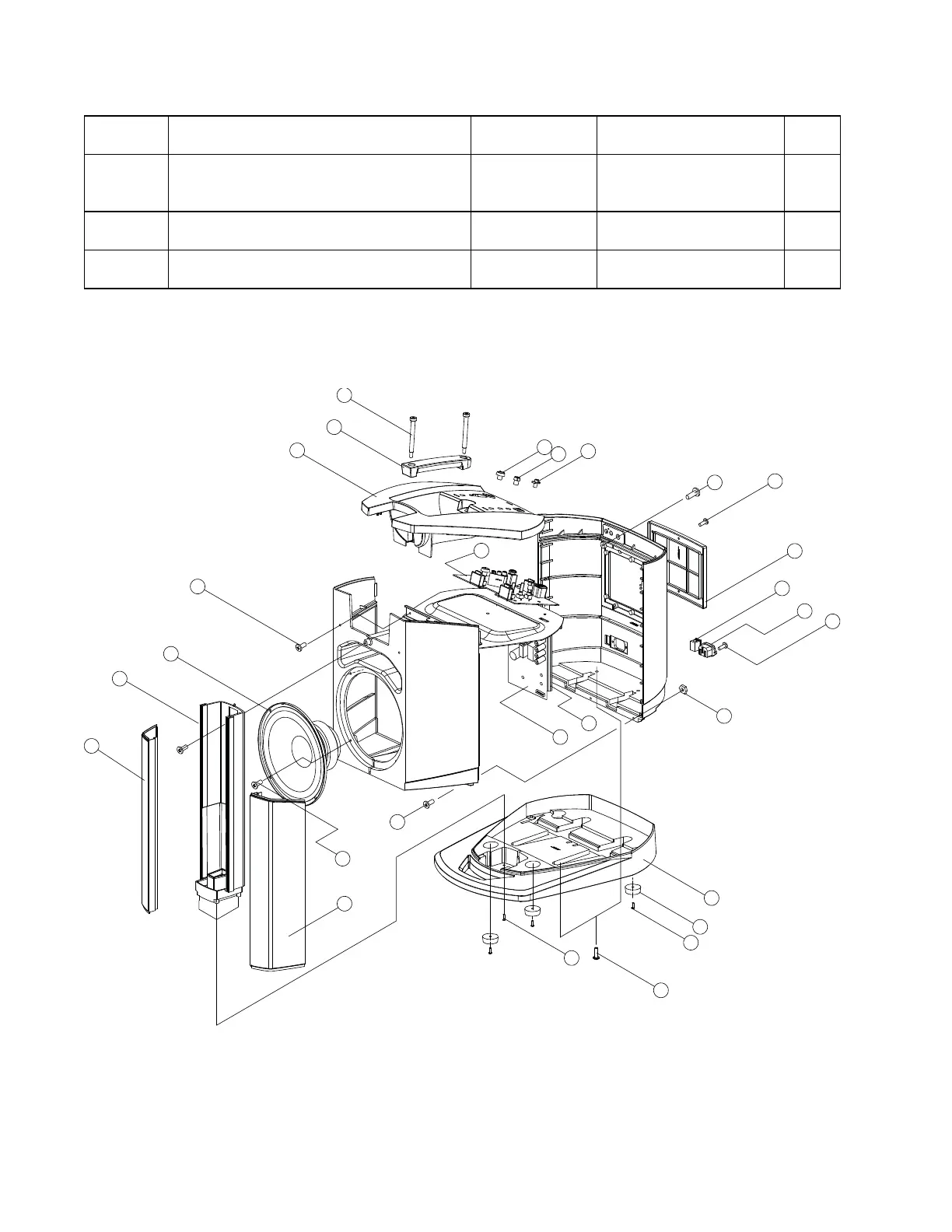

Figure 3. L1 Compact Power Stand Exploded View
