Bose L1 Compact Service Manual

38
Disassembly Procedures
L1 Compact Power Stand Procedures
CAUTION: The SMD integrated circuits used
on the Input / Output PCB are extremely
sensitive to ESD damage. Be sure to use an
approved and tested ESD strap that is
properly grounded to your work bench before
attempting disassembly or repair of the L1
Compact Power Stand.

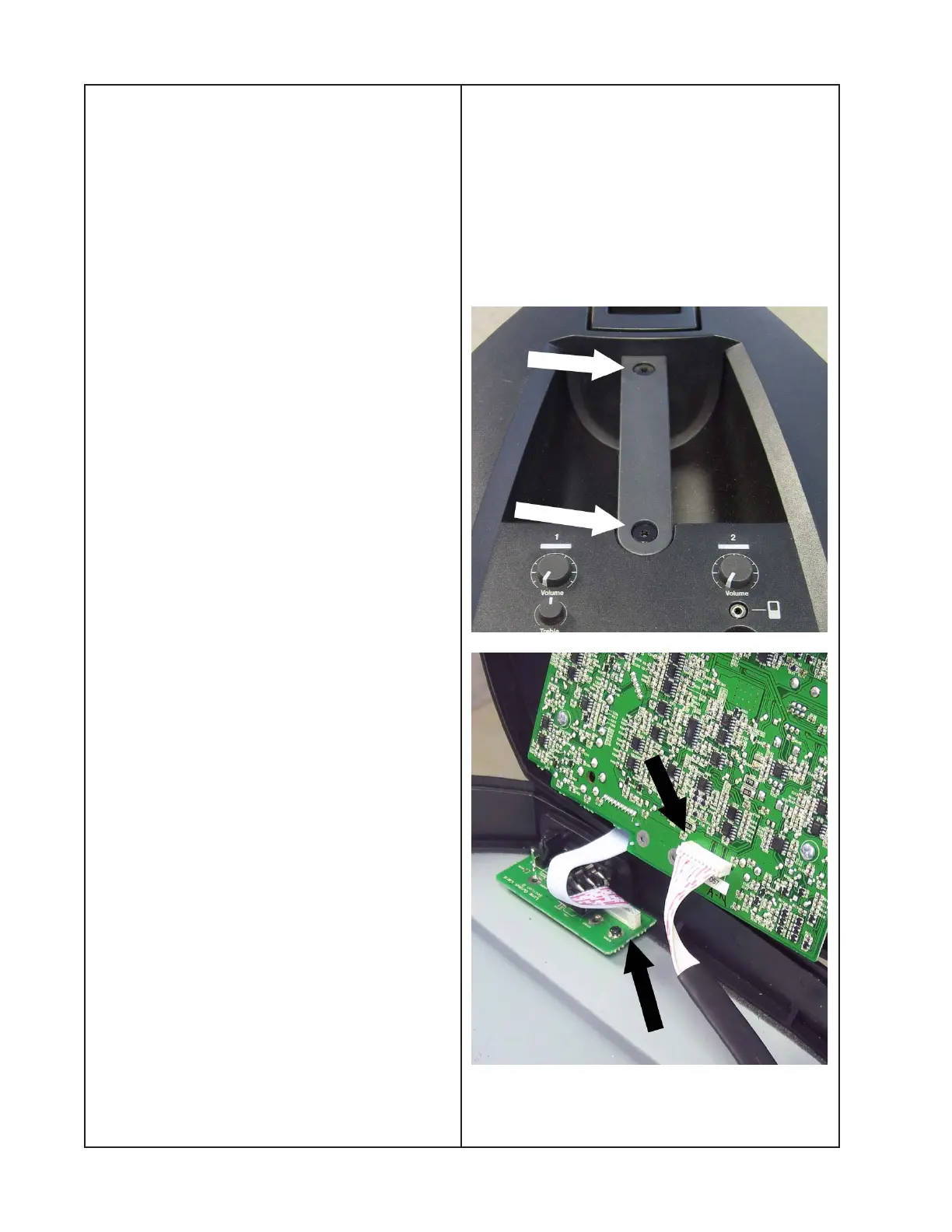

1. Top Cover Removal
1.1 Remove the two screws that secure the
Power Stand handle to the top cover. Lift off
the handle.
1.2 Lift up on the top cover. Unplug the two
cable harnesses from the I/O board at
connector CNxxx and from the line output
card at connector CN302B. Lift off the top
cover.
Re-assembly Note: Be sure the woofer
grilles are properly aligned into the front
groove of the top cover before re-installing
the handle.

Bose L1 Compact Specifications

General

Product color	Black
Recommended usage	Universal
Multi-Room Streaming (MRS) support	-
Number of drivers	6
Speaker placement	Stand-mountable
Audio output channels	- channels
RMS rated power	- W
AirPlay	No
Microphone in	Yes
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	425.45 mm
Width	336.55 mm
Height	1993.9 mm
Weight	13240 g
