Bose L1 Compact Service Manual

14
Main Part List
L1 Compact Array Extension Exploded View (see Figure 5)

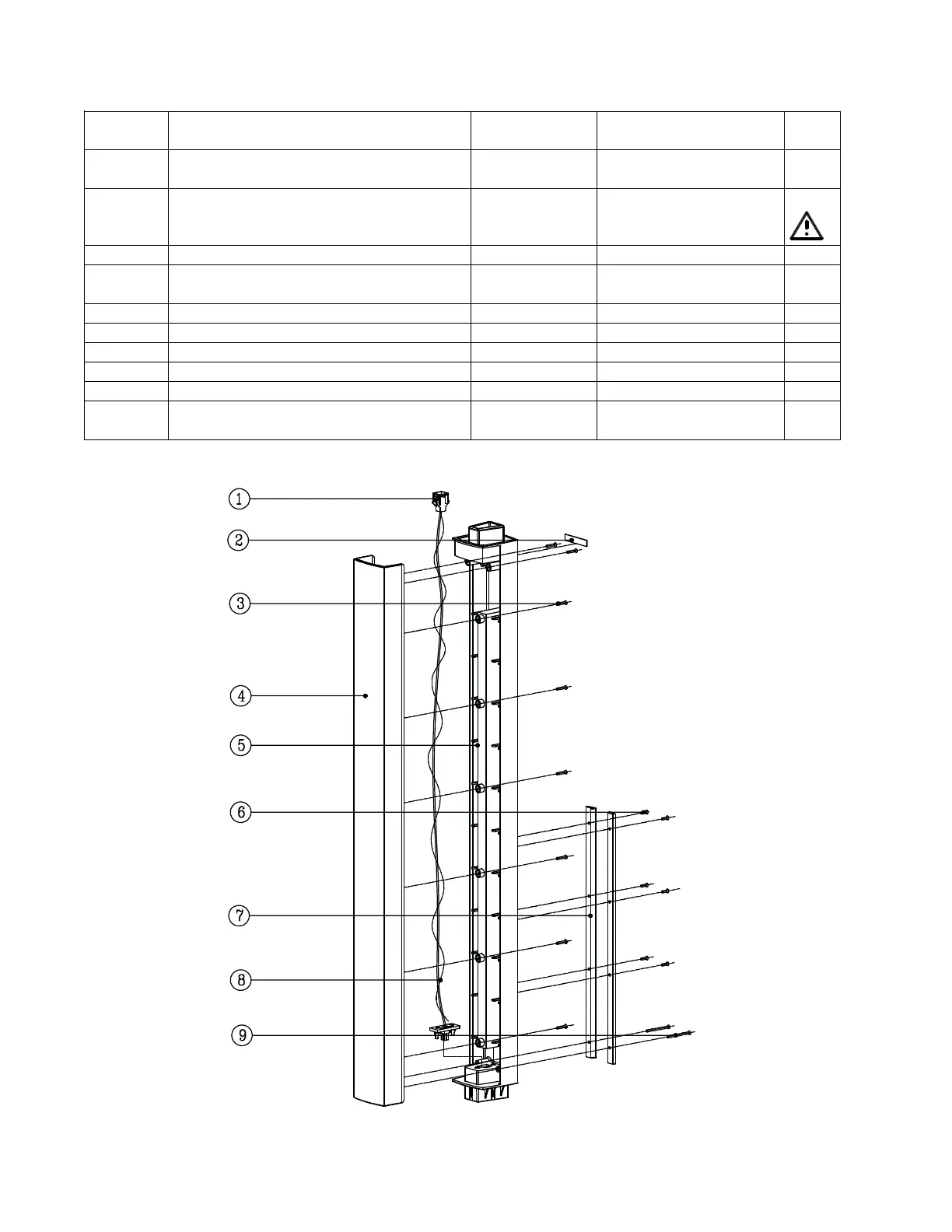

Figure 5. L1 Compact Array Extension Exploded View
Note: The array extensions are not repairable. The above parts are listed for reference only.
Item
Number
Description Bose
®
Part
Number
Vendor Part Number Note
- Array Extension, Complete Assembly,
Consists of below items
318881-010S svc-cajun11+exte
1 Wire, 2P, #20, UL2468, L=850
Red/Blk, Molex MDI
- 7013-0750+0 3, 4
2 Label, Serial Number, 30x7mm - - 4
3 Screw, B-tite, Flat-CS, M3x16, CS-
Recess, BZ
- 2951-3016+3000 4
4 Extension Front, ABS, Blk - 4155-3821+0 4
5 Extension Rear, ABS, Blk - 4155-3831+0 4
6 MS Screw, M3x12, CSH, BK - 2901-3012+3000 4
7 Guide Strip, POM, Blk - 4155-3861+0 4
8 Gasket - 4153-3431+0 4
9 Screw, Machine, Flat-CS, M3x40, CS-
Recess, BZ
- 2901-3040+3000 4

Bose L1 Compact Specifications

General

Product color	Black
Recommended usage	Universal
Multi-Room Streaming (MRS) support	-
Number of drivers	6
Speaker placement	Stand-mountable
Audio output channels	- channels
RMS rated power	- W
AirPlay	No
Microphone in	Yes
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	425.45 mm
Width	336.55 mm
Height	1993.9 mm
Weight	13240 g
