Bose L1 Compact Service Manual

13

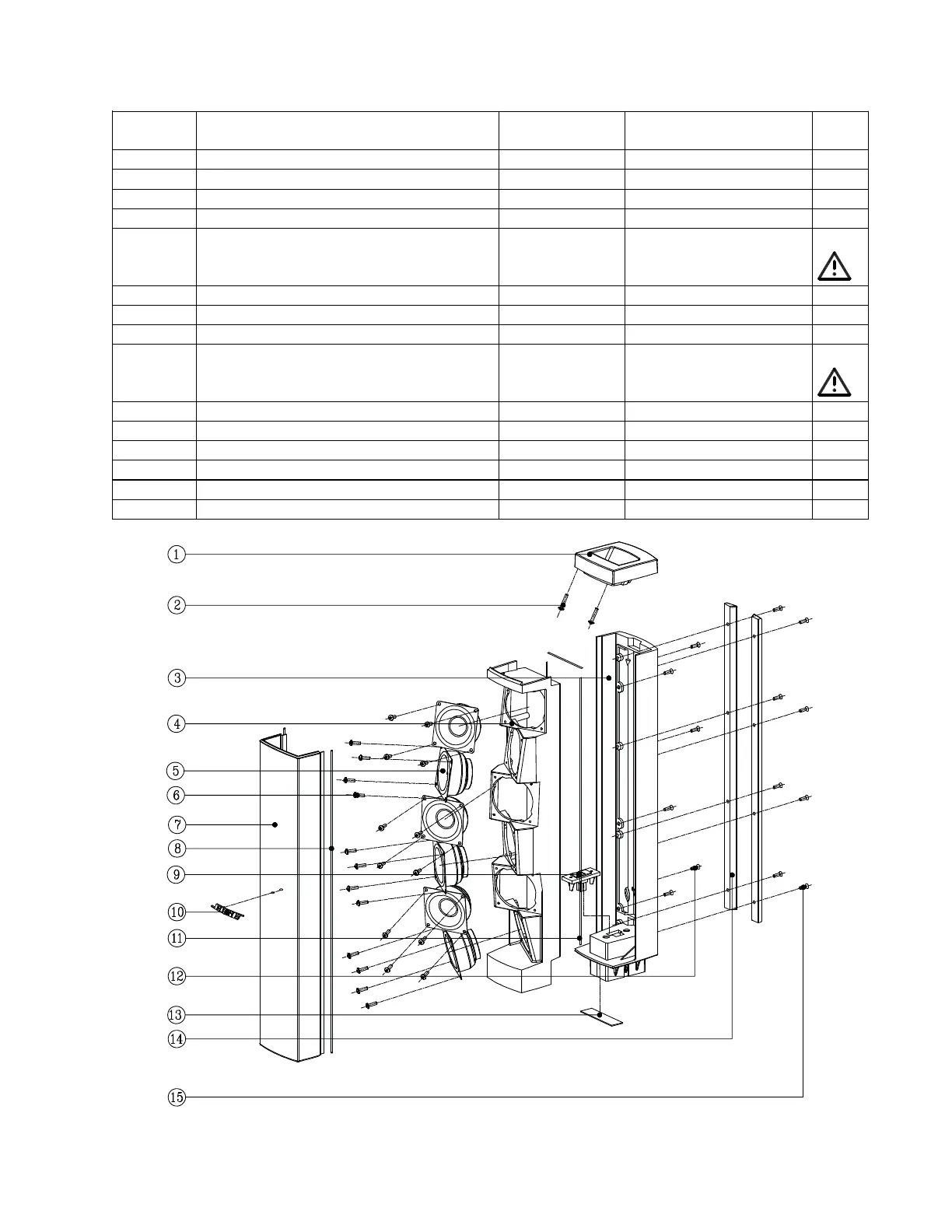

Figure 4. L1 Compact Array Speaker Exploded View
Main Part List
L1 Compact Array Speaker (see Figure 4)
Item
Number
Description Bose
®
Part
Number
Vendor Part Number Note
1 Handle, Array - 4155-3851+0 4
2 Screw, B-tite, Bind, M3x16, CS-Recess - 2954-3016+3000 4
3 Enclosure, Array, ABS - 4155-3801+0 4
4 Baffle, Array, ABS, Black - 4155-3791+0 4
5 Twiddler, 2.5 inch 291636-001 1525-2120+0 3
6 Screw, M3x10, BT, ZN, Blk - 2934-3010+3000 4
7 Grille, Array (W/Logo) 317365-010S svc-cajun01+gril
8 Butyl Tape - 9500-1101+0 4
9 Wire, Spk, 2P, #20, UL1007,
L=250/180, RD/BLK
- 7013-0760+0 3, 4
10 Array Logo 317407-010S 2150-7311+0
11 EVA Gasket, Baffle - 4149-1121+0 4
12 Screw, M3x13, 5.6MM, BK-ZN/CR HD - 2931-3013+3000 4
13 Label, Serial Number, 30x7mm - - 4
14 Guide Strip, Array 317366-010S 4155-3861+0
15 Screw, M3x12, CSH, BK - 2901-3012+3000 4
