Product Description
System configurations
You can set up the L1
®
Compact system in two unique positions. The examples below will help
you quickly identify the position that can
work best for you.
The L1 Compact Extensions are not re-
quired when using the L1 Compact Portable
Line Array System in the collapsed position.
They are included for situations where you
need to elevate the Loudspeaker Array to
project sound to larger audiences.

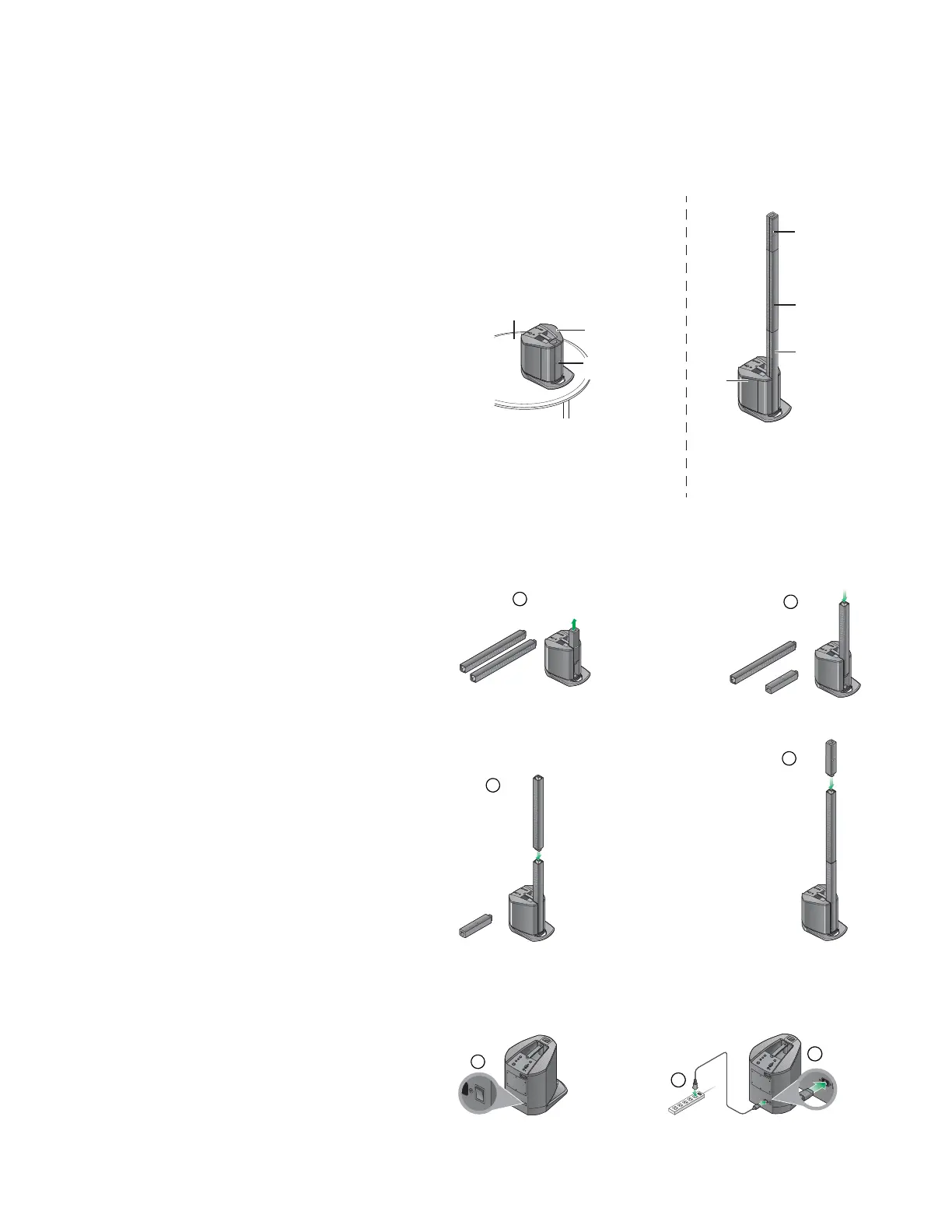

Extending the Loudspeaker Array
Once you have set the system in place:
1.Slide the Loudspeaker Array up and
out of the Power Stand and tempo-
rarily lay it aside.
Note: The two L1 Compact Exten-
sions are identical to each other.
2.Align the plug on the bottom of the
Extension with the socket on the
Power Stand, then slide the extension
into the power stand.
3.Align the remaining Extension and
push it firmly in place.
4.Align the Loudspeaker Array and
push it firmly in place.
Connecting power to the system
1.Make sure the power switch is off
(down position).
2.Plug one end of the power cord into
the connector on the power stand.
3.Plug the other end into a live electri-
cal receptacle.
4.Before turning the system on,
connect your sound sources.
Smaller audiences
• Intimate acoustic performances
• Music playback
• Presentations
• Speeches
Larger audiences
•Musical pe
rformances
–
auditorium/coeehouse
• DJ events
• Announcements
– larger spaces
Collapsed position
Loudspeaker
Power
Extended position
Power Stand
Array
Extension
Extension
Stand
Ta b l e t o p
Array
Loudspeaker
1
2
3
4
1
2
3

Bose L1 Compact Specifications

General

Product color	Black
Recommended usage	Universal
Multi-Room Streaming (MRS) support	-
Number of drivers	6
Speaker placement	Stand-mountable
Audio output channels	- channels
RMS rated power	- W
AirPlay	No
Microphone in	Yes
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	425.45 mm
Width	336.55 mm
Height	1993.9 mm
Weight	13240 g
