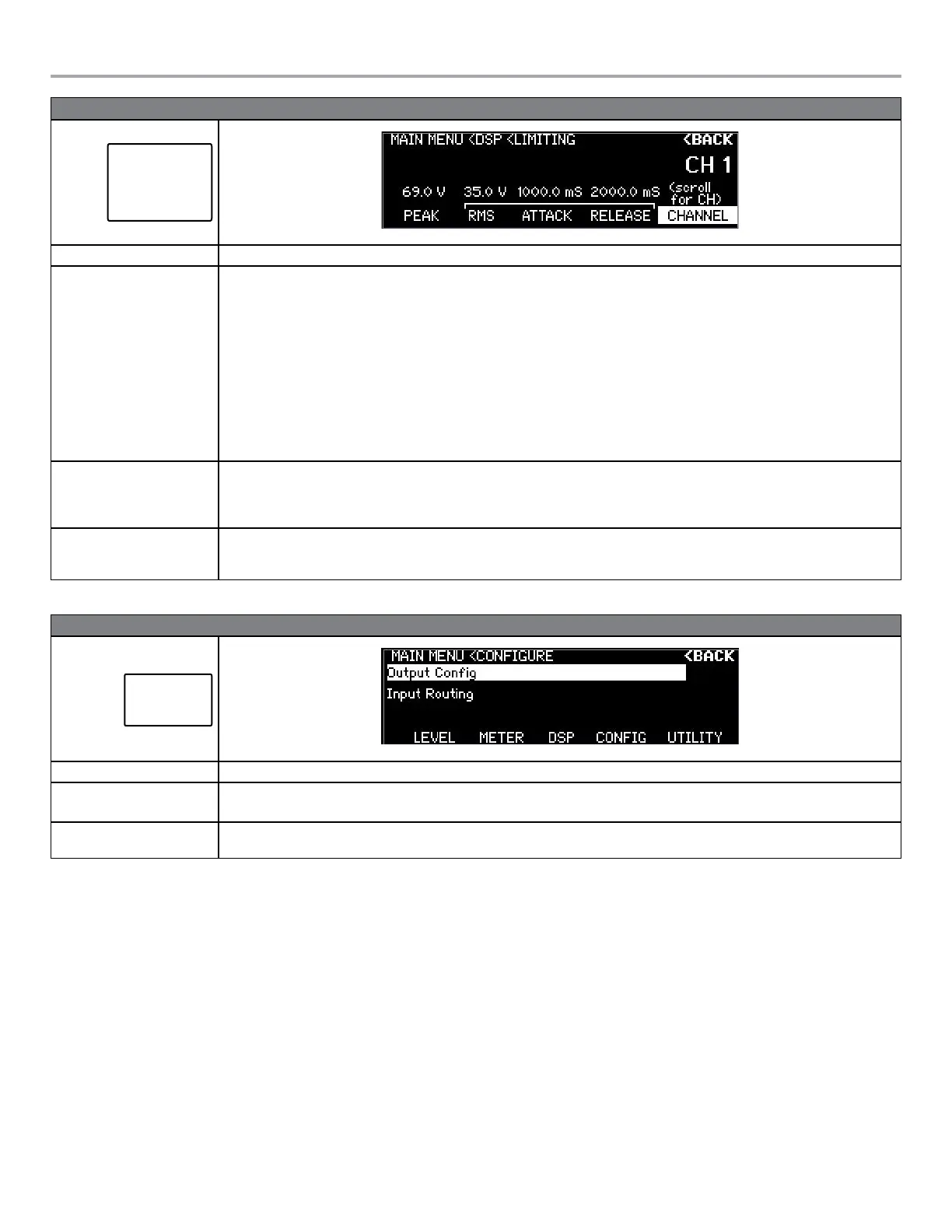

MAIN MENU < DSP < LIMITING
DSP
Speaker Presets
Array EQ
Delay
Limiting
Description This display allows you to adjust limiting parameters that allow for loudspeaker driver protection for each output channel.
Available Controls To access Limiting, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to DSP menu.
Menu Soft Key #5: Enables the selection of the output channel (or output groupings) using the rotary encoder dial.
Menu Soft Key #1: Enables the selection of a peak voltage value, which corresponds to the maximum voltage that may be applied to the driver
without causing over-excursion. Use the rotary encoder to adjust the selected parameter.
Menu Soft Key #2: Enables the selection of an RMS voltage threshold value, which works in conjunction with the subsequent attack and release
values. The RMS voltage setting corresponds to the long-term power handling capability of the loudspeaker. Use the rotary encoder to adjust the
selected parameter.
Menu Soft Key #3: Enables the selection of attack time, in milliseconds, related to the RMS limiter. Use the rotary encoder to adjust the selected
parameter.
Menu Soft Key #4: Enables the selection of release time, in milliseconds, related to the RMS limiter. Use the rotary encoder to adjust the selected
parameter.
Options PEAK: 0.5 to 200 Volts (dependant on output mode), 0.5 V increments
RMS: 0.5 to 100 Volts (dependant on output mode), 0.5 V increments
ATTACK: From 500 to 10,000 milliseconds
RELEASE: From 500 to 10,000 milliseconds
Notes Values are automatically applied for Bose
®
loudspeakers set in MAIN MENU < DSP < SPEAKER PRESETS.
For non-Bose loudspeakers, refer to manufacturer technical specifications for information to properly configure the limiter.
See “Setting the Limiting Function for use with 3rd Party Loudspeakers” on page 33 for further details.
MAIN MENU < CONFIGURE
CONFIG
Output Config
Input Routing
Description The CONFIGURE menu allows you to access the configuration of input and output signals for a particular system design.
Available Controls Navigation Soft Key: Return back to MAIN MENU.
Menu Soft Key #1-5: Changes menu to respective category.
Options Output Config
Input Routing
➞
➞

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
