Bose PowerMatch PM8500 User Manual

English User Guide Page 29
pro.Bose.com User Guide

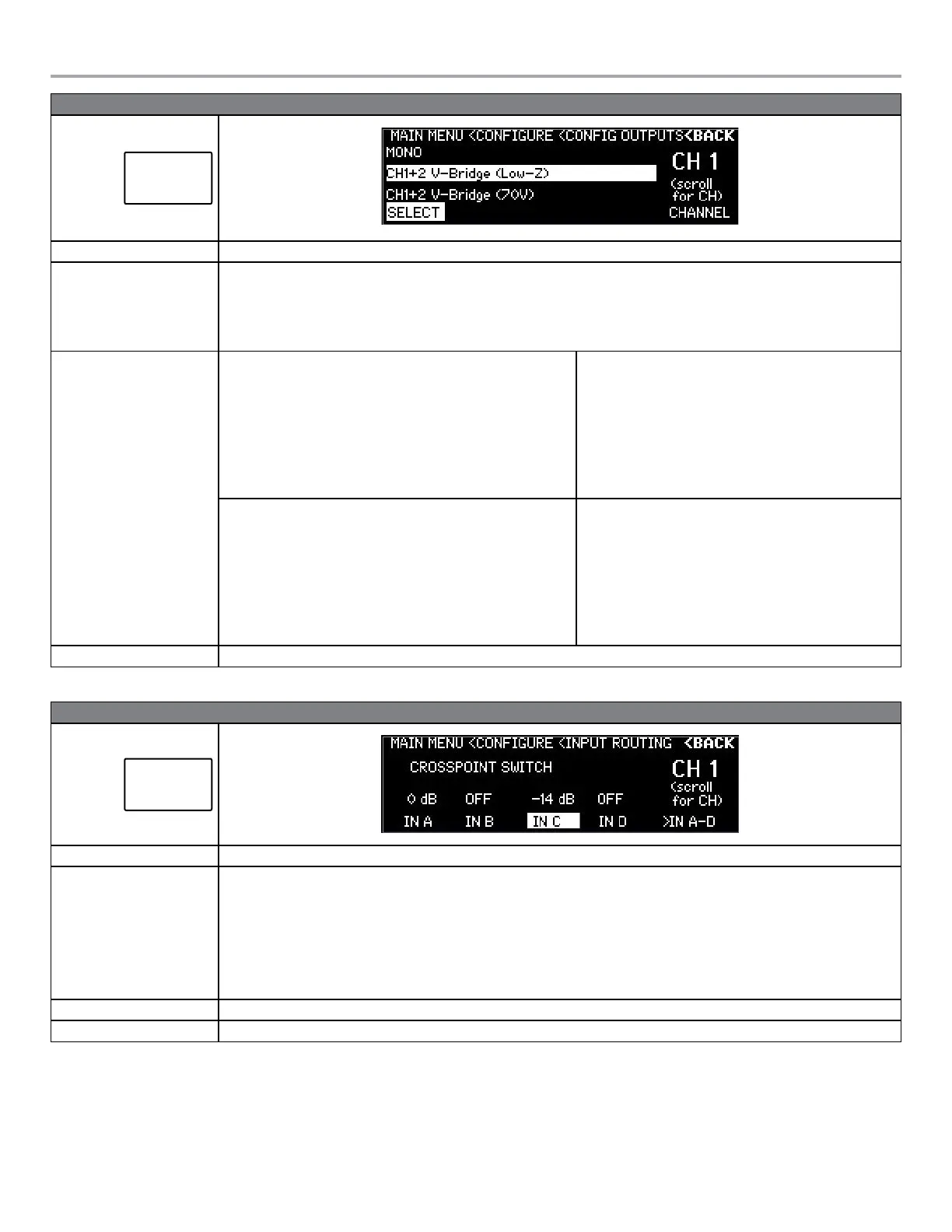

MAIN MENU < CONFIGURE < CONFIG OUTPUTS
CONFIG
Output Config
Input Routing
Description This display allows you to configure the output section of the amplifier for various output modes.
Available Controls To access Output Configuration, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to CONFIG menu.
Menu Soft Key #5: Enables the selection of the output channel (or output groupings) using the rotary encoder dial.
Menu Soft Key #1: Enables the selection of an output configuration for the displayed output channel. Use the rotary encoder to adjust
the selected parameter. Once the desired mode is highlighted, press the rotary encoder to select.
Options For Channels 1 and 2
MONO
Ch1+2 V-Bridge (Low-Z)
Ch1+2 V-Bridge (70V)
Ch1+2 V-Bridge (100V)
Ch1+2 I-Share (Low-V)
Ch1+2+3+4 Quad (Low-Z)
Ch1+2+3+4 Quad (70 V)
Ch1+2+3+4 Quad (100 V)
For Channels 3 and 4
MONO
Ch3+4 V-Bridge (Low-Z)
Ch3+4 V-Bridge (70V)
Ch3+4 V-Bridge (100V)
Ch3+4 I-Share (Low-V)
Ch1+2+3+4 Quad (Low-Z)
Ch1+2+3+4 Quad (70 V)
Ch1+2+3+4 Quad (100 V)
For Channels 5 and 6
MONO
Ch5+6 V-Bridge (Low-Z)
Ch5+6 V-Bridge (70V)
Ch5+6 V-Bridge (100V)
Ch5+6 I-Share (Low-V)
Ch5+6+7+8 Quad (Low-Z)
Ch5+6+7+8 Quad (70 V)
Ch5+6+7+8 Quad (100 V)
For Channels 7 and 8
MONO
Ch7+8 V-Bridge (Low-Z)
Ch7+8 V-Bridge (70V)
Ch7+8 V-Bridge (100V)
Ch7+8 I-Share (Low-V)
Ch5+6+7+8 Quad (Low-Z)
Ch5+6+7+8 Quad (70 V)
Ch5+6+7+8 Quad (100 V)
Notes Selection of channels 1-4 and 5-8 will display modes that offer possible combined channels available only to those respective channels.
MAIN MENU < CONFIG < INPUT ROUTING
CONFIG
Output Config
Input Routing
Description This display allows you to assign a mix of input signals to each of the output channels.
Available Controls To access Input Routing, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to CONFIG menu.
Rotary Encoder: Scrolls through output channels.
Menu Soft Key #5: Enables the selection of two input channels pages. Use the rotary encoder dial to toggle between input channel groupings A-D
or E-H.
Menu Soft Key #1-4: Enables the selection of one of the displayed input channels. A second press of the soft key will toggle between states “OFF”
and a user-adjustable gain value. Once an input channel is highlighted and showing a gain value, use the rotary encoder wheel to dial the desired
amount of signal to be applied to the displayed channel.
Options OFF, -60dB to 0dB in 1dB increments
Notes Bose suggests that you first configure output modes (MAIN MENU < CONFIG < OUTPUT CONFIG) before performing input routing.
➞
➞

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
